SKU: HY-SPKP-100W20A

ACOPOWER 100W 12V Poly Solar RV Kits, 20A PWM Charge Controller

Wellbots
$169.90
$169.90
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

ACOPOWER 100W 12V Poly Solar RV Kits, 20A PWM Charge Controller

This cost-effective and user-friendly kit is designed for straightforward installation, equipped with 1 100W solar panels, a 20A charge controller, and essential wiring. It's an ideal solution to power your RV, boat, camper, and various outdoor appliances, providing a reliable energy source for remote structures. The kit also includes mounting accessories for added convenience. Experience the freedom of sustainable energy on your adventures.

ACOPower 100W 12V Polycrystalline Solar Panel

Tailored for home, RV, van life, and various applications, this solar panel is a reliable source for charging 12-volt batteries and portable power stations. Engineered for easy installation on structures or vehicles, the panel boasts a durable construction featuring tempered glass with an anti-reflective coating, two layers of EVA film, a TPT backsheet, and an anodized aluminum frame designed to withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The rear junction box ensures water resistance with an IP65 rating. Equipped with a 3.2-foot, 16 AWG cable with male and female quick connectors, this solar panel is ready to harness renewable energy efficiently.

ACOPower 60A MPPT Solar Charge Controller

Maximize the potential of your solar panels with the ACOPower 20A MPPT Solar Charge Controller. This advanced controller allows you to safely and efficiently recharge 12, 24, 36, or 48V batteries, catering to a range of power needs. With a negative-ground configuration, the controller achieves an impressive tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types, including flooded, sealed, gel, and li-ion batteries, it offers versatility in energy storage.

The user-friendly design of this plug-and-play controller simplifies the solar charging process. It automatically detects the solar panel voltage and employs bulk, boost, float, and equalization charging modes to optimize the battery charging cycle. Whether you are powering your RV, cabin, or off-grid system, the ACOPower 20A MPPT Solar Charge Controller ensures a seamless and effective solar energy utilization experience.

Features:

  • Easy installation
  • Height Efficiency
  • MPPT Technology
  • Green Solar System
  • Common Negative grounding design
  • Warranty
  • Multiple packages

Specifications:

100W Poly Solar Panel

Peak Power (Pmax):100W
Peak Circuit Voltage(Voc):22V
Max Power Voltage(Vmp):17.48V
Short Circuit Current(Isc): 6.21A
Max Power Current(Imp):5.72A
Wind resistance: 2400pa
Weight: 17.6 lb
Dimension:40.2*26.4*1.4 inches (1020x670x35mm)
Application Class: Class A

20A PWM Charge Controller

Nominal Voltage: 12 V/ 24V DC
Rated Charge Current: 20A
Max. PV Input Voltage: 50V
Battery Start Charging Voltage: 3V
Temperature Compensation Coefficient: -24mV/°C
Operating Temperature: -40°F to 140°F
Storage Temperature: -40°F to 185°F
IP Enclosure Grade: IP65
Dimensions: 5.59x 3.7x 1.06 inches

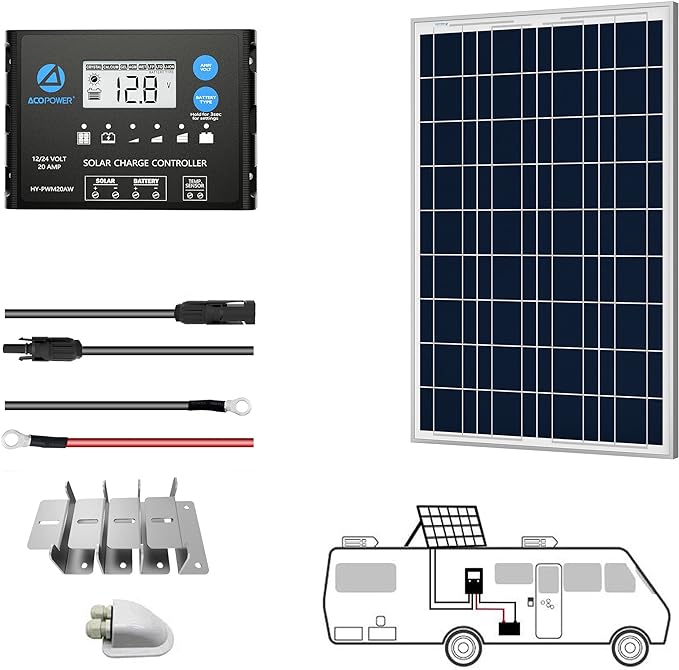

What's in the Box:

  • 1 x 100W Polycrystalline Solar Panel
  • 1 x  20A PWM Charge Controller
  • 2  x Sets Mounting Z Bracket
  • 1 x  30ft 12AWG PV Cable
  • 1 x  8FT 8AWG Tray Cable
  • 1 x  Cable Entry Housing
  • 1 x Pair PV T/Y Connectors
