Acopower Mono Modules 10W

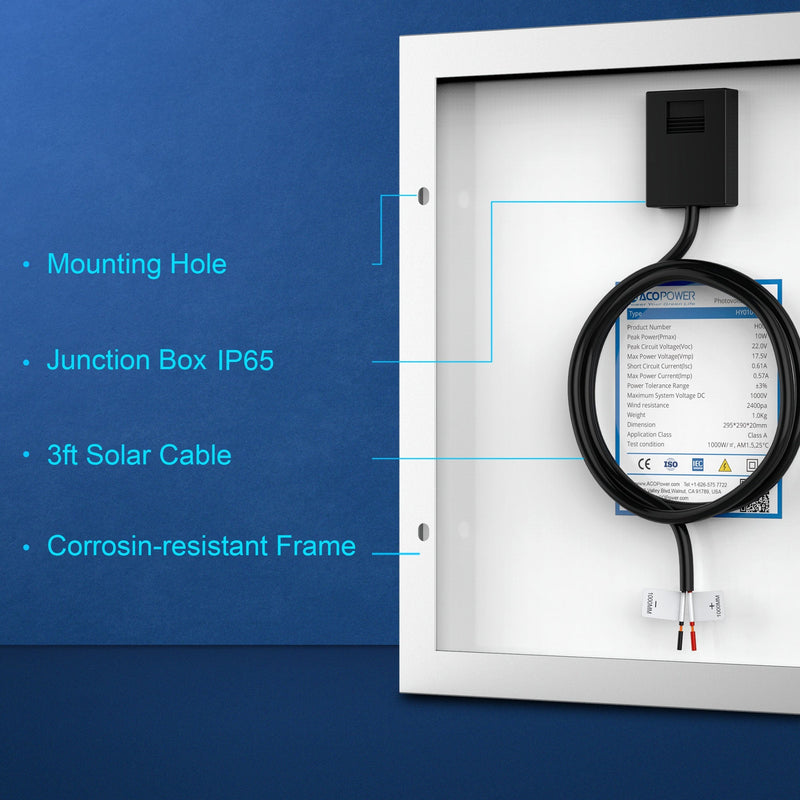

Tap into nature's most powerful energy source with Acopower Mono Modules 10W, a 10W monocrystalline photovoltaic PV solar panel module to charge your 12V battery. Complex engineering simplified for solar newbies, this ready-to-use panel comes with pre-drilled holes for easy installation.

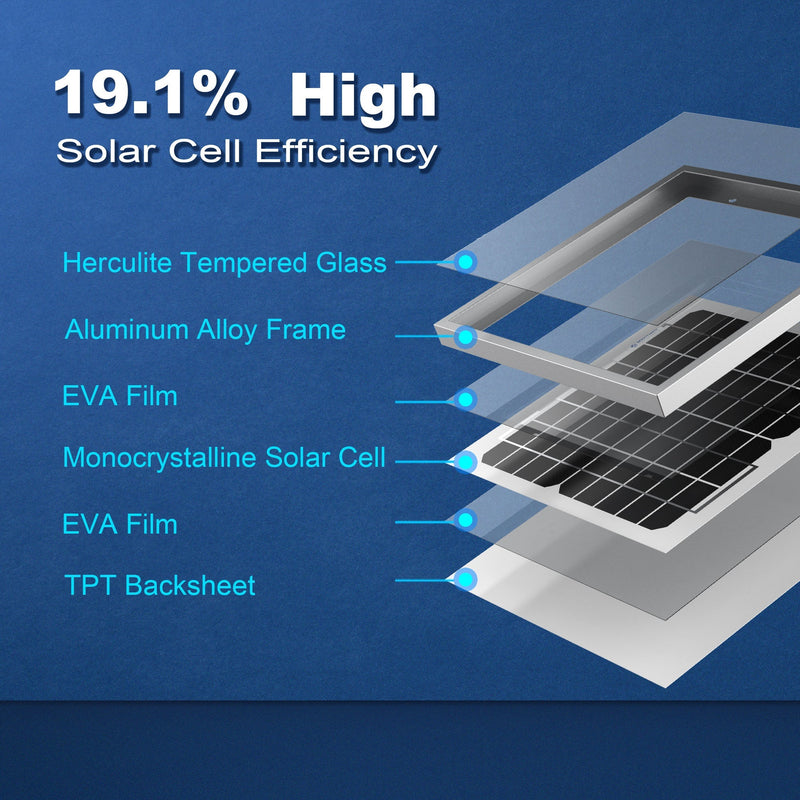

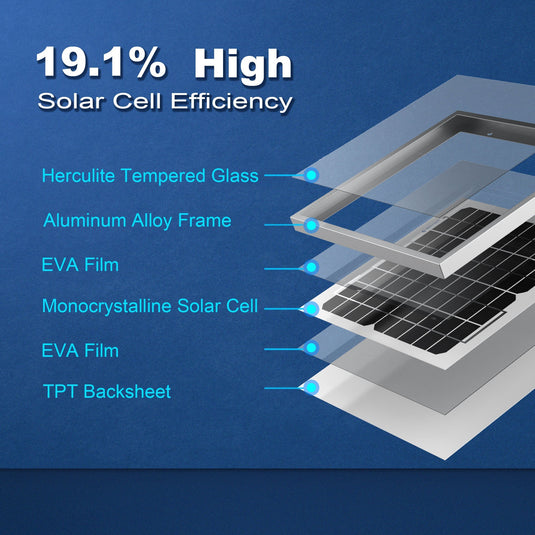

Enjoy 10W of continuous power with the high module conversion efficiency of 10W mono solar panel. This basic component for your 12V/24V/36V/48V solar system is perfected for RVs, cabins, boats, caravans, green house solar system and every other off-grid application you can every fantasize.
Specifications:
Peak Power (Pmax):10W
Short Circuit Current (Isc): 0.62A
Open circuit voltage (Voc): 21.88V
Optimum operating current (Imp): 0.57A
Optimum power voltage (Vmp): 17.5V
Weight: 2.6 lbs

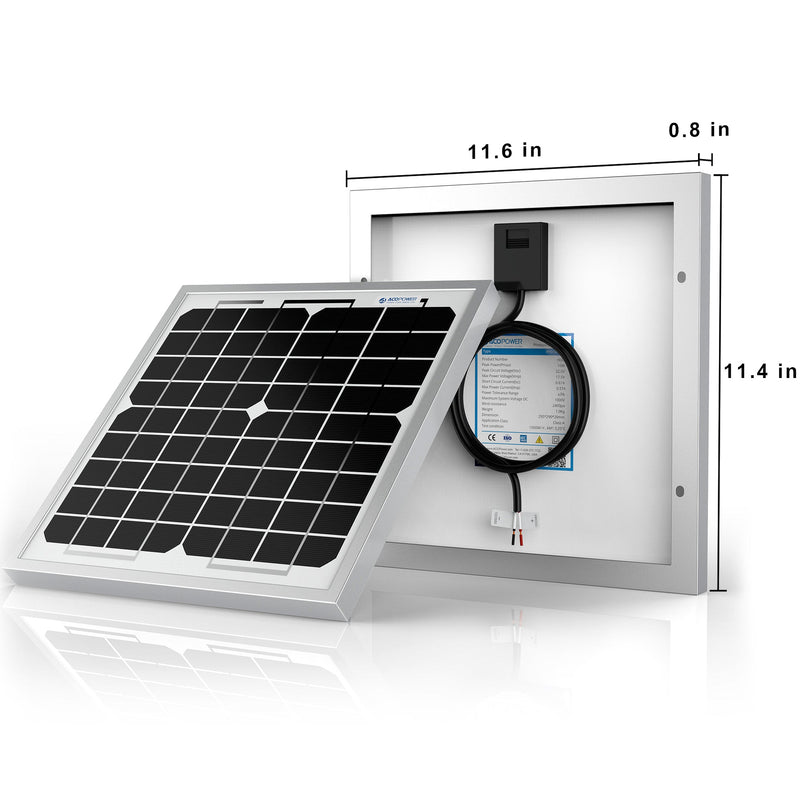

Dimensions: 11.6 x 11.4 x 0.8 in
All technical data at STC test condition: 1000W/m, Am=1.5, Module temperature 25℃
Power Tolerance Range: ±3%
Maximum System Voltage DC: 1000V
Wind resistance: 2400Pa
What's in the Box:
1 x 10W Monocrystalline Photovoltaic Solar Panel
1 x User Manual
