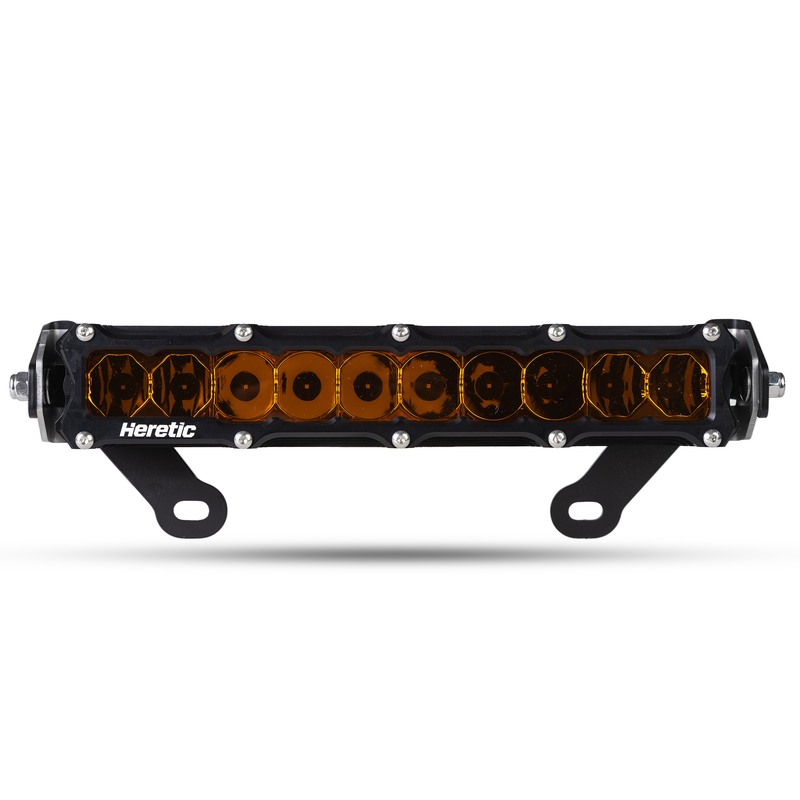

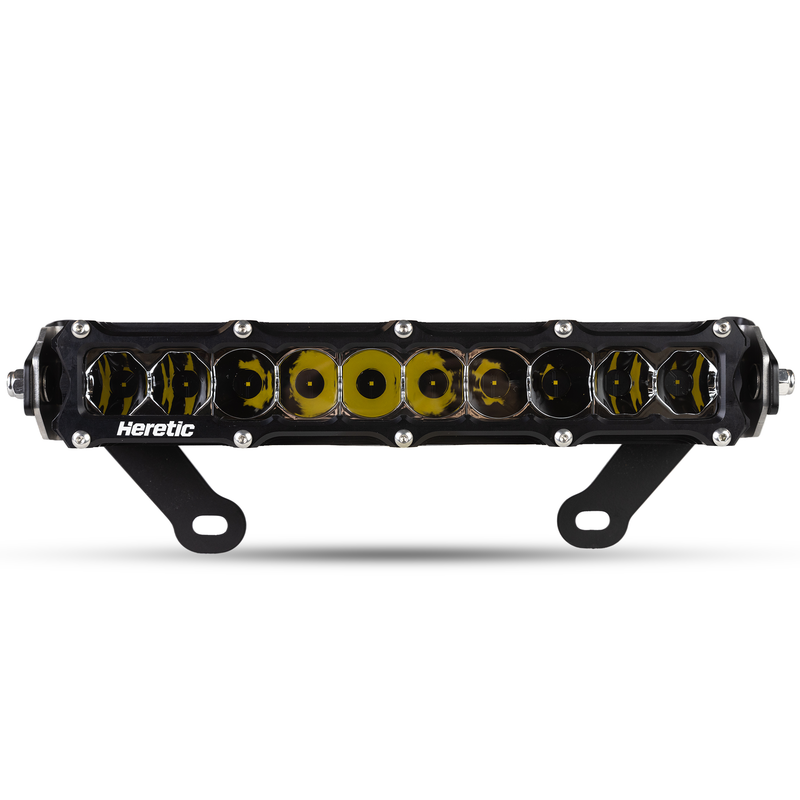

Can-Am Maverick X3 10 Inch Shock Tower LED Light Bar

Overview

The Heretic Can Am Maverick X3 10 Inch Shock Tower Light Bar takes our staple 10-inch LED Light Bar and utilizes our in-house designed mounts, custom built for the Can Am Maverick X3. They are Designed, Assembled, Supported, and Shipped in Centerville, Utah. This LED light bar is housed in CNC aircraft-grade aluminum and features the highest quality CREE LEDs. The clear lens allows for increased ability to navigate in clear night conditions on your UTV trips. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo.

Features

• (1) Can Am Maverick X3 Shock Tower 10 Inch Light Bar
• Powder Coated Stainless Steel Mounting Brackets
• Mounting Hardware
• USA Patented 6061 CNC Aluminum Grade Billet Housing
• (10) 6-Watt CREE LED

UTV Trim Compatibility

Can Am Maverick X3 UTV

Parts Sold Separately

• Wire Harness

Details/ Specs

• Shipping Weight: 4lbs
• Type: 10” LED Light Bar
• Housing: CNC Aircraft-Grade Aluminum
• Location: Roof, Bumper, Grille, Rack
• Light Color: White Lens Color: Clear
• Wattage: 60W
• Amp Draw at 13.8V: 5.3A
• Voltage: 9V-36V
• IP Rating: IP68
• DIM (Light Only): L 11” x D 1.5” x H 2”
• DIM (Light W/ Bracket): L 12” x D 1.5” x H “2.4
• Lumens: 7260 lm
• Lux At 10m:
  • Spot: 2063 lx
  • Flood: 439 lx
  • Combo: 1413 lx

  Candela:

  • Spot: 206250 cd
  • Flood: 43875 cd
  • Combo: 141300 cd

  Beam Distance:

  • Spot: 908 m
  • Flood: 419 m
  • Combo: 752 m

  DOT Compliant: No

  Prop 65: No

  SAE/ECE: No

Installation Guide

Click to View: Maverick X3 Shock Tower 10in Bar Install Video
