SKU: ICS-10TERBUS-0094-01

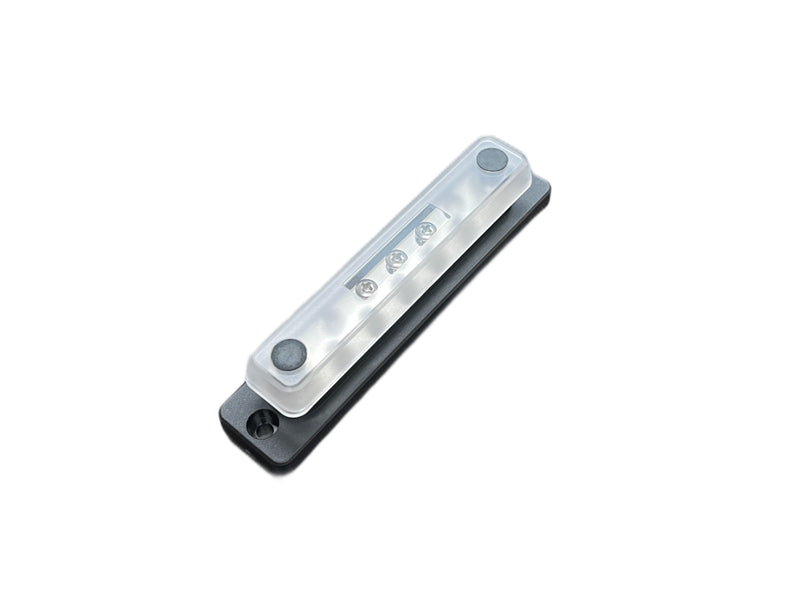

10 Terminal Bus Bar

Name: 10 Terminal Bus Bar
Brand: ICS FAB
SKU: ICS-10TERBUS-0094-01
Price: 25.0 USD
Availability: InStock

$25.00 USD

Sale Sold out

Shipping calculated at checkout.

Pay in 4 interest-free payments with Afterpay Ships from trusted U.S. suppliers

Quantity must be 1 or more

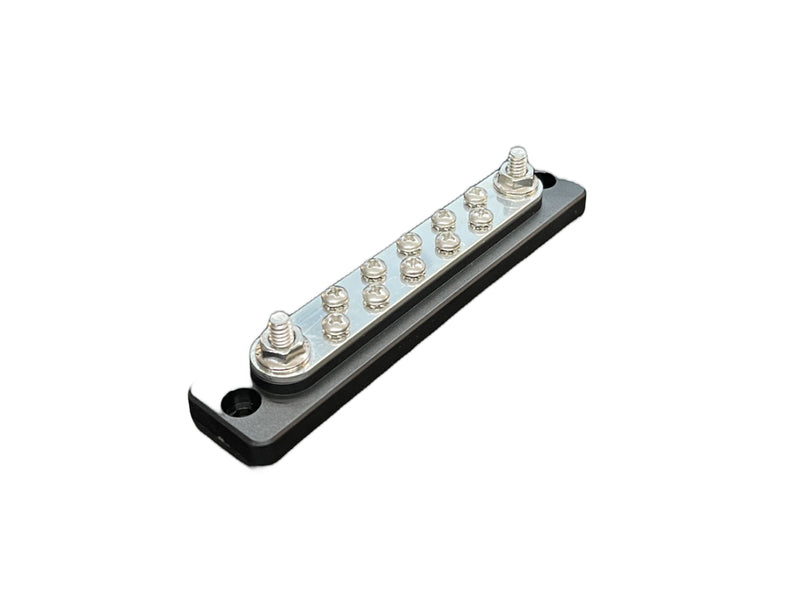

Rated to 100 Amps and works great for all types of power and ground distribution

Includes 10 #8-32 Stainless Steel Terminals and Two 1/4" Stainless Steel Studs

High quality Tin-Plated copper bus and plastic cover provides excellent resistance to harsh environment

Great for any 12 volt application

Specifications
Maximum Voltage	300V AC 48V DC
Number of Screw Terminals	10
Number of Terminal Studs	2
Terminal Type	1/4" Stud #8-32 Screw
Continuous Rating	130A AC 150A DC
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper CDA 110 / UNS 11000
Screw Terminal Torque	15 in-lb (1.69 Nm)
Stud Torque	60 in-lb (6.78 Nm)
Weight	0.34Lb (0.15 Kg)
Weight	0.34lb (0.15 kg)
