SKU: ICS-5TERBUS-0093-01

5 Terminal Bus Bar

Name: 5 Terminal Bus Bar
Brand: ICS FAB
SKU: ICS-5TERBUS-0093-01
Price: 20.0 USD
Availability: InStock

$20.00 USD

Sale Sold out

Shipping calculated at checkout.

Pay in 4 interest-free payments with Afterpay Ships from trusted U.S. suppliers

Quantity must be 1 or more

Rated to 100 Amps and works great for all types of power and ground distribution

Includes Five #8-32 Stainless Steel Terminals and Two 10/32 Stainless Steel Studs

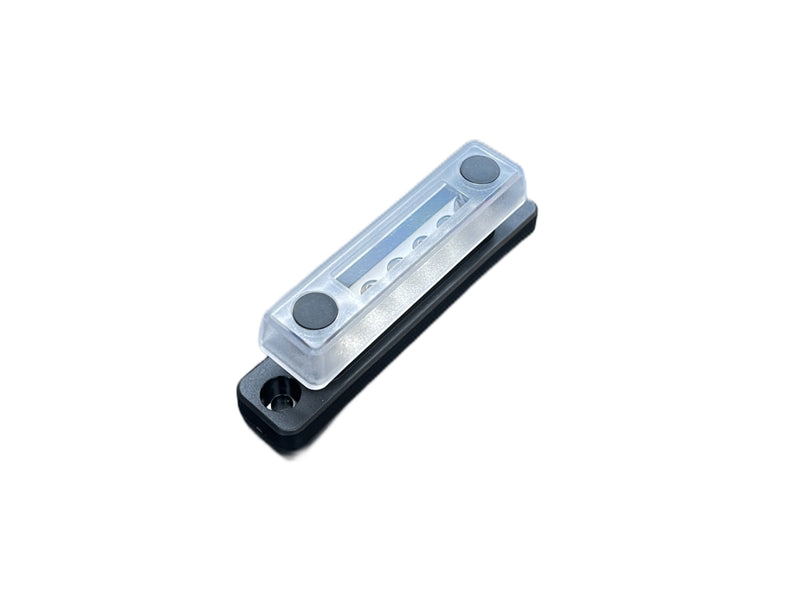

High quality Tin-Plated copper bus and plastic cover provides excellent resistance to harsh environment

Great for any 12 volt application

Specifications
Maximum Voltage	300V AC 48V DC
Number of Screw Terminals	5
Number of Terminal Studs	2
Terminal Type	#10-32 Stud #8-32 Screw
Continuous Rating	100A
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper CDA 110/ UNS11000
Screw Terminal Torque	15 in-lb (1.69 Nm)
Stud Torque	18 in-lb (2.03 Nm)
Weight	0.15Lb (0.07 Kg)
Weight	0.16lb (0.07 kg)
