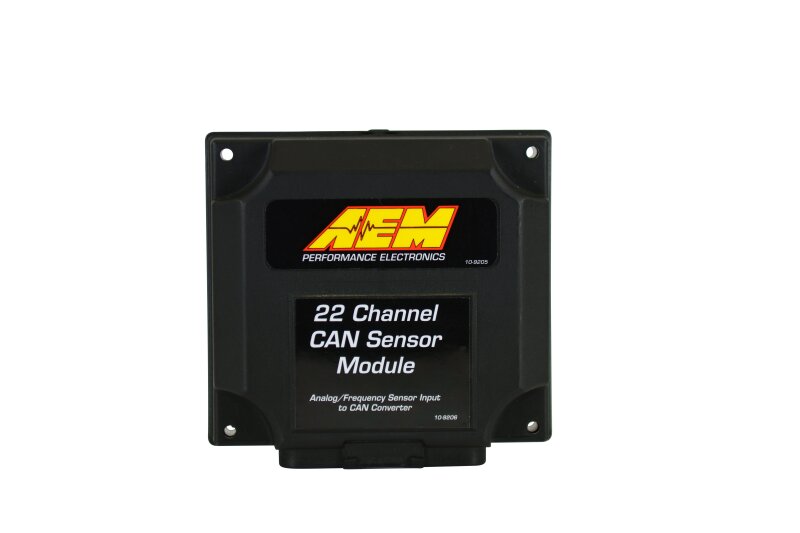

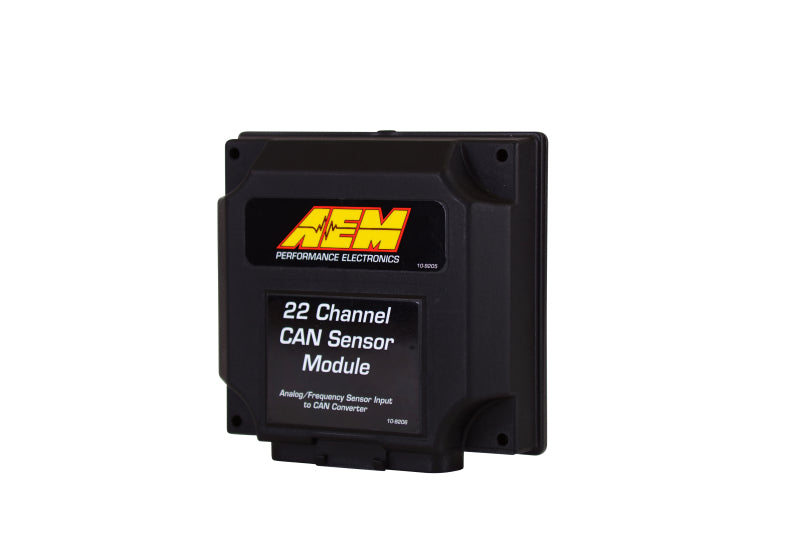

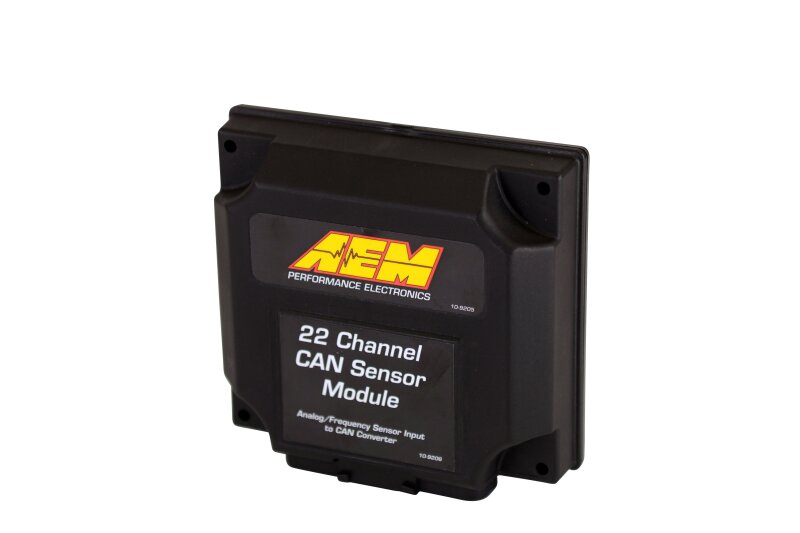

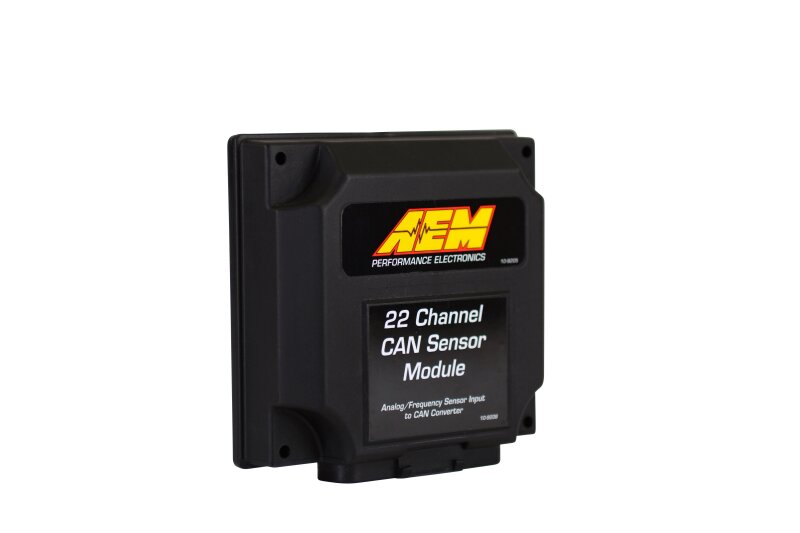

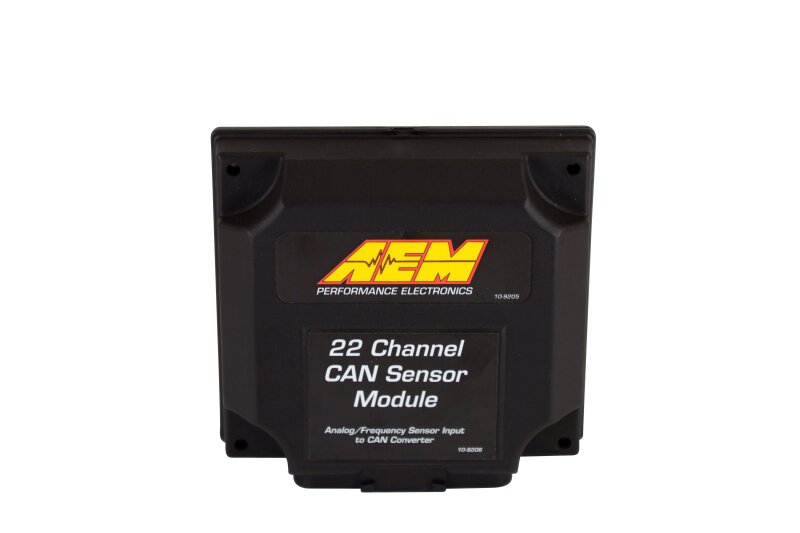

AEM Electronics 22 Channel CAN Sensor Module

Name: AEM Electronics 22 Channel CAN Sensor Module
Brand: FR SPORT
SKU: 1E1X3
Price: 413.95 USD
Availability: InStock

FR SPORT

$413.95

$413.95 ~~$465.95~~

Sale Sold out

Shipping calculated at checkout.

Quantity must be 1 or more

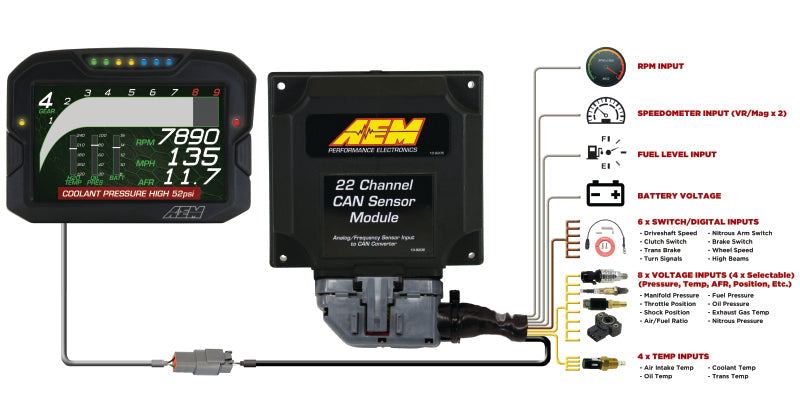

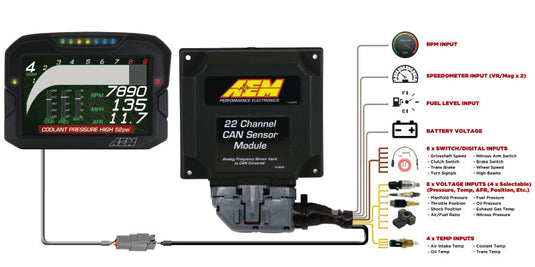

Convert analog, digital and frequency-based inputs to AEMnet CAN bus for display on CD-5 Carbon and CD-7 Dashes!
Perfect for users with carbureted vehicles who want to add a CD Dash display
Ideal for EFI users who want to add more channels to a CD Dash without purchasing multiple CAN-based devices
Daisy chain two Modules together for additional channels
IP65-rated enclosure is 'dust tight' and water resistant

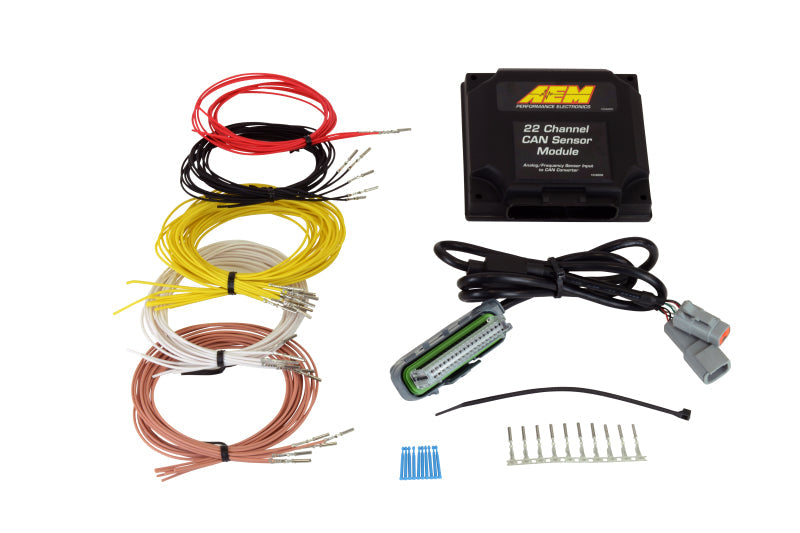

Wiring harness included with 36-inch flying leads and pre-wired CAN cable
Four Dedicated 0-5V analog inputs
Four Temperature (thermistor) inputs
Four User configurable analog inputs, (jumper selectable; 0-5v, thermistor, or RTD)
One dedicated fuel level input (0 to 250 ohm range)
Six Digital Inputs, active low, protected to ~18v, frequency, duty cycle or simple switch
One Tach Input, trigger when low, 12v internal Pull Up
Two VR pair frequency inputs (crank, wheel or drive shaft speeds)
Jumper selectable CAN bus speeds, 250k,500k,1M
Jumper selectable terminating resistor
Jumper selectable header length, 11bit or 29 bit
Dimensions: 4.7" L x 4.3" W x 1.4" H (not including connector)
Weight: 6.4oz / 180g
