Aftermarket Assassins Custom Cut Helix for 2016-22 RZR XP Turbo / Turbo S / RS1

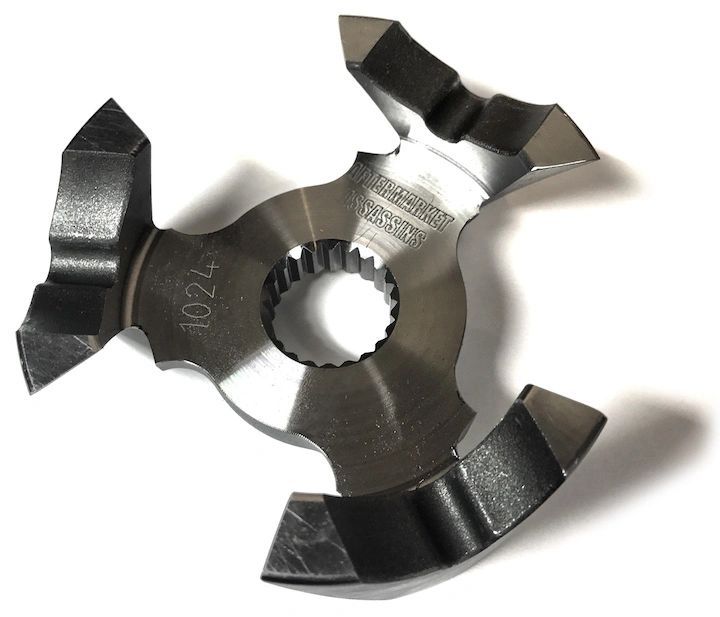

Load image into Gallery viewer, Aftermarket Assassins Custom Cut Helix for 2016-22 RZR XP Turbo / Turbo S / RS1

SKU: 107-1024

Aftermarket Assassins Custom Cut Helix for 2016-22 RZR XP Turbo / Turbo S / RS1

Name: Aftermarket Assassins Custom Cut Helix for 2016-22 RZR XP Turbo / Turbo S / RS1
Brand: Rugged Terrain
SKU: 107-1024
Price: 150.0 USD
Availability: InStock

$150.00 USD

Sale Sold out

Shipping calculated at checkout.

Pay in 4 interest-free payments with Afterpay Ships from trusted U.S. suppliers

1024 AA Performance Helix Sold out

1031 AA Performance Helix Sold out

1021 AA High Load Helix Sold out

2016 XPT

2017-19 64" Wide XPT Sold out

RS1

Turbo S 72" Wide Sold out

Quantity must be 1 or more

Aftermarket Assassins Custom Cut Helix | 2016-22 RZR XP Turbo / Turbo S / RS1

AA's custom cut helix for the 2016-2020 RZR XP Turbo & Turbo S, 2018-22 RS1
Does not fit 2021-up turbo models or any year Pro XP
Purchase this if you already have our clutch kit, or if you have another brand clutch kit. Keep in mind clutch weight adjustments will be made depending on helix choice. It is best to use only our helixes with our clutch kit and proper setup guideline for that helix.
2016 models will require upgrading to the 2017 helix buttons
Our performance custom cut helix which will give you better power to the wheels on 2017-Up models because of the steeper angle. On 2016 models you will see quicker RPM climb into peak power, and better belt life. All models will see a more consistent RPM sweep. Factory helixes start off steep, then go shallower on the top end. For turbo machines, this is completely backwards. We run a straight angle as changing the load on a heavy machine in the middle of a shift can cause some issues. Basically, 2016 helixes were too steep and therefor had belt issues, 2017+ helixes went MUCH shallower and the performance to the wheels suffers. We found just the right angle to make everything happy with great belt life and great performance.
This will come with our S3 clutch setup instructions. If using another brand clutch kit, drop roughly 3 grams of primary clutch weight on a 2017-Up model, and add roughly 3 grams on a 2016 model.
1031 Performance Helix Use:
- Turbo S 72" wide: 30-33" tires or paddles
- RS1: 28"-32" Tires
- 2016 RZR Turbo: 29-32" Tires
1024 Performance Helix Use:
- 2017-19 XPT 64" Wide 2 Seat: 28-32" Tires
- 2017-19 XPT 64" Wide 4 Seat: 29-30" Tires
1021 High Load Helix Use:
- 2017-19 XPT 64" Wide 2 Seat: 33-35" Tires
- 2017-19 XPT 64" Wide 4 Seat: 31-35" Tires
- Turbo S 72" wide: 34-35" tires or paddles
- RS1: 33-35" Tires
- 2016 RZR Turbo: 33-35" Tires
- Keep in mind if running any of these size tires and gear reduction, this helix might not be the best choice with the gearing.
