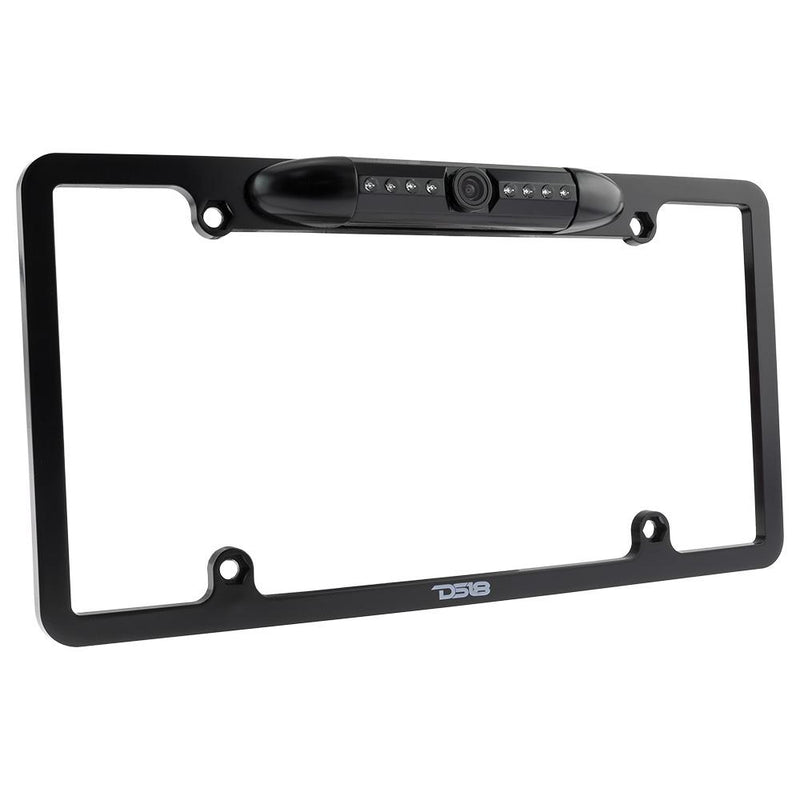

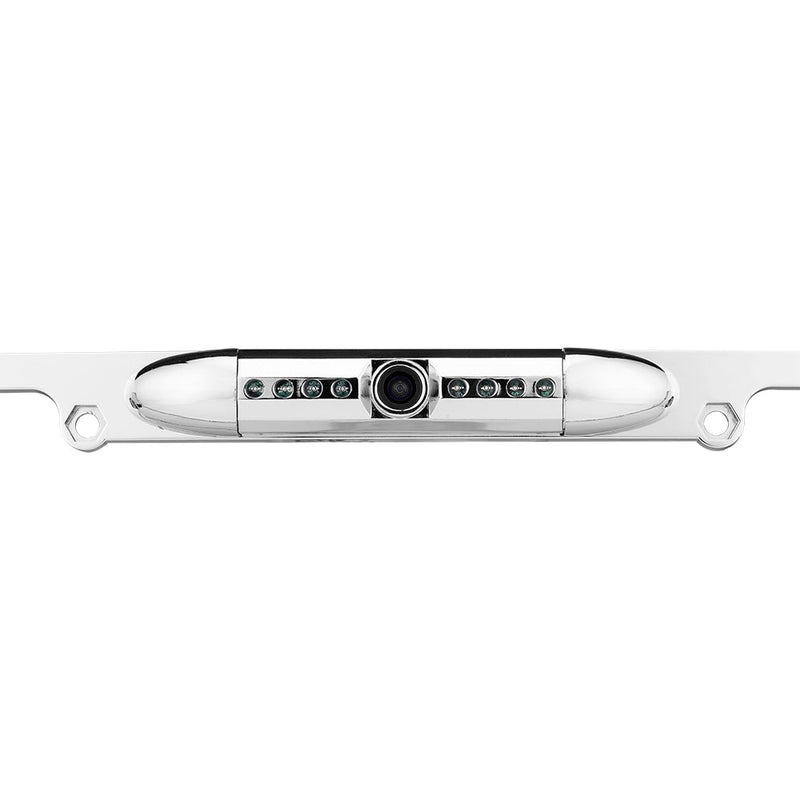

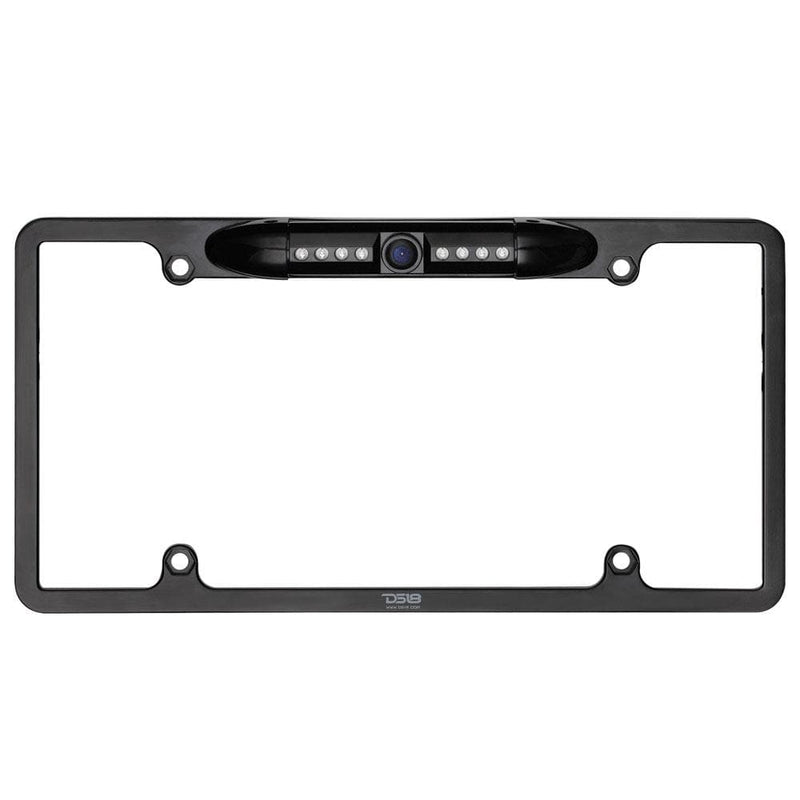

Load image into Gallery viewer, DS18 RCCP License Plate Backup Camera with Night Vision - Skoutley Outdoors LLC

SKU: RCCPB

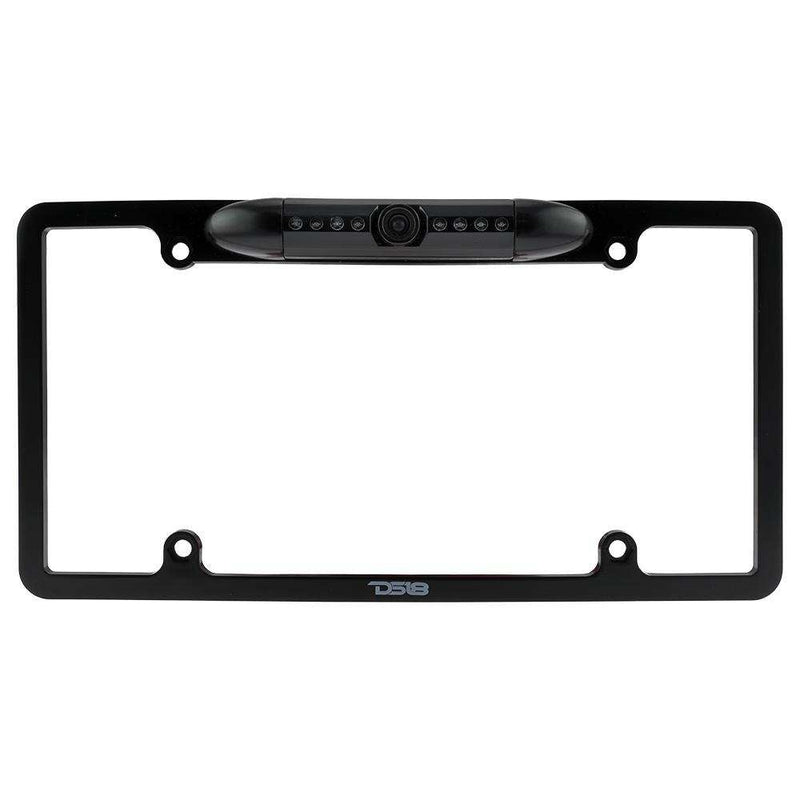

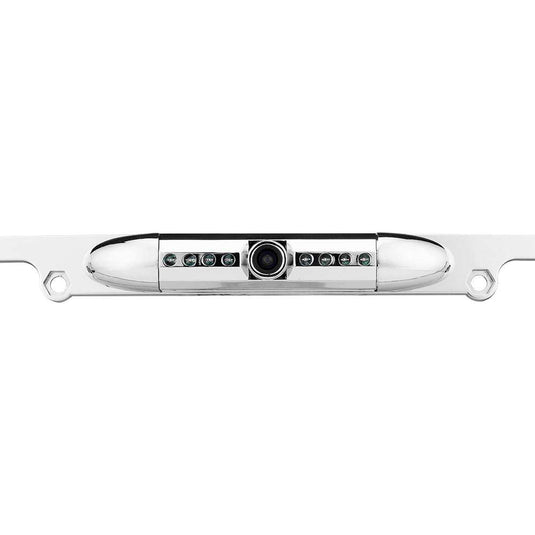

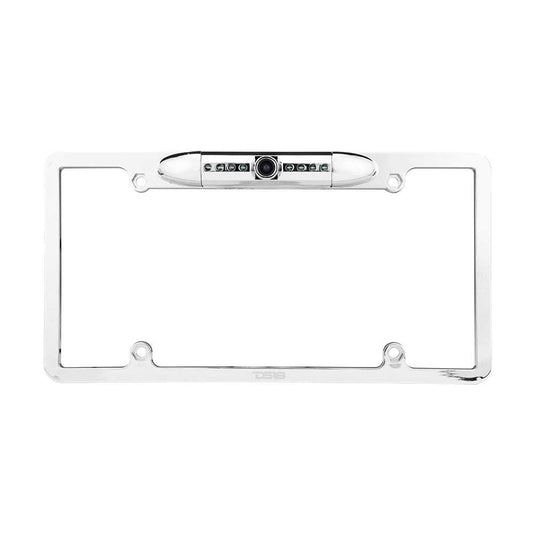

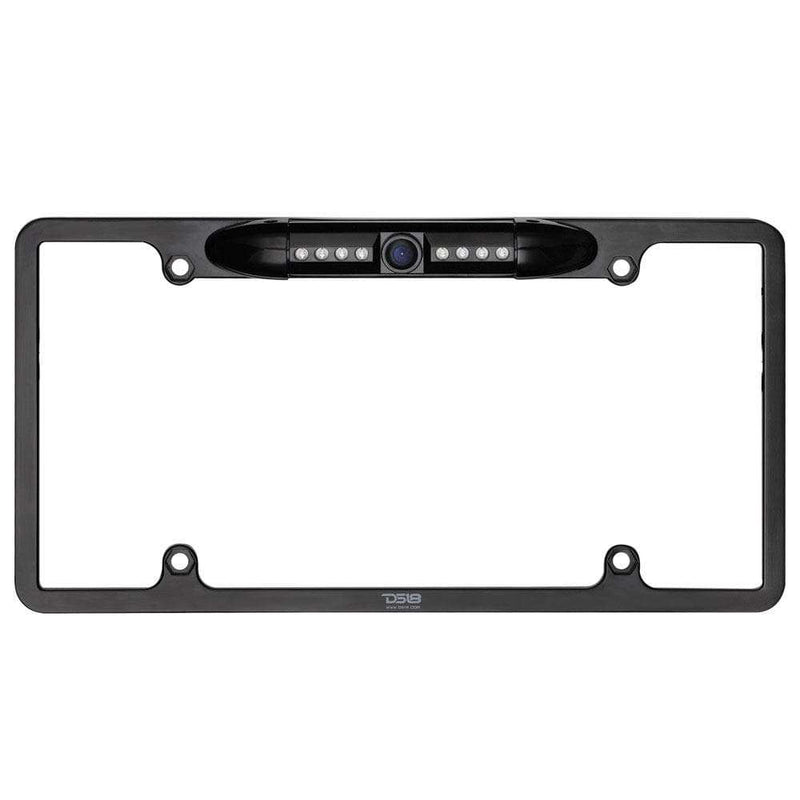

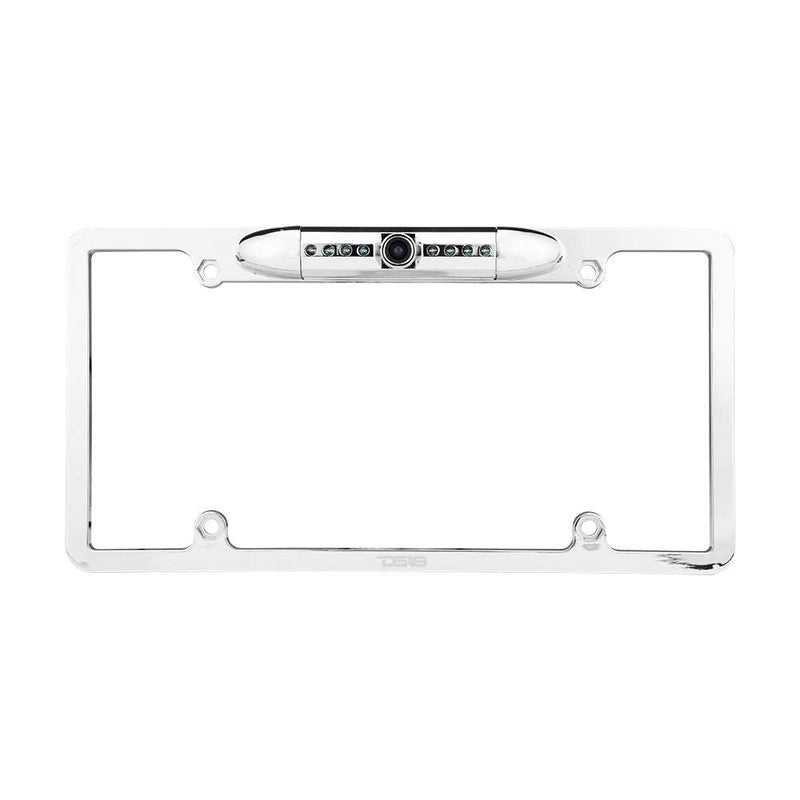

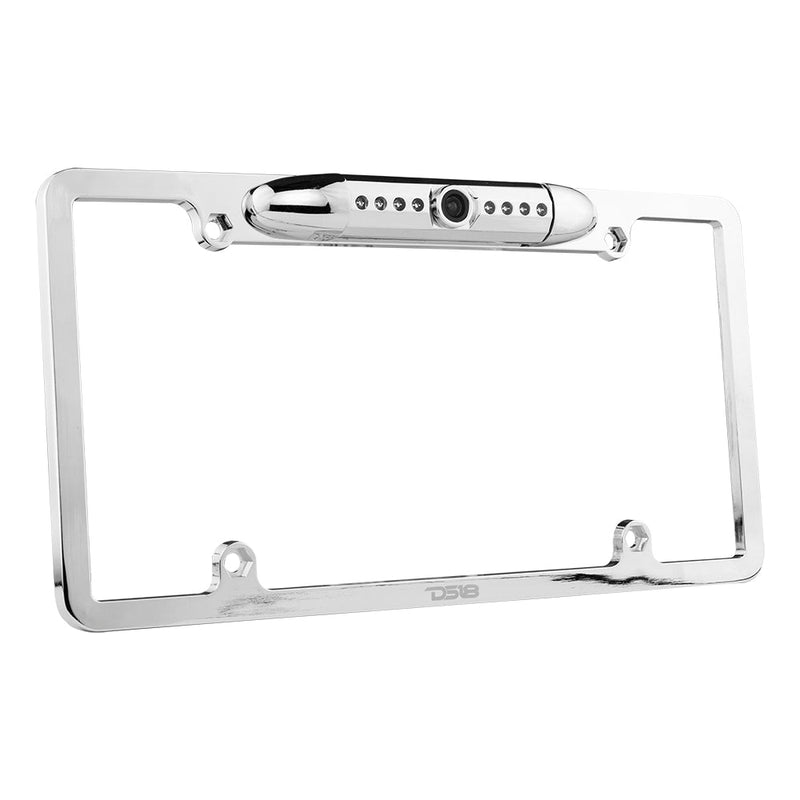

DS18 RCCP License Plate Backup Camera with Night Vision

Name: DS18 RCCP License Plate Backup Camera with Night Vision
Brand: DS18
SKU: RCCPB
Price: 49.95 USD
Availability: OutOfStock

DS18

$49.95

Sale Sold out

Shipping calculated at checkout.

Quantity must be 1 or more

Notify me when back in stock

The DS18 selection of rearview cameras are waterproof, sturdy, and underscore LEDs for night vision.

They provide the best resolution out of any similarly-priced rearview cameras on the market with CMOS color camera and color screen images. Allrearview camerascome with 120 degree lens angle with distance scale lane. Super low illumination and easy to install.

Highlights

Stainless Steel
Waterproof
High Resolution Night Vision
Distance Scale
Color camera
Wide Angle (120 degrees - 170 degrees)

Specifications

Image Sensor:	PC7070
TV System:	PAL/NTSC
Effective Pixels:	648 x 488 Pixels
Sensing Area:	5.55µm x 5.55µm
Scanning System:	2:1 Interlance
Sync System:	Internal
Resolution:	420 TV Lines
Horizontal Sync, Frequency:	15.625KHz - 15.734KHz
Vertical Sync, Frequency:	50Hz - 60Hz
Minimum Illumination:	1.5 lux/F1.2
Video Output:	1.0VP -P.750hm
Gamma Consumption:	0.45
AGC:	Auto
S/N Ratio:	Better than 48dB
White Balance:	Auto
Electronic Shutter:	1/60th - 1/15000 seconds
BLC:	Auto
Current Consumption:	80Ma
Power Supply:	DC 12V-24V
Operating Temperature:	-10°C - 46°C RH 95% MAX
Storage Temperature:	-30°C - 60°C RH 95% MAX
Lens:	1.8mm F=2.0
Lens Angle:	170°
Waterproof Grade:	IP 67
