Dual 8" Loaded Amplified High End Aluminum Subwoofer Enclosure 300 Watts Rms

DS18 SQ82A 8" Amplified Car Audio Subwoofer plus 8" Passive Subwoofer in High End Aluminum Enclosure 1200 Watts

Specially designed for vehicles that want to add great bass but have very little to no room for large subs and boxes.

The SQ82A incorporate a 8 inch active subwoofer with an 8 inch passive woofer to help enrich the tone and bass levels in a compact enclosure that contains a special design to help extend and elaborate the bass for your music with the built in amplifier!

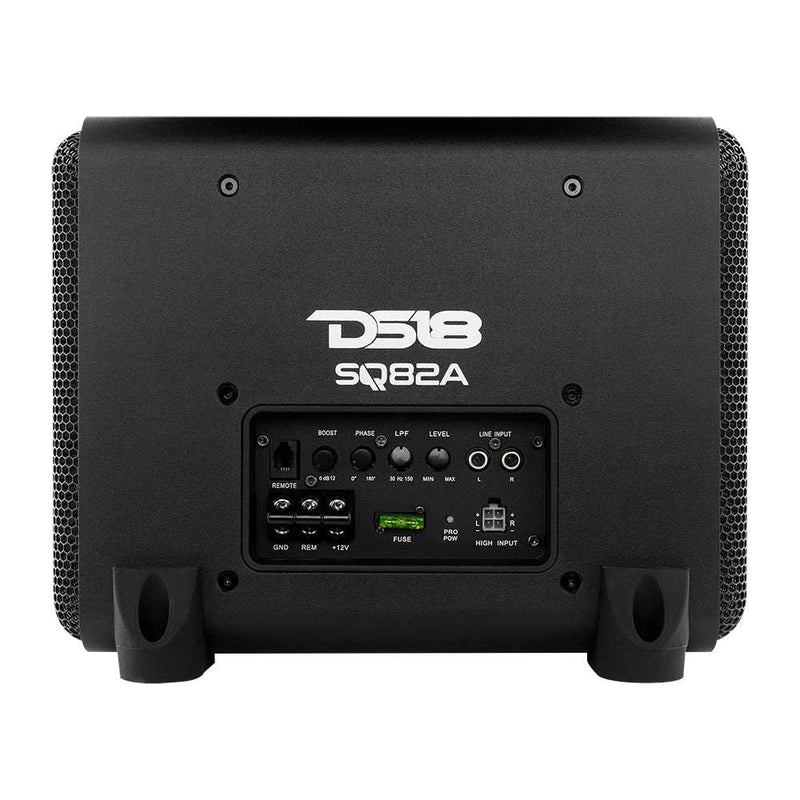

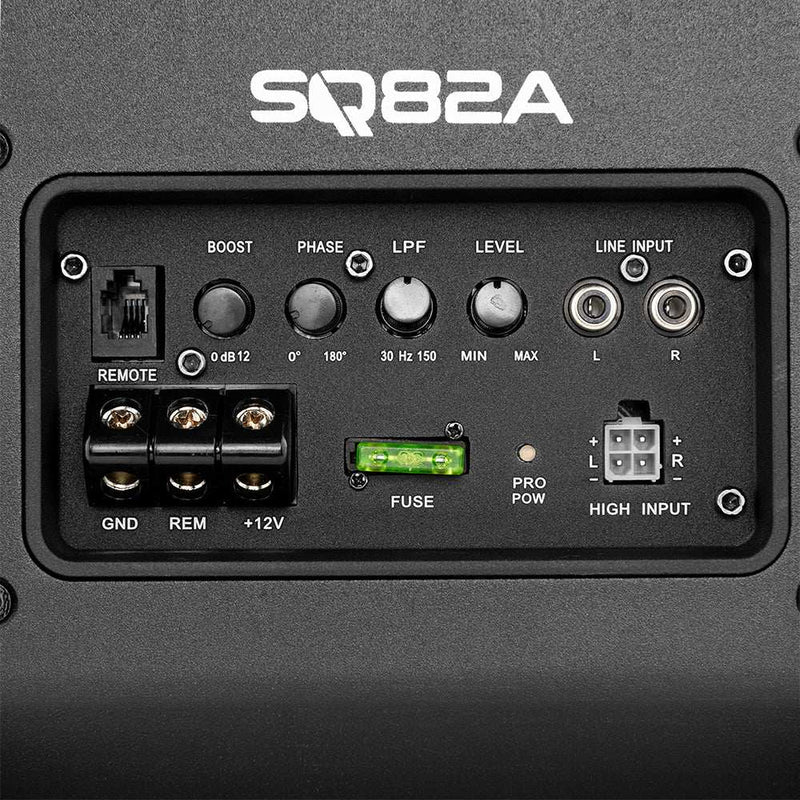

The built in amp just needs power and then you have all the normal amplifier settings right at your fingertips including bass boost, gain control, and low pass filter settings. The included gain control knob will also let you adjust your music easily while on the go with a quick turn of the dial.

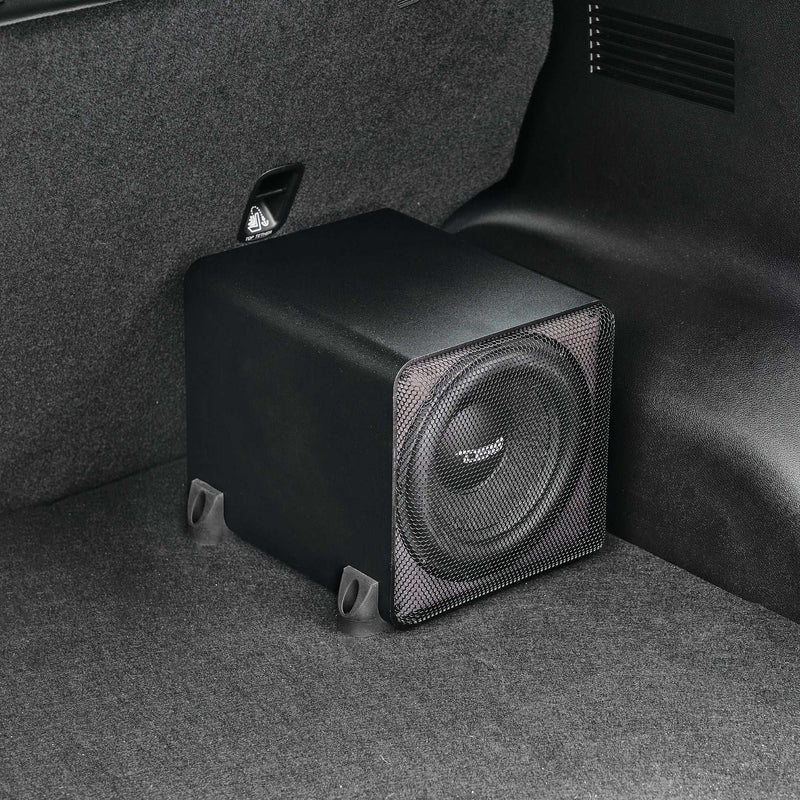

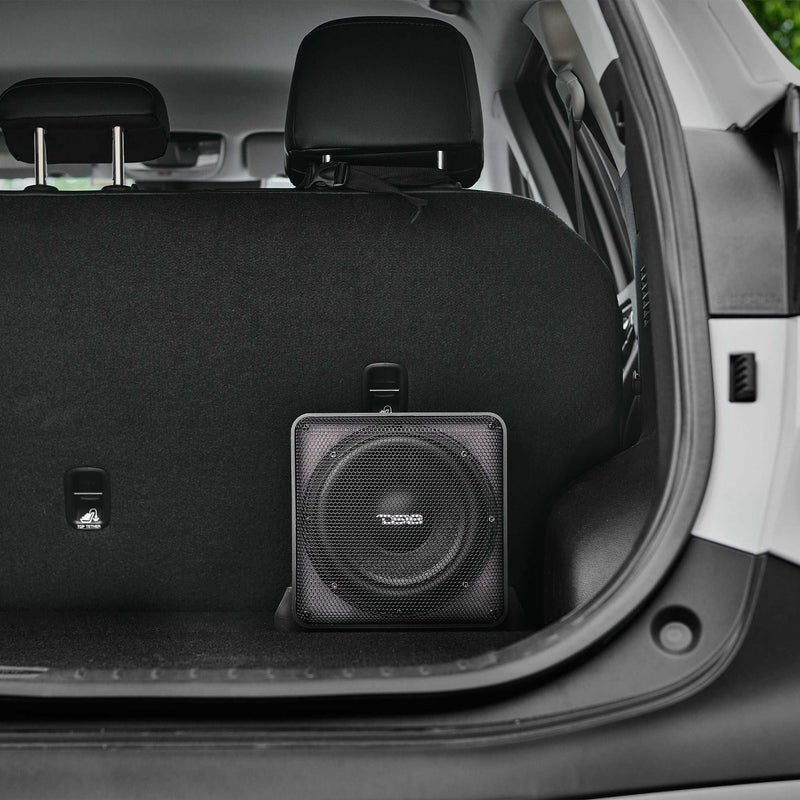

This small unit can fit behind most conventional car seating, rear cubby, or small sized storage compartments so you can have clear and vibrant bass even if you have no room.

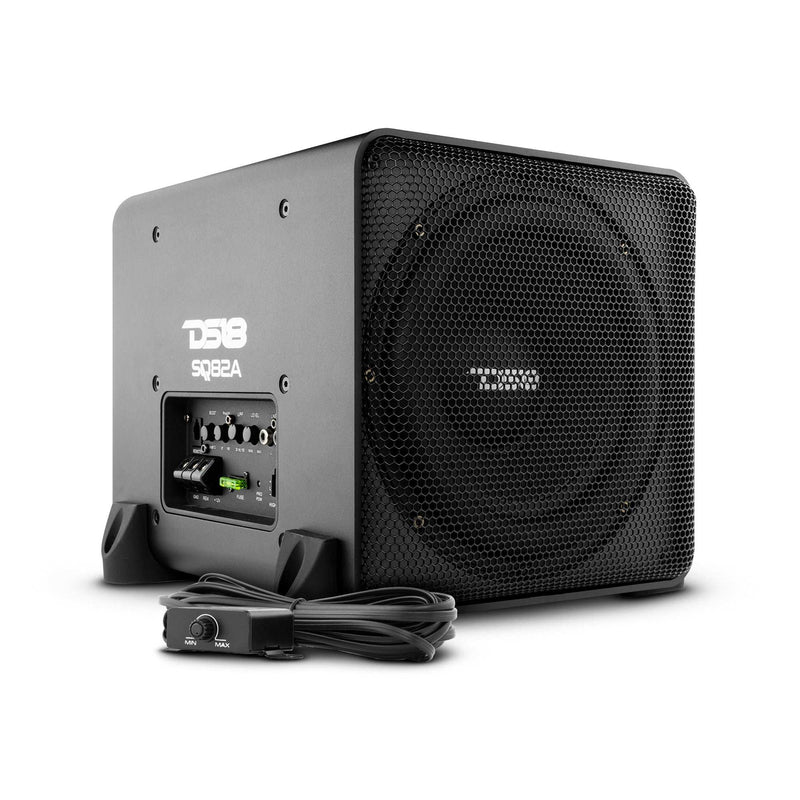

The unit also comes with it's own volume control input so you can find the perfect bass level for your musical preferences. With 300w RMS and 1200w MAX power available on tap you will be sure to get hear vibes every time you hear the bass drop.


Highlights

• Add bass where there was none before easily! Compact design that is made to fit behind most front or rear seats or wherever there is room. The options are endless!
• Specially designed 8 inch active with 8 inch passive subwoofer made to maximize bass response in spaces that are not typically designed for subwoofers.
• Built in high power amplifier with bass remote input. High level inputs and RCA inputs will ensure this will work for any vehicle. 300w RMS 1200w max output has been engineered to power this compact subwoofer and enclosure to it's most optimal output.

Key Features
- Subwoofer

• 8 inch active + 8 inch passive subwoofer
• Max Power Handling: 1200 watts
• RMS Power Handling: 300 watts
• Frequency Response: 30-350Hz
• Voice Coil Diameter: 1.52"
• Voice Coil Material: Copper
• Impedance: 2-ohms
• Sensitivity: 83 dB
• Magnet Weight: 32 Oz
• Magnet Material: Ferrite

- Box:

• Box Material: Aluminum
• Box Tuning: 50Hz
• Box Type: Sealed / Passive
• Internal Volume: .38 ft3

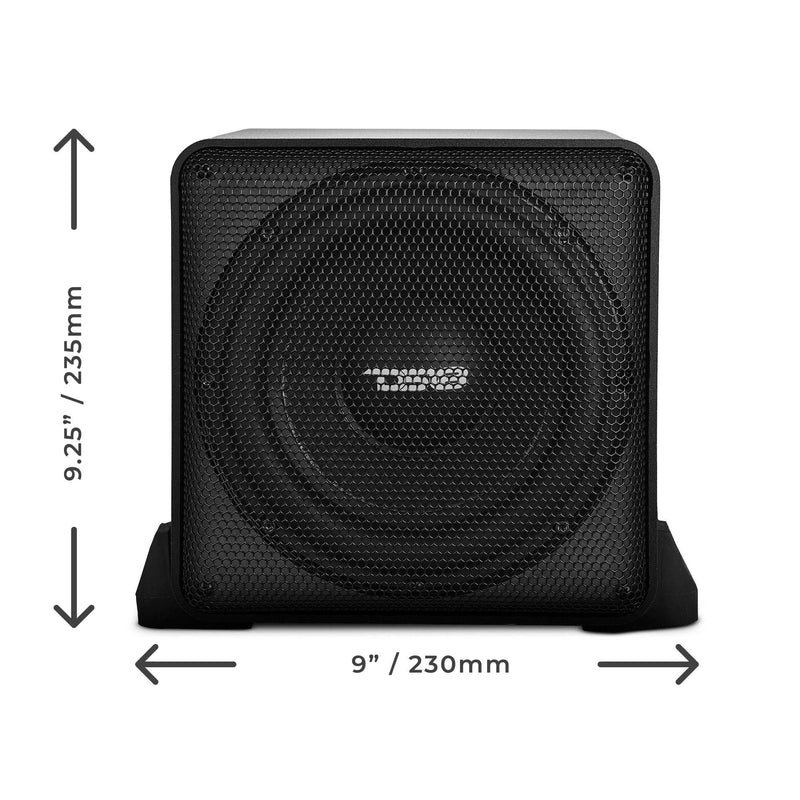

• Dimensions: (LxWxH) 12x9x9"

- Amplifier:

• Digital Class D Monoblock
• Frequency Response: 30-350Hz
• Efficiency at 4-ohms: 75%
• Total Harmonic Distortion: <.5%
• Selectable X-Over: LPF Fixed
• Bass Boost: 0-12dB
• Phase: 0-180
• Power and Ground: 8 gauge

Good for:
Car Audio
Pro Audio
Home Solutions
DIY Projects

Technical Details

                                                                                                                        SQ82A Product Manual
