Easy 4 Link - Kit A - Triangulated Uppers

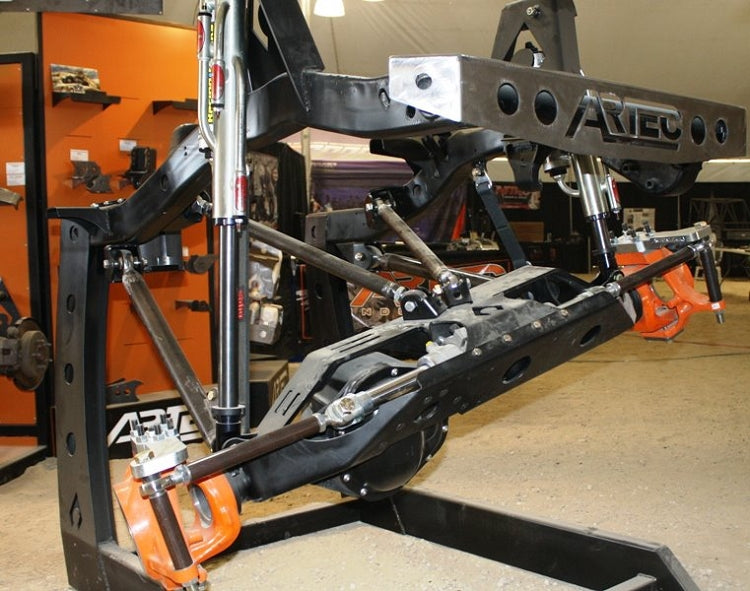

Load image into Gallery viewer, Easy 4 Link - Kit A - Triangulated Uppers

SKU: LK0005

Easy 4 Link - Kit A - Triangulated Uppers

Name: Easy 4 Link - Kit A - Triangulated Uppers
Brand: Artec Industries
SKU: LK0005
Price: 1440.99 USD
Availability: InStock

Artec Industries

$1,440.99 USD

Sale Sold out

Shipping calculated at checkout.

All 1.25" PRO KRAWLER JOINTS with DOM TUBE Sold out

All 1.25" PRO KRAWLER JOINTS with NO DOM TUBE Sold out

BRACKETS ONLY - No Links Sold out

All 1.25" Rod Ends with DOM TUBE Sold out

7/8" Upper Rod Ends and 1.25" Lower Rod Ends with DOM TUBE Sold out

All 1.25" Rod Ends with NO DOM TUBE Sold out

7/8" Upper Rod Ends and 1.25" Lower Rod Ends with NO DOM TUBE Sold out

Quantity must be 1 or more

5% off as a Kit vs. Individual parts

Our EASY 4-LINK KIT A is the simplest way to get your links done. This kit is based off our most popular parts we've sold our customers for a single triangulated 4-link with angled upper control arms and straight or very slightly angled lowers. The brackets available in this kit allow for separate upper and lower mounts on the frame side for customizable 4-link setups. The heat and cryogenically treated chromoly rod ends are the strongest and longest lasting on the market. The included tube adapters feature machined WRENCH FLATS for easy adjustments and tightening and conform to the outer diameter of the tubing it welds to. The included stainless steel high misalignment spacers allow for maximum articulation in the rod end. As an option, this kit offers four foot lengths of both 1.5" and 2.0" tubing to be cut to the exact length needed for your particular vehicle.

Includes:

2 RH, 2 LH - 7/8" -14tpi x 3/4" bore rod ends
2 RH, 2 LH - 7/8" -14tpi Tube Adapters
2 RH, 2 LH - 7/8" -14tpi Jam nuts
8 - 3/4"-9/16" WIDE High Misalignment Spacers
2 RH, 2 LH - 1.25" -12tpi x 1.0" bore rod ends
2 RH, 2 LH - 1.25" -12tpi Tube Adapters
2 RH, 2 LH - 1.25" -12tpi Jam nuts
8 - 1.0"-3/4" High Misalignment Spacers
2 - Lower Link Frame Brackets
1 - Pair Lower Link Axle Brackets
1 - Pair Truss Upper Link Mounts (2.63")
2 - Inner Frame Brackets (25 deg)
2 - 4 ft 1.5" OD .250" thick DOM tubing (optional)
2 - 4 ft 2.0" OD .250" thick DOM tubing (optional)

SHIPPING NOTE: If selecting PRO KRAWLER Rock Krawler joints, no misalignment spacers will be shipped. The joints will be drop shipped directly from Rock Krawler in New York so extra shipping time may be needed.

NOTE: This kit will require drilling of lower link holes to 3/4" unless you specify you'd like 9/16" bolts for your lower links.
