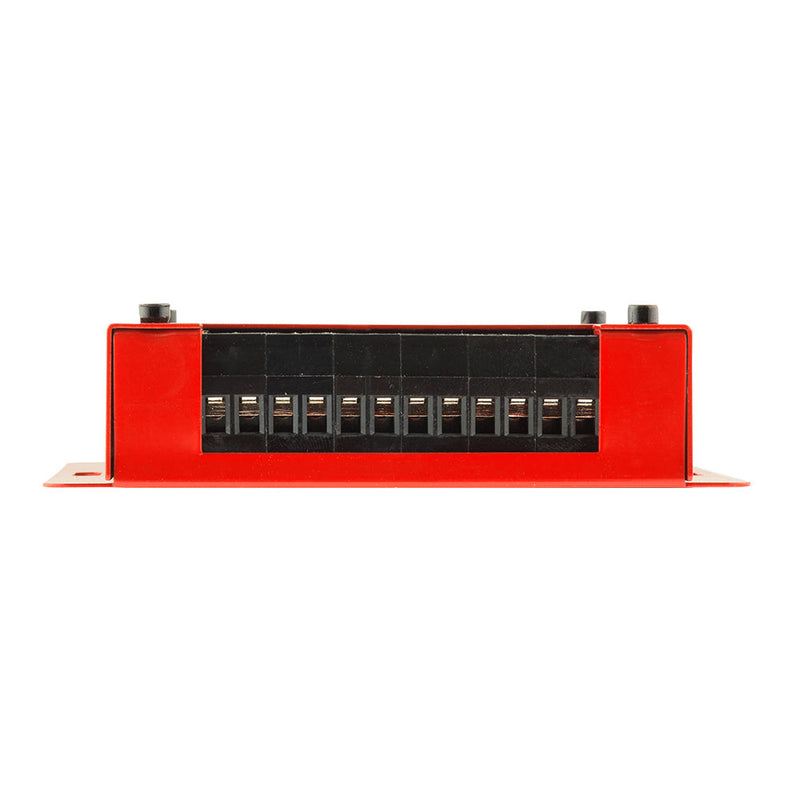

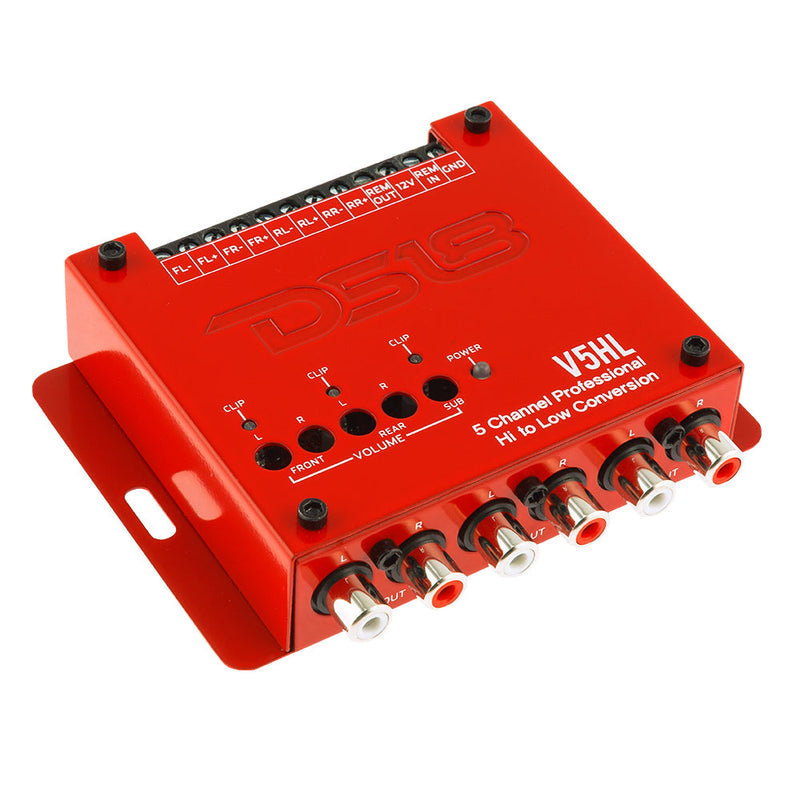

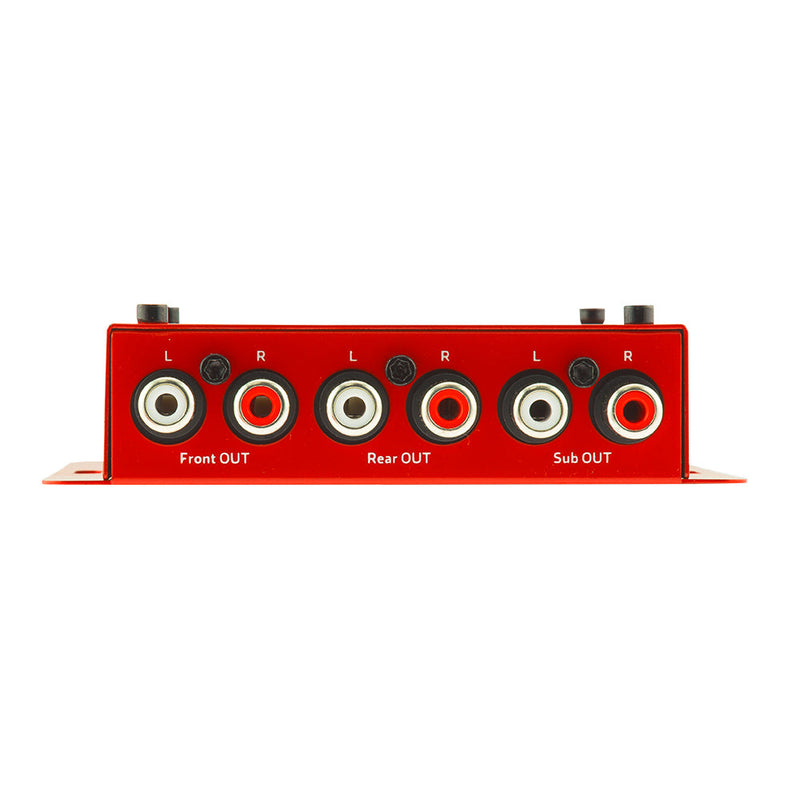

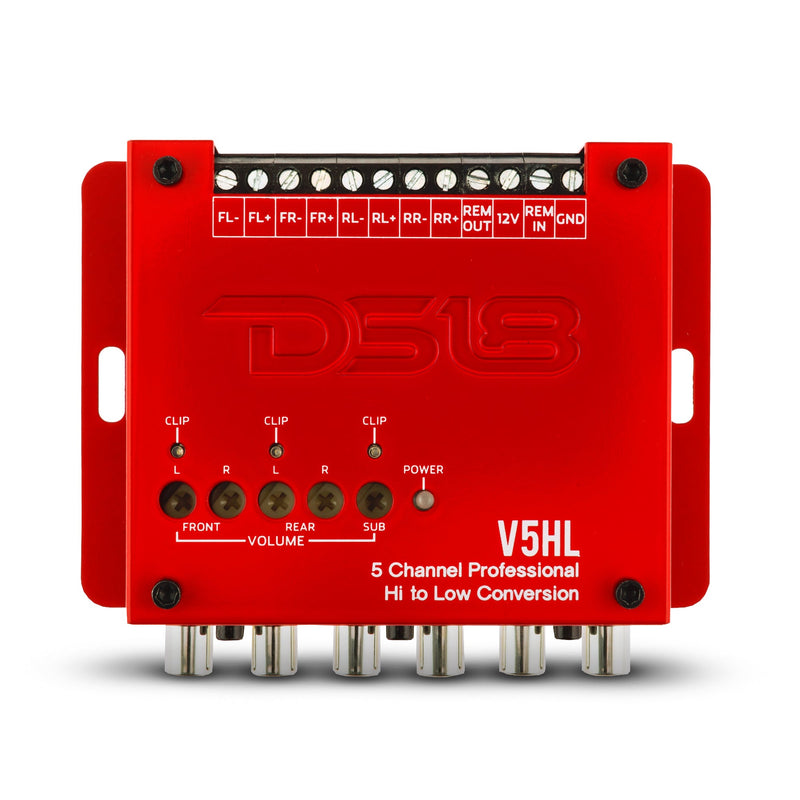

Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)
Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)
Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)
Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)
Load image into Gallery viewer, Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)
Load image into Gallery viewer, Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)
Load image into Gallery viewer, Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)
Load image into Gallery viewer, Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)

SKU: V5HL

Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)

$80.95 USD
$80.95 USD
Sale Sold out
/
Shipping calculated at checkout.
Pay in 4 interest-free payments with Afterpay Ships from trusted U.S. suppliers
This is a pre order item. We will ship it when it comes in stock.

DS18 V5HL Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)

Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic.

Highlights

  • Integrate any amplifier to your existing factory audio system easily
  • 5 channel design that uses hi/lo connections to convert signal to RCA which is the typical input for most aftermarket amps with added subwoofer connections.
Technical Details
Model: V5HL
Working Voltage: +12V
Input: Sensitivity: 0.1-16V
MAX RCA Output: 4V
Frequency Response: 10Hz - 30KHz
Input Impedance: 20K Ohms
Standby Current: 200 mA
Dimensions: 109 L x 88 W
Features: 4 CH High Level Input / 5 CH RCA Output
Surface Mount Component Technology
Direct Insert Power / Speaker Terminal
Lowest Impedance and Best Power Filter
FR4 Double Sides PCB
Remote Trigger Output with Signal Sensing
Power / Clipping LED Indicators
