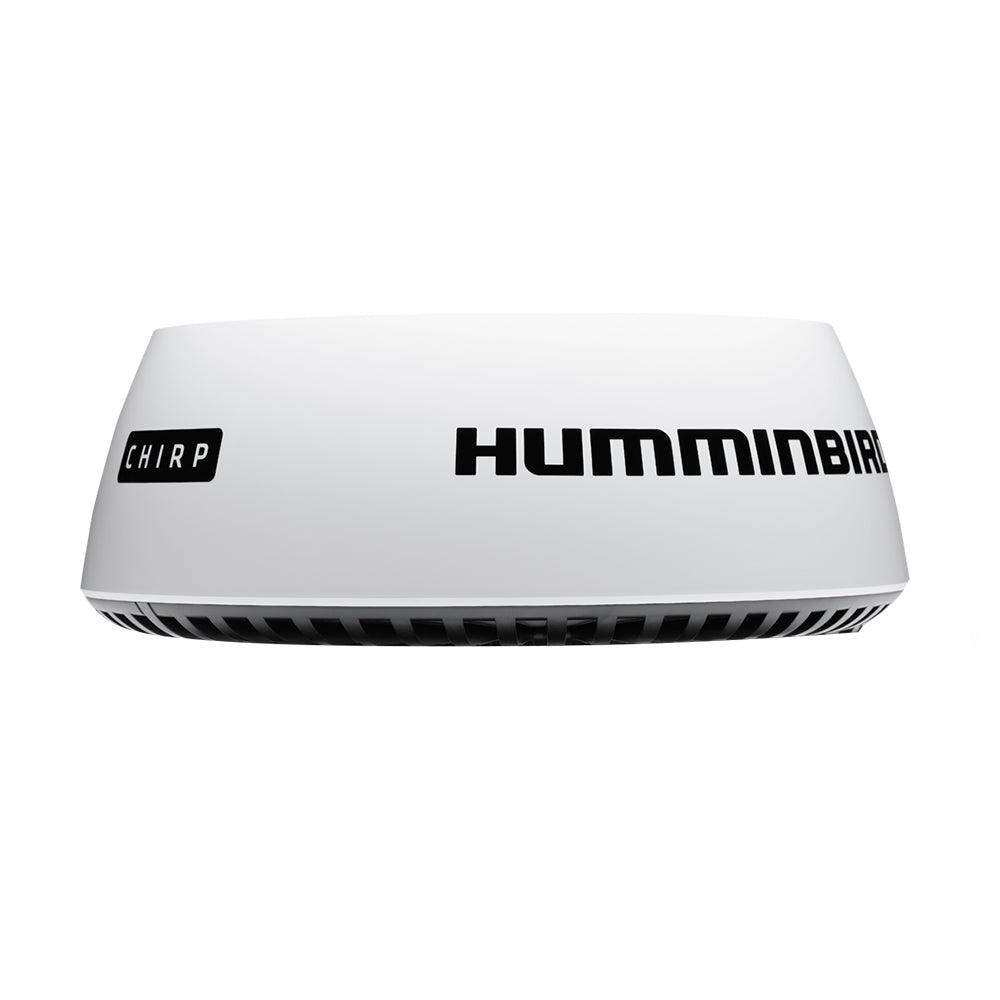

Humminbird HB2124 CHIRP Radar

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

• Antenna Dimension - 21" Enclosed Dome

• Antenna Type - Patch Array

• Peak Power Output - 20W

• Transmit Frequency - 9354 to 9446 MHz

• Beam width (nominal) - 4.9° Horizontal and 20° Vertical

• Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)

• Networking - Ethernet

• Maximum Range Scale - from 1/16 to 24 nautical miles

• Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W

• Duplexer - Circulator

• Pulse Widths @ 3 dB - 40 ns to 14.7µs

• CHIRP Lengths - 400 ns to 20µs

• CHIRP Bandwidth - Up to 32 MHz

• IF Bandwidth - 26 MHz

• Noise - Less than 4 dB

• Polarization - Horizontal

• Waterproofing - IPX6

• Weight - 12.3 lbs (5.6 kg)

• Compatibility Networking HELIX models and all ONIX models

Manufacturer : Humminbird
Manufacturer Part No : 750013-1
UPC : 082324050169
