Pre-Amp With Crossover For High Volt Amplifier

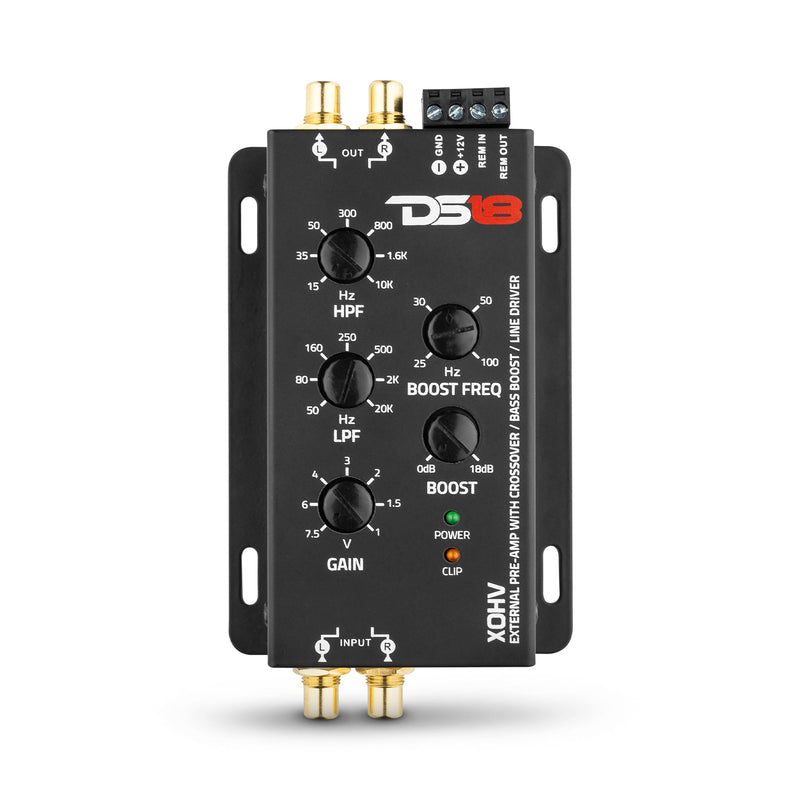

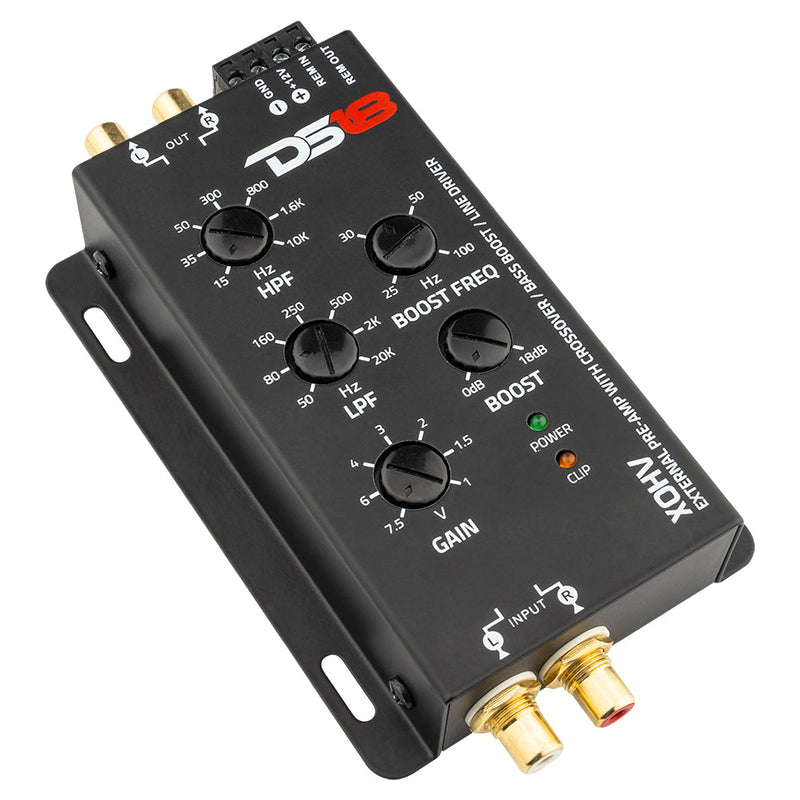

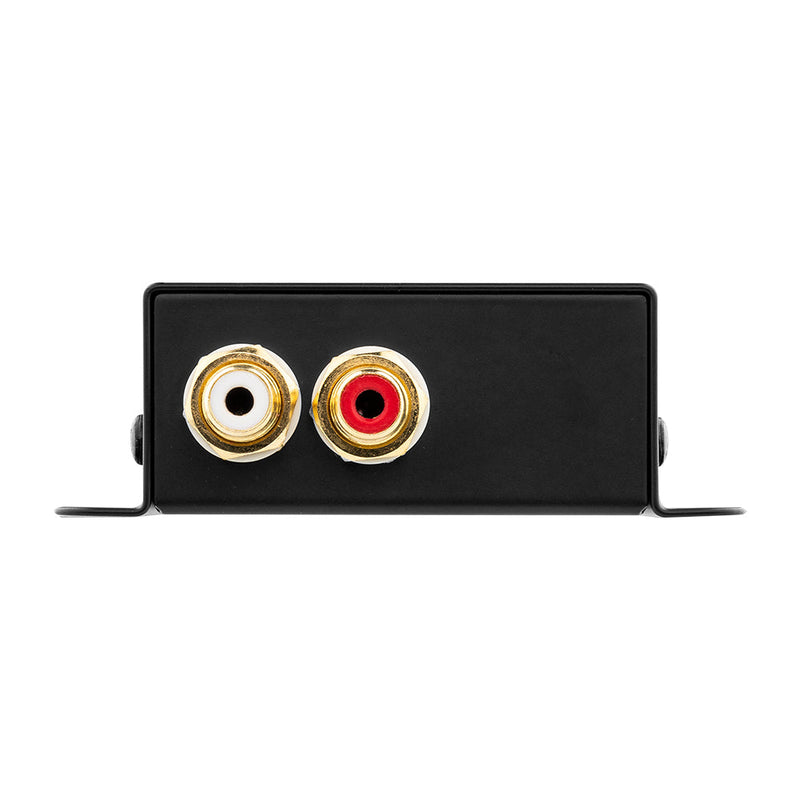

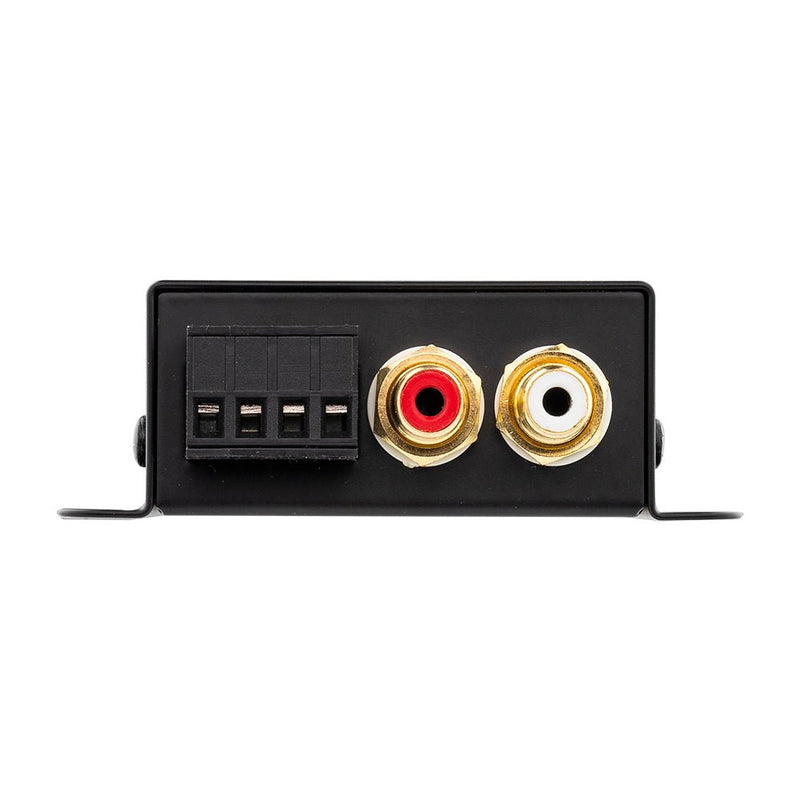

Load image into Gallery viewer, Pre-Amp With Crossover For High Volt Amplifier

SKU: XOHV

Pre-Amp With Crossover For High Volt Amplifier

Name: Pre-Amp With Crossover For High Volt Amplifier
Brand: DS18
SKU: XOHV
Price: 95.95 USD
Availability: OutOfStock

$95.95 USD

Sale Sold out

Shipping calculated at checkout.

Pay in 4 interest-free payments with Afterpay Ships from trusted U.S. suppliers

Quantity must be 1 or more

Notify me when back in stock

DS18 XOHV Pre-Amp With Crossover For High Volt Amplifier

Increase your systems signal to line-level with DS18’s XOHV!

This 2-channel Pre-Amplifier has a built-in Crossover and selectable bass boost frequency with high volt input and output! The XOHV is designed to work in line with H-V amplifiers that usually don’t have these features equipped.

This Pre-Amplifier’s 2-Channel capabilities allow you to connect 2 or more amplifiers for insane results!

Increase your signal strength today with the XOHV!

Highlights

Perfect for Hi-Volts Amplifiers
Hi-Volt RCA Input and output up to 9 volts
Bass Boost adjustable on frequency and intensity
LED Clip indicator for input and output
Input Gain Adjustable
Low Loss Tiffany RCA
Remote output with delay to avoid noises
Input Ground Selectable (Ground/200 ohm/Insulated)

Great For

Pro Audio
Car Audio

Technical Details

Download XOHV Product Manual

SPECIFICATIONS
Audio
Frequency Response	15Hz - 20KHz
Signal to Noise Ratio	100dB
Total Harmonic Distortion (THD)	0.0002
Stereo Signal Separation	85dB
Low Level Input Range	1.6 - 9 Volts
High Pass Filter Range	15Hz - 10KHz
Low Pass Filter Range	50Hz - 20KHz
Crossover Slope	12dB/Oct
Bass Boost Range	0~18dB
Bass Boost Frequency	35~125Hz
RCA Pre-Output Voltage at 12.8V	7 Volts
RCA Pre-Output Voltage at 14.4V	9 Volts
Features
Number of Channels	2 (Left and Right)
Led Indicator	Power / Clip
Power Input Terminal Size	14ga
Fuse Size	up to 1A (external)
Remote Output	Yes, (250mA)
Tiffany RCA	Yes, (Input and Output)
Input Ground Selector	Yes, (Ground/200ohm/Insolated)
Measurement
Overall Length	5.9" / 150mm
Overall Wide	3.28" / 83.5mm
Overall Height	1.1" / 28mm
Heatsink Length	4.86" / 123.5mm
Heatsink Wide	2.42" / 61.7mm
Gross Single Unit Weight	9.4oz
