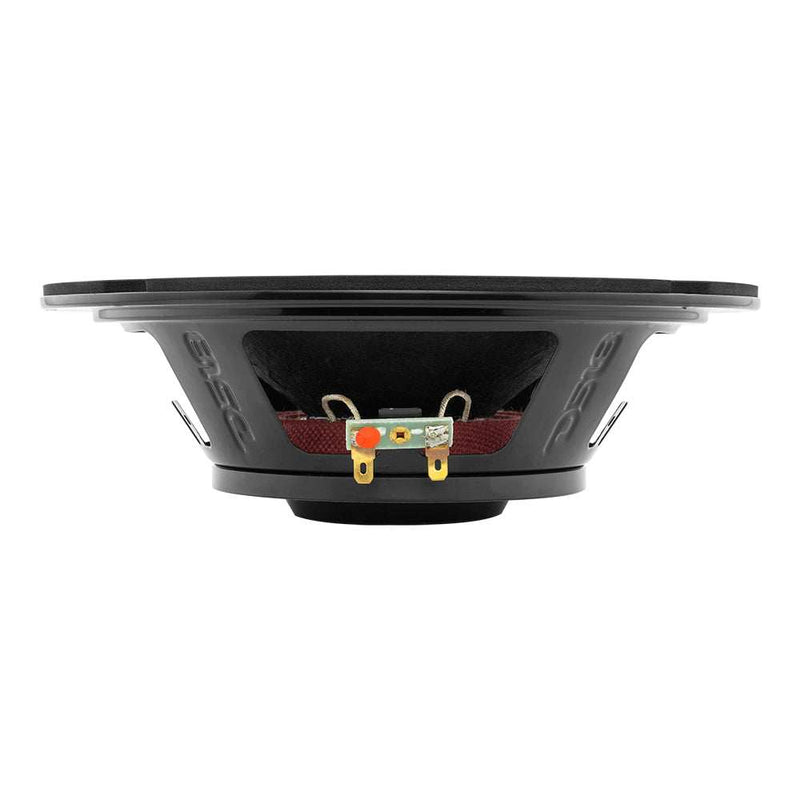

Load image into Gallery viewer, PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 4-Ohm - Skoutley Outdoors LLC

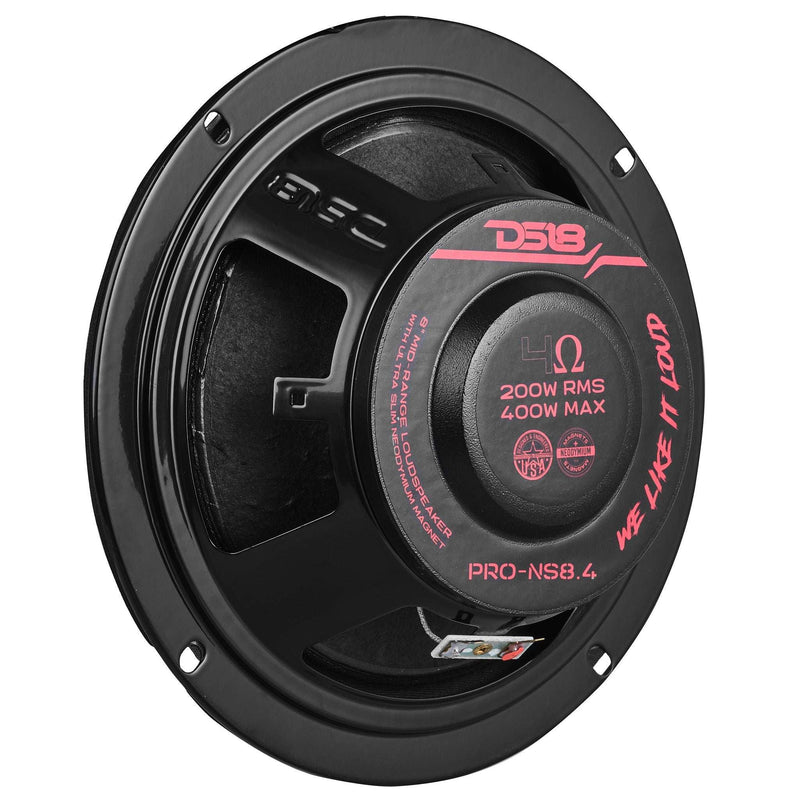

Load image into Gallery viewer, PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 4-Ohm - Skoutley Outdoors LLC
Load image into Gallery viewer, PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 4-Ohm - Skoutley Outdoors LLC

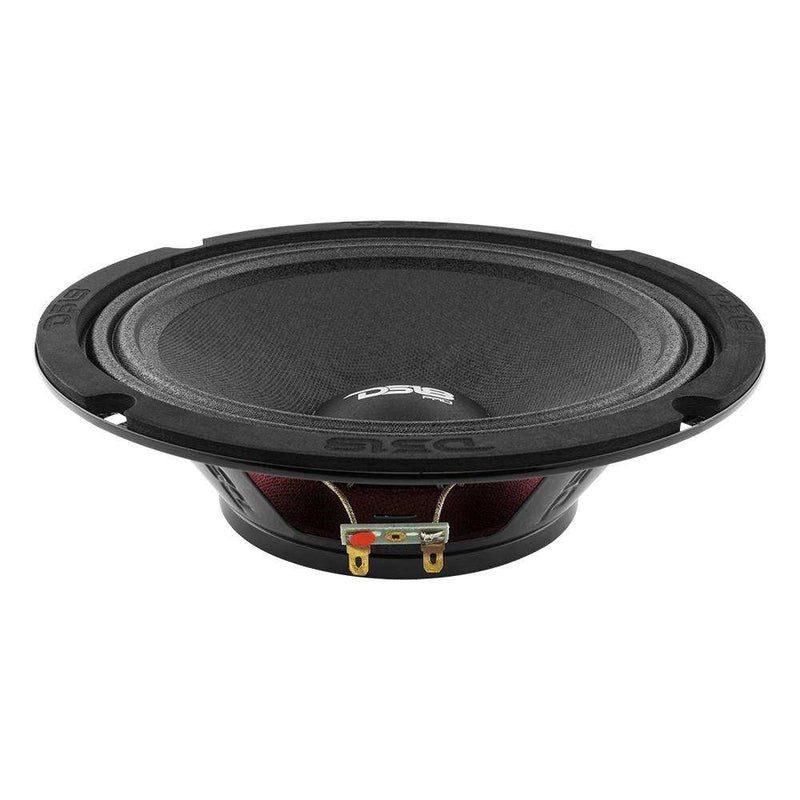

Load image into Gallery viewer, PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 4-Ohm - Skoutley Outdoors LLC

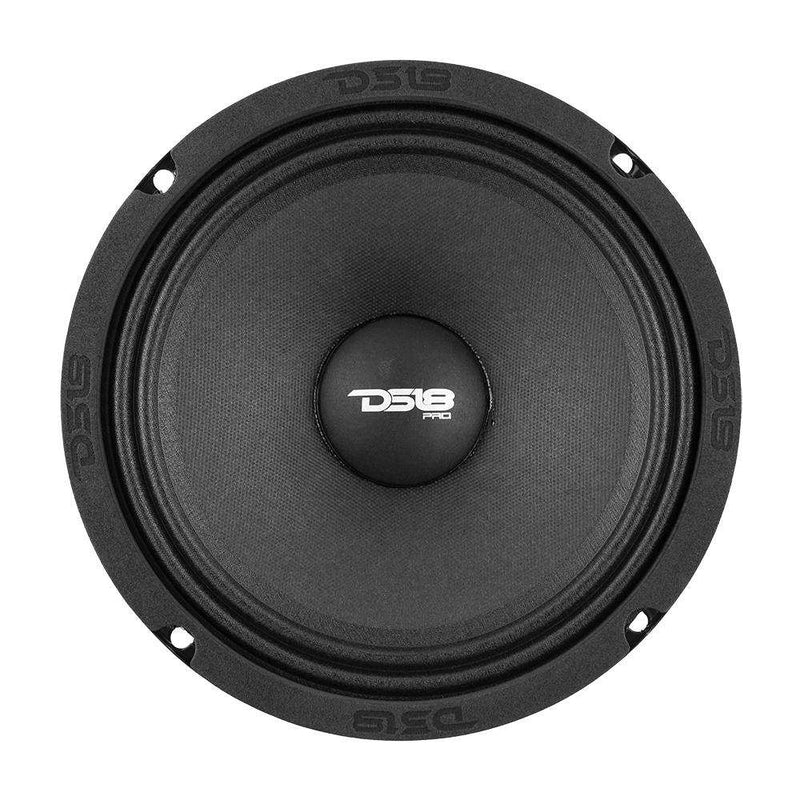

Load image into Gallery viewer, PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 4-Ohm - Skoutley Outdoors LLC

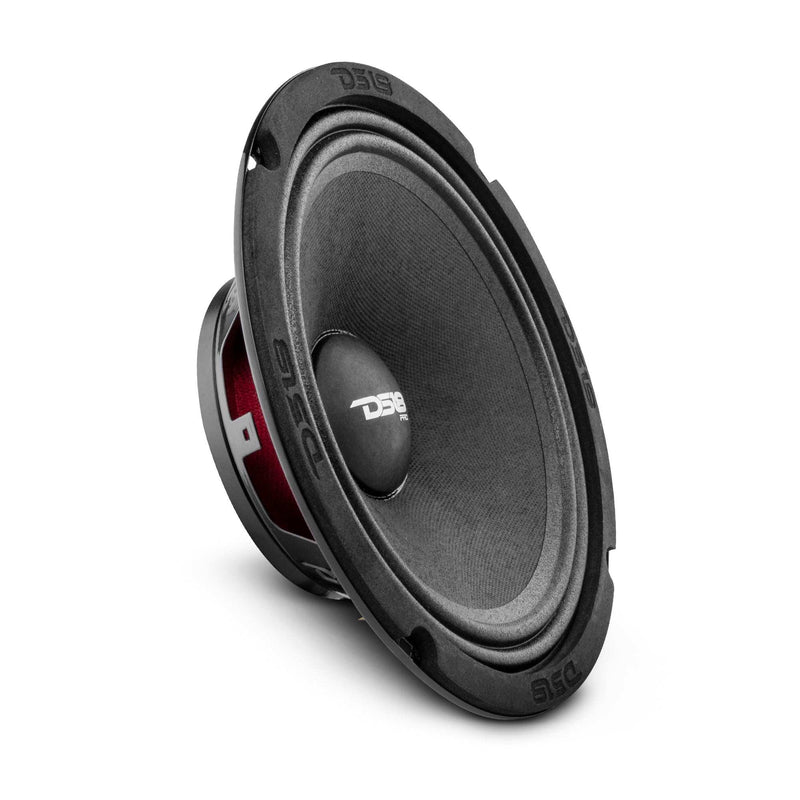

Load image into Gallery viewer, PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 4-Ohm - Skoutley Outdoors LLC

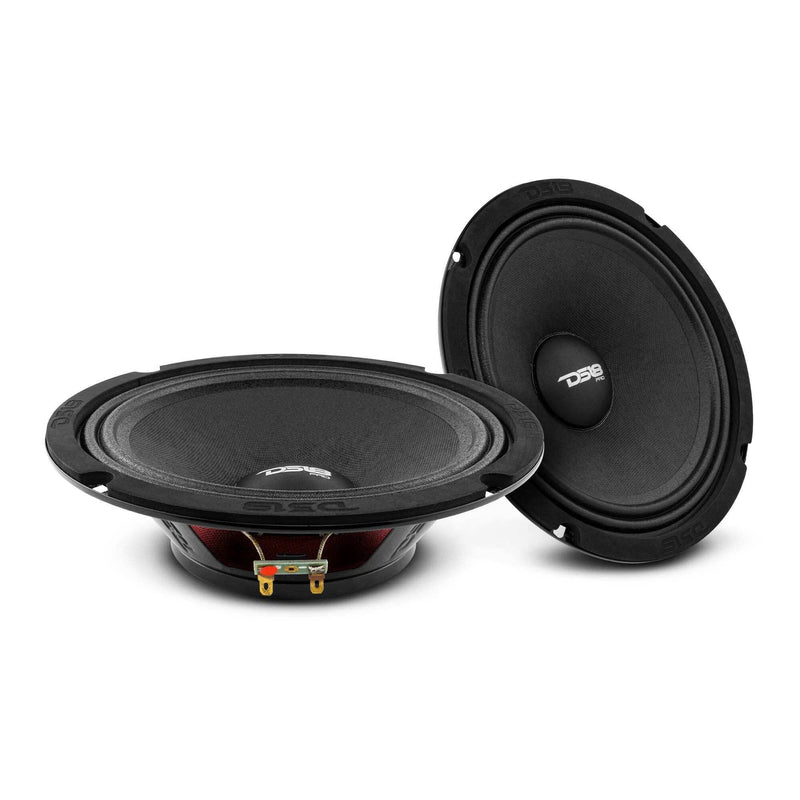

Load image into Gallery viewer, PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 4-Ohm - Skoutley Outdoors LLC

SKU: PRO-NS8.4

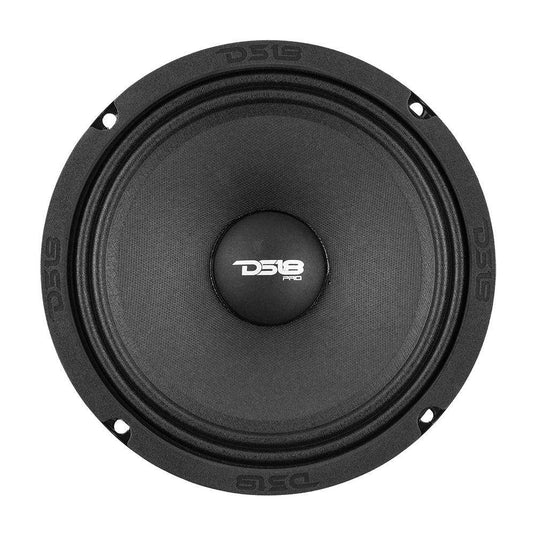

PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 4-Ohm

Vendor DS18
Regular price $95.95
Sale price $95.95 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

DS18 PRO-NS8.4 8" Shallow Neodymium Mid-Range Loudspeaker 400 Watts 4-Ohm

DS18's new Neodymium shallow speakers were designed to give you maximum loudness and volume all while keeping a nice small framed package. Most neo speakers are full size and take up a good amount of mounting depth, with these new Neo slim speakers, you can get that insane neodymium loudness where there is not much room for full size speakers. This 8" neodymium 2" voice coil Midrange speaker takes 200w RMS and 400w Peak power, so you know they will get loud easily. The 96dB sensitivity rating will be sure to give you plenty of volume as well for years and years of enjoyment.

Highlights

  • Neodymium Slim design so now you can get all that neodymium power and volume in a slim frame.
  • High efficiency 4 ohms 2 inch voice coil that handles 200w RMS and 400w Peak power for extreme loudness and frequency precision.
  • Shallow mounting depth of only 2.48 inches, these neodymium midrange speakers can fit almost anywhere you need great sound and max volume.

shallow neodymium mid-range loudspeaker

shallow neodymium mid-range loudspeaker

shallow neodymium mid-range loudspeaker

shallow neodymium mid-range loudspeaker

shallow neodymium mid-range loudspeaker

Technical Details
                                                    PRO-NS8.4 Product Manual

Nominal Diameter 8"/208mm
Nominal Impedance 4 Ohms
RMS Power Handling 200W
MAX Power Handling 400W
Sensitivity (1w/1m) 96 dB
Frequency Response 97Hz - 12KHz
Recommended Hi Pass Crossover 160Hz
Pair or Single Single
MOTOR
Voice Coil Diameter 2"/50.8mm
Voice Coil Former Material KSV
Winding Material Copper
Cone Material Paper
Dust Cap Material Paper
Surround Materia Cloth
Basket Material Steel
Basket Color Glossy Red
Magnet Material Neodymium
Magnet Weight 3.32oz
THIELE & SMALL PARAMETERS
Equivalent Volume 4.8L / 0.17ft3
Excursion (one way) 2 mm
Free Air Resonance 117Hz
Mechanical Factor 4.643
Electrical Factor 1.147
Total Factor 0.92
Mechanical Mass 12.294g
Mechanical Compliance 157m cm/N
BL Factor 4.8
Voice Coil Inductance 2.532mH
Cone Area 213.825 cm3
DC Resistance 3.2 ohm
Mechanical Mass w/o air/ 12.294g

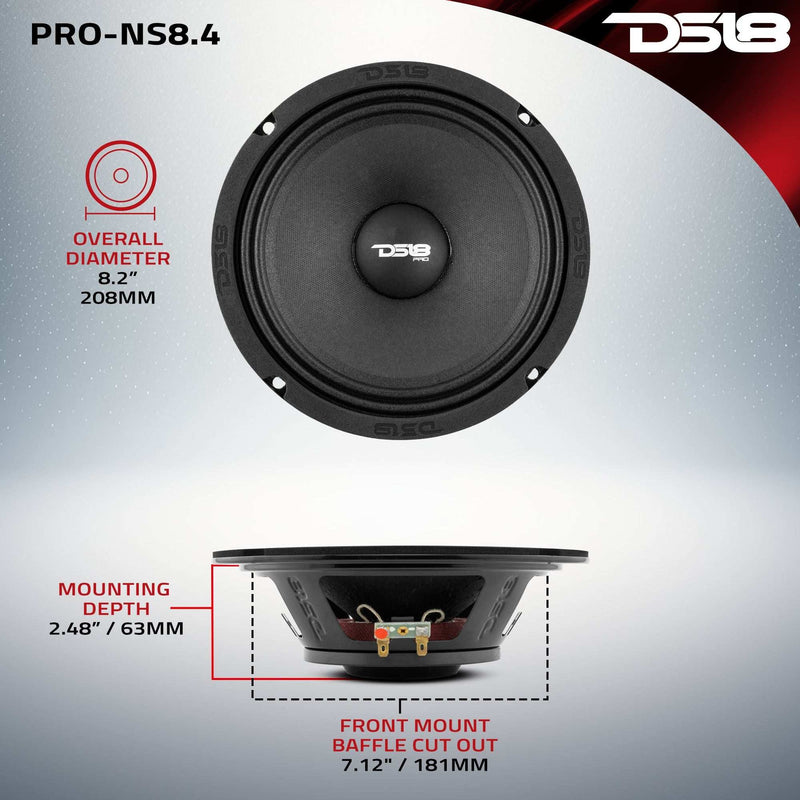

MEASUREMENTS

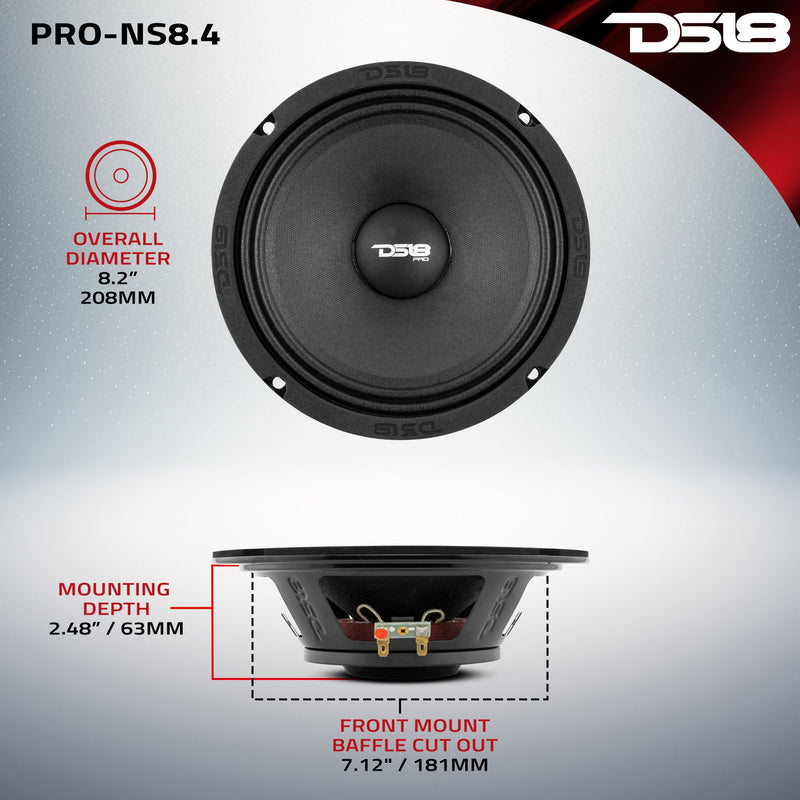

Overall Diameter 8.2"/208mm
Overall Depth 2.67"/68mm
Front Mount Baffle Cutout 7.12"/181mm
Mounting Depth 2.48"/63mm
Motor Diameter 4.33"/.110mm
