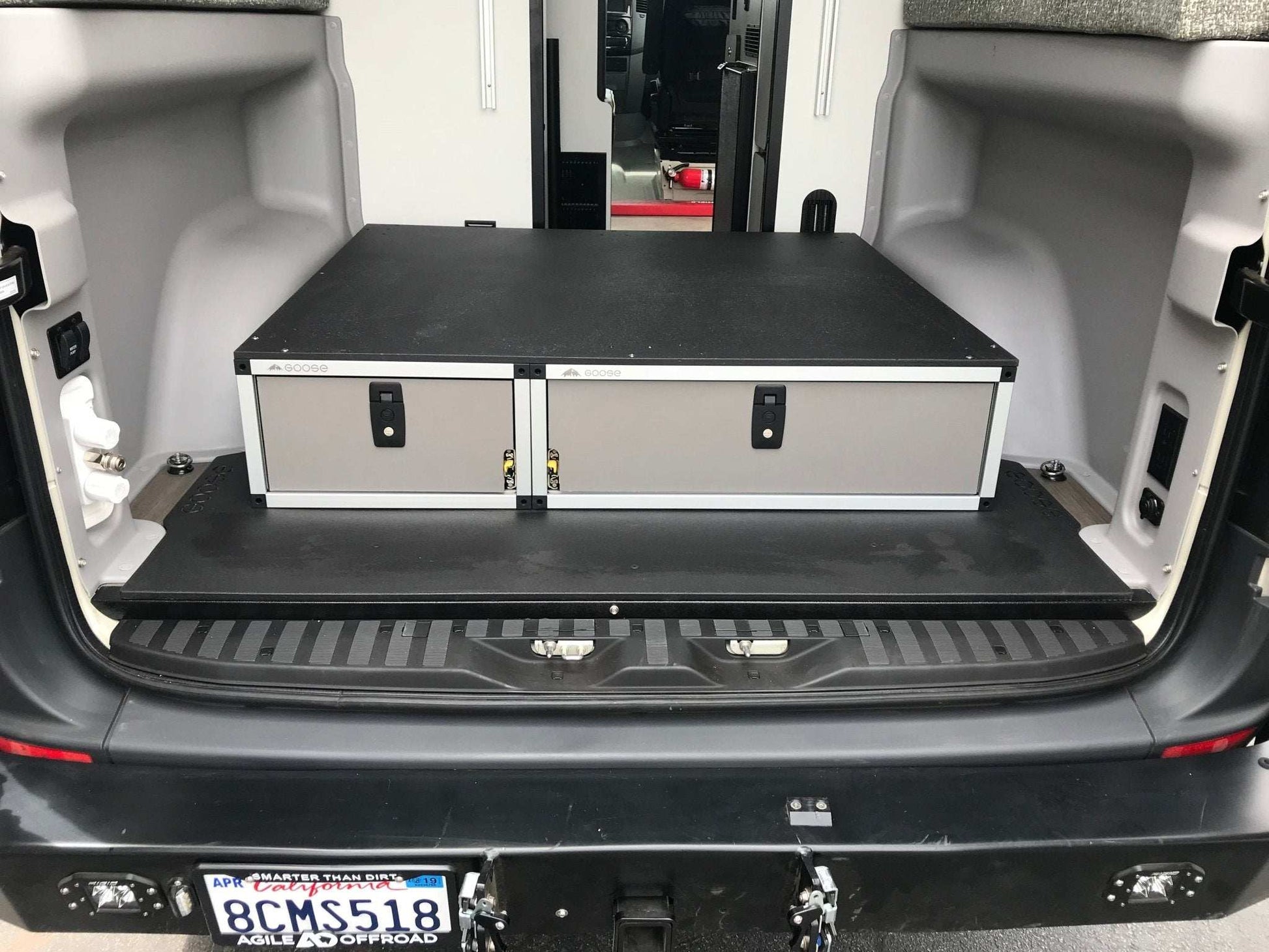

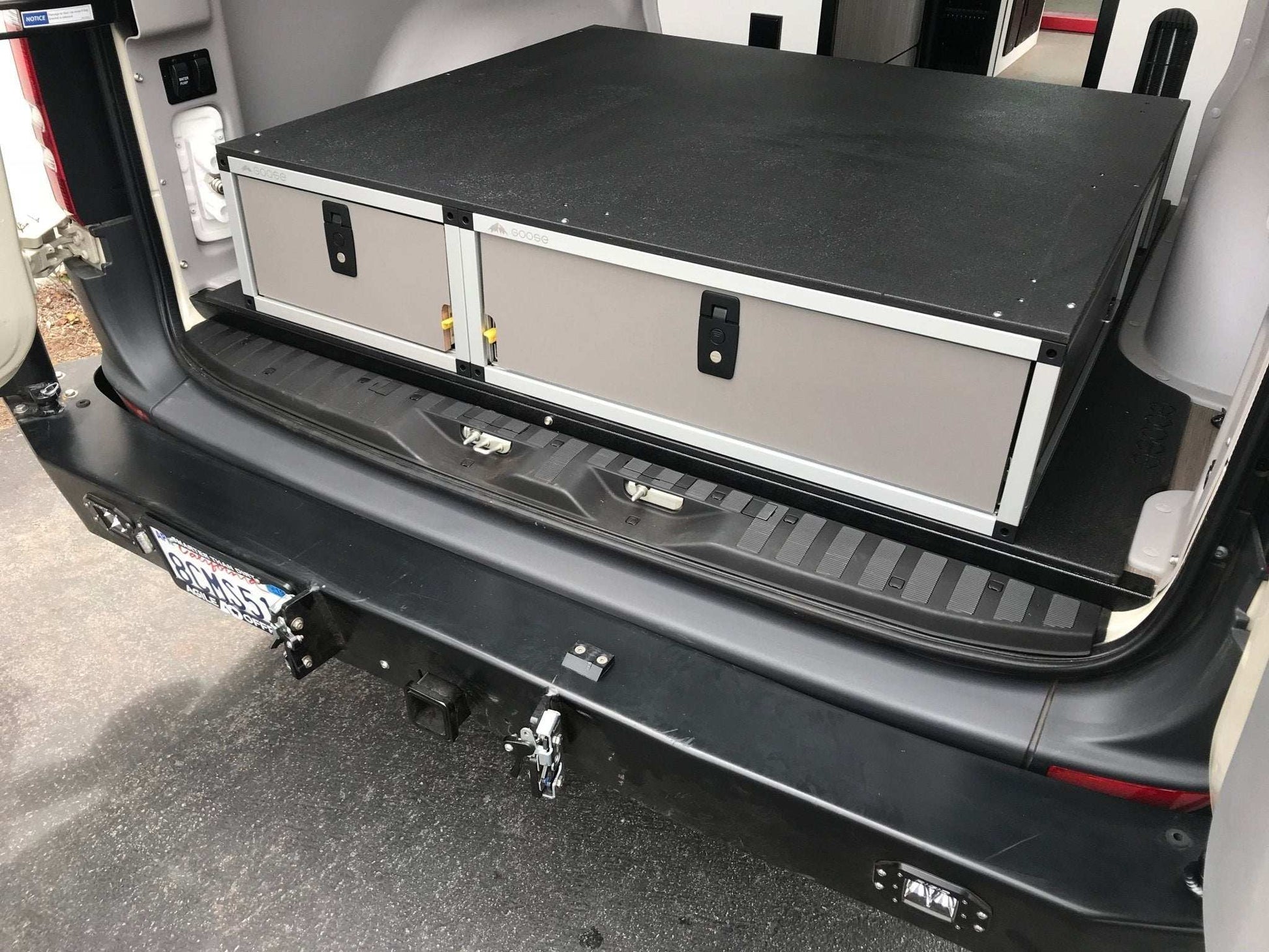

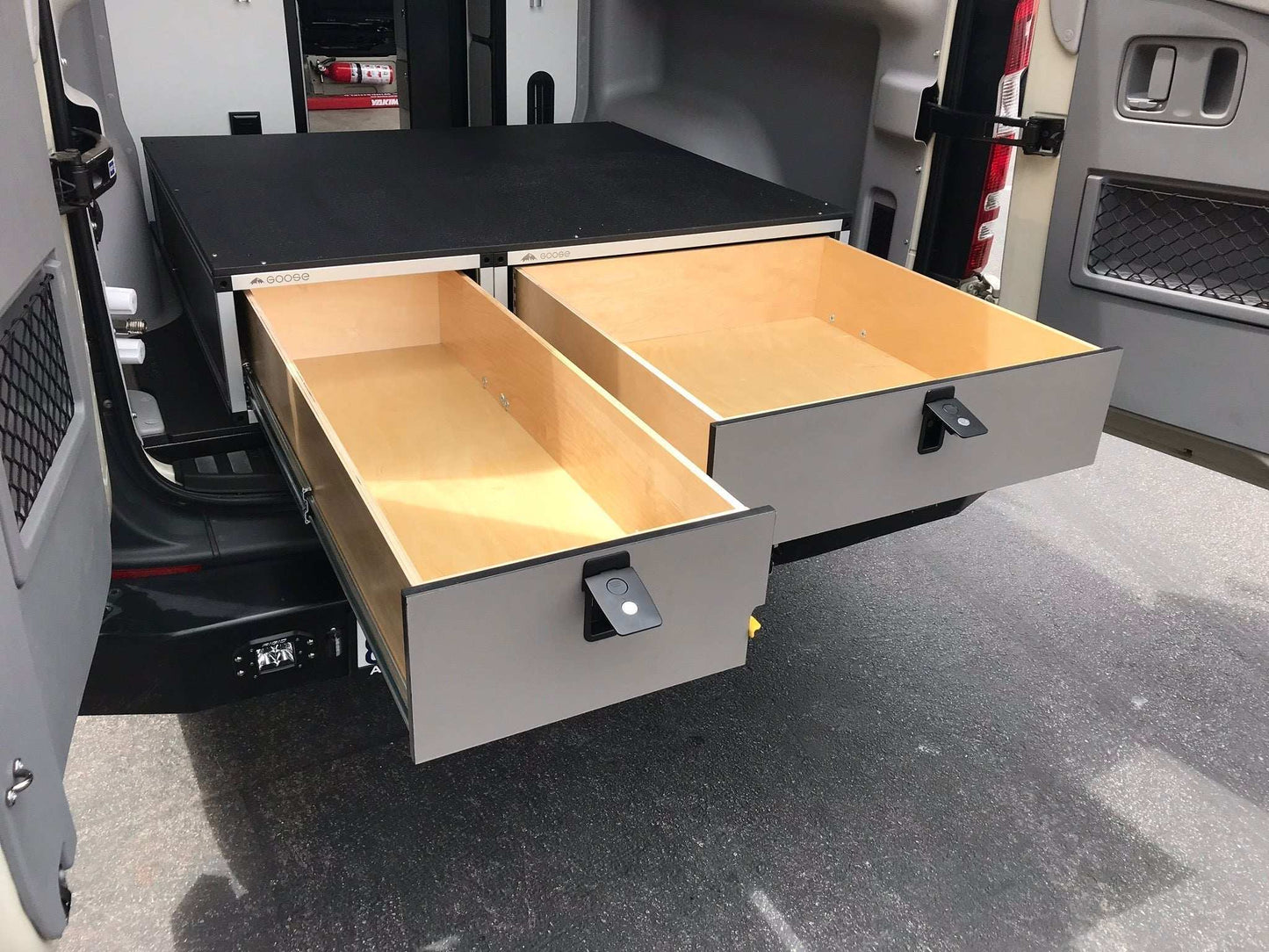

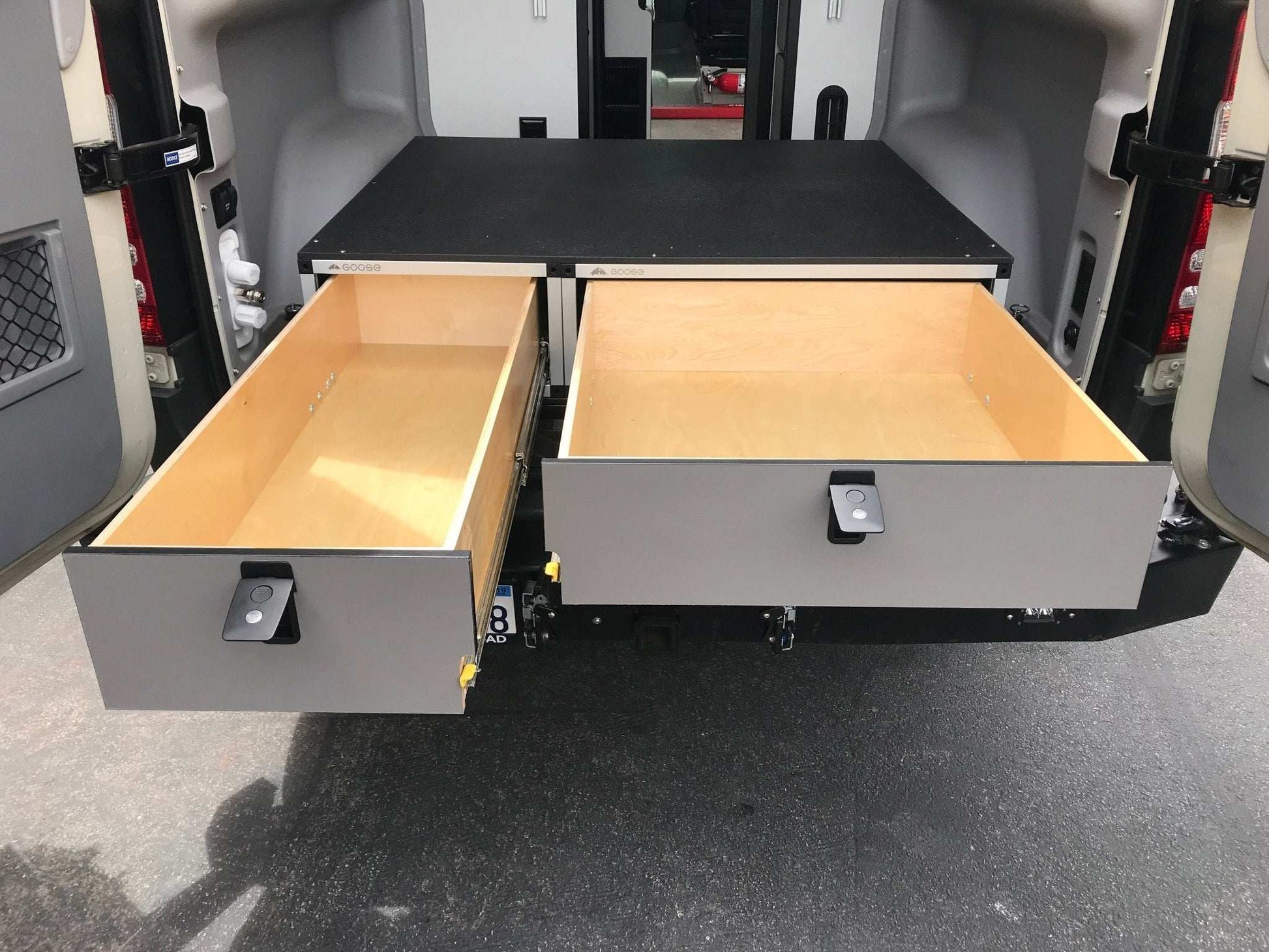

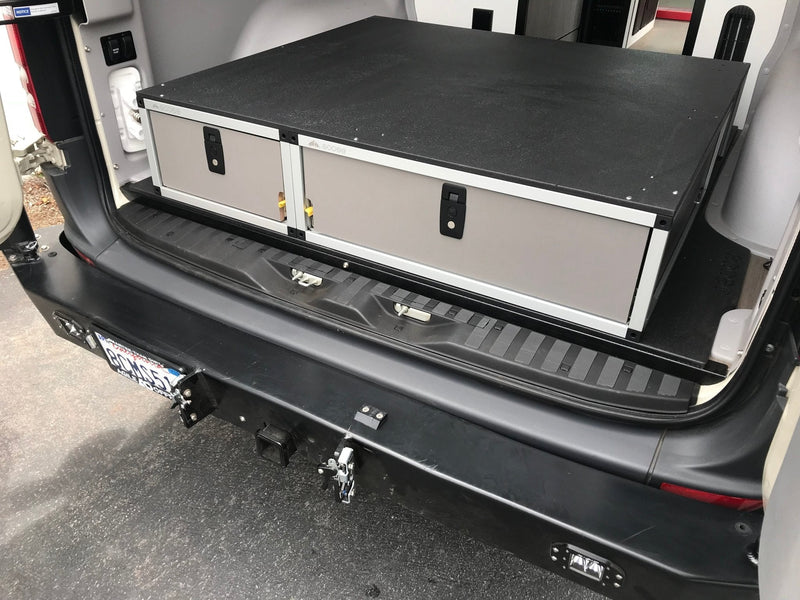

The Winnebago Revel Base Drawer System includes 3 drawer modules and a top plate.
The system is available in two lengths: Short and Long. The short system allows for a flat area of approximately 11" behind the drawers just in front of the rear cargo doors. The long system runs from the bulkhead behind the shower and all the way to the rear cargo doors.
Short System - Measures 48-3/4" wide x 43" deep and is 10-1/2" tall.
Long System - Measures 48-3/4" wide x 54" deep and is 10-1/2" tall.
Short System Specifications:

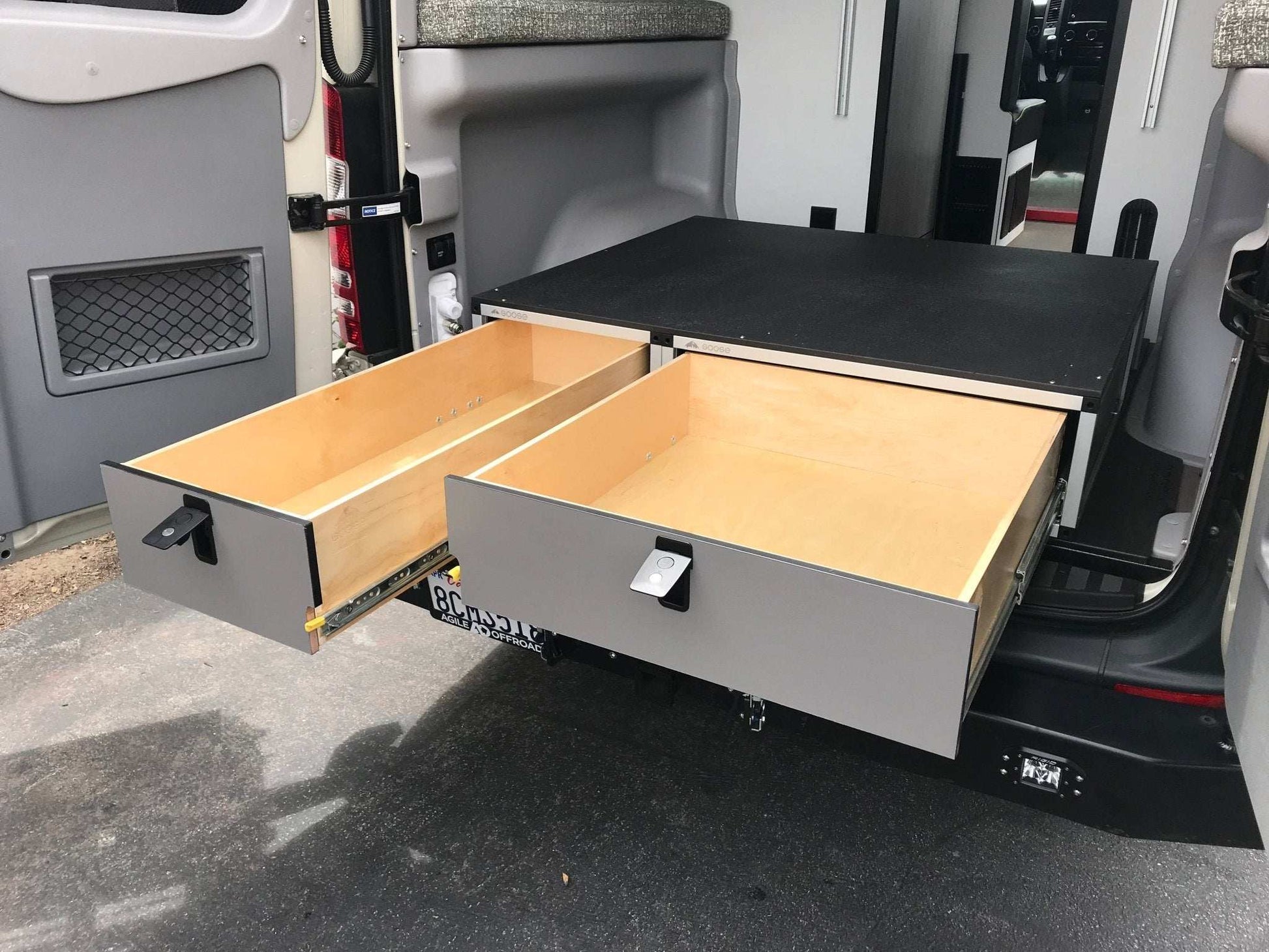

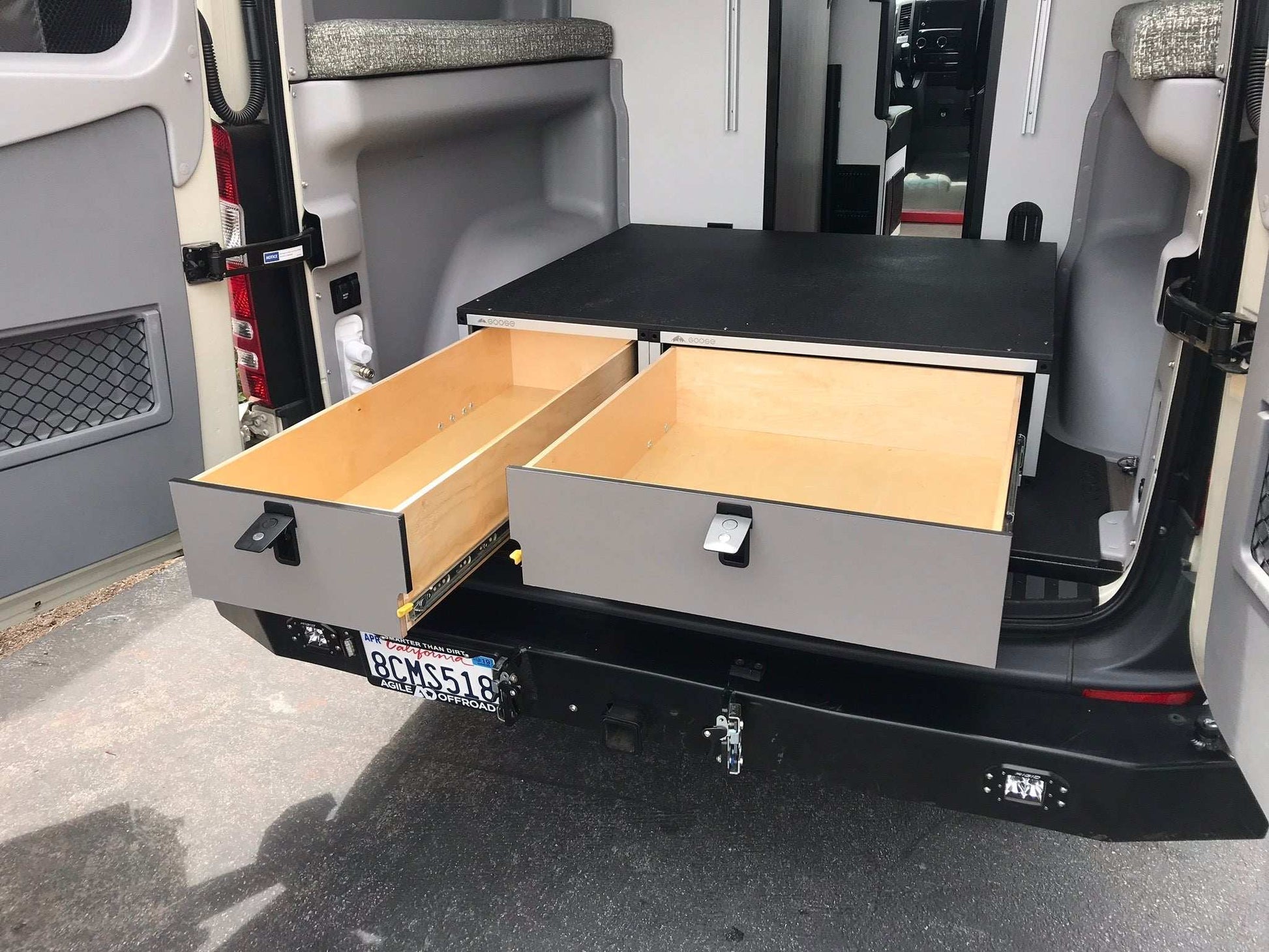

On the drivers side rear there is a drawer featuring 36" lock in / lock out drawer guides as well as a lockable compression latch. This unit measures 18"w x 43"l x 10"h Weight is 51#
On the passengers side rear there is a drawer featuring 28" lock in / lock out drawer guides as well as a lockable compression latch. This unit measures 30-3/4"w x 30"d x 10"h Weight is 49#

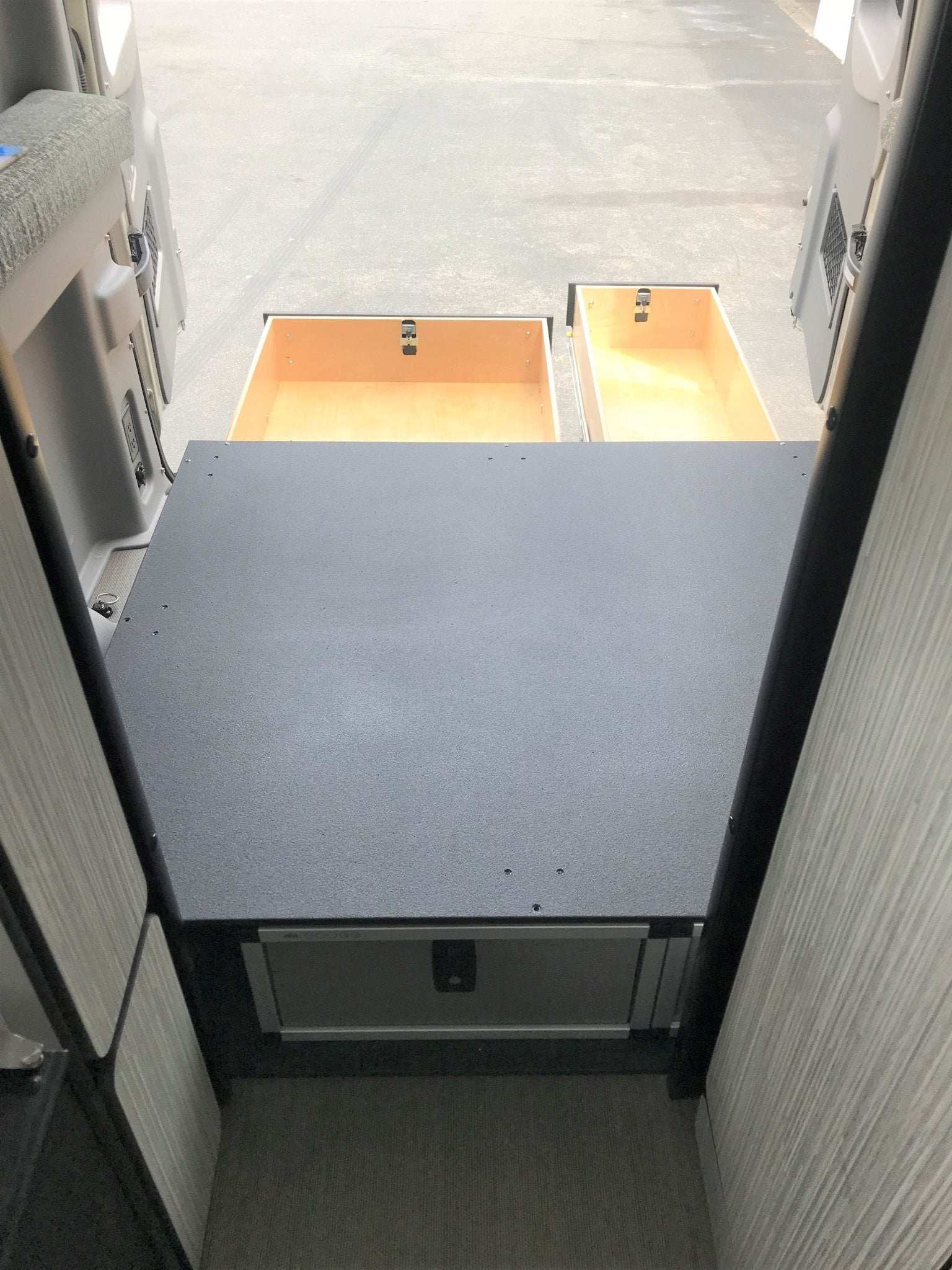

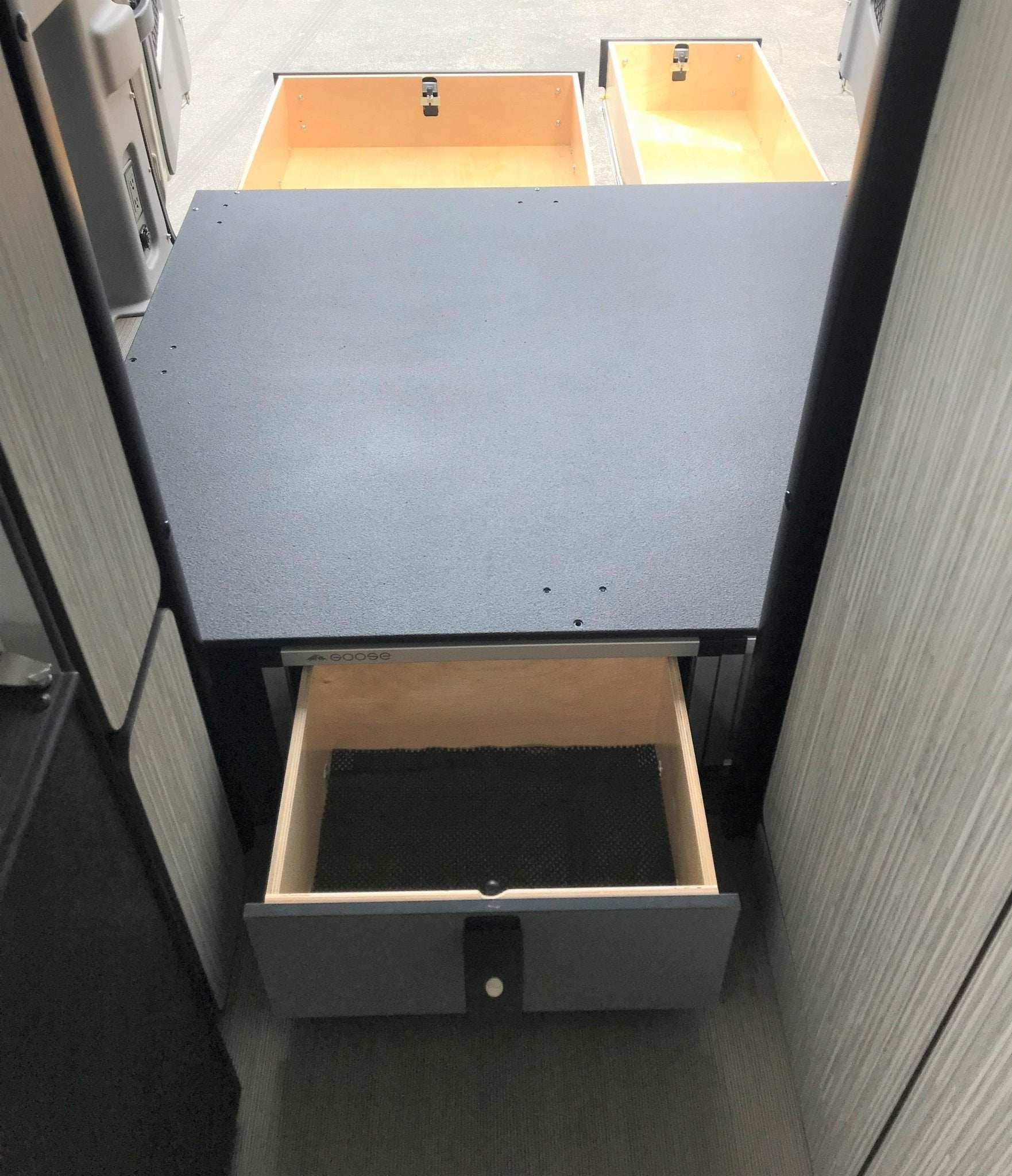

In the middle of the unit, facing forward towards the drivers seat is a drawer featuring 12" heavy duty drawer guides as well as a lockable compression latch. This unit measures 20"w x 13"d x 10"h Weight is 24#
Top Plate weight is 32#
Long System Specifications:
On the drivers side rear there is a drawer 48" featuring lock in / lock out drawer guides as well as a lockable compression latch. This unit measures 18"w x 54"l x 10"h Weight is 58#
On the passengers side rear there is a drawer featuring 36" lock in / lock out drawer guides as well as a lockable compression latch. This unit measures 30-3/4"w x 41"d x 10"h Weight is 56#
In the middle of the unit, facing forward towards the drivers seat is a drawer featuring 12" heavy duty drawer guides as well as a lockable compression latch. This unit measures 20"w x 13"d x 10"h Weight is 24#
Top Plate is 37#
Both systems have a small area that is not encompassed by a drawer to allow for proper heater ventilation.
Both systems are sold as a complete set only and are not open for customization.
Select Black or Gray Drawer Face
This item requires truck freight shipping due to its size. shipping quotes will be provided. Shipping to a residential address can incur a lift gate fee of $125.00. We recommend shipping to a commercial location with a loading dock or forklift.
*Winnebago and Winnebago Revel are Trademarks of Winnebago
