6.5L GM Diesel Fusible Link Glow Plug Harness Connector

Fusible Link Glow Plug Harness Connector for 6.5L Turbodiesels

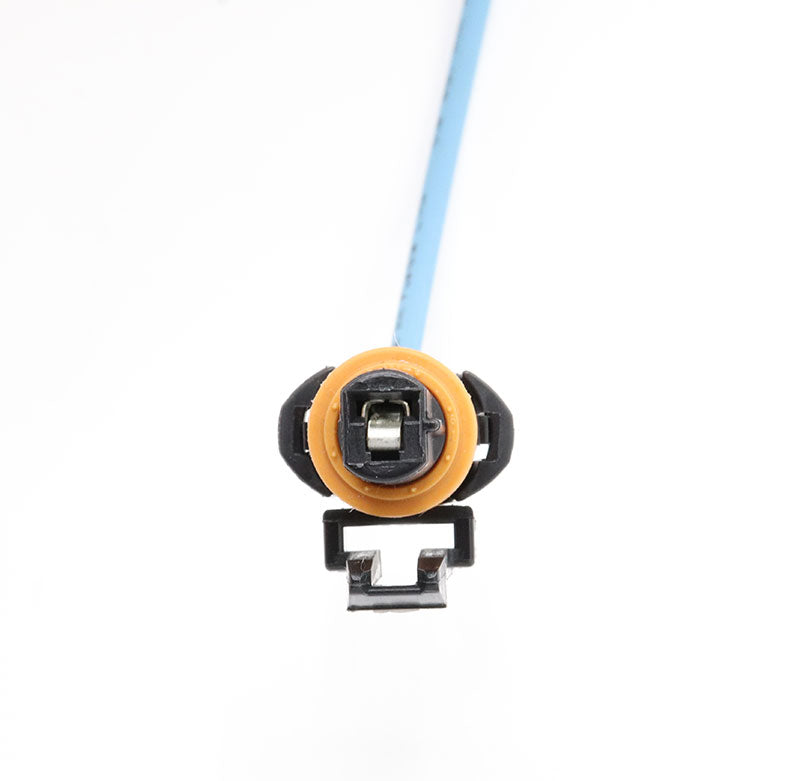

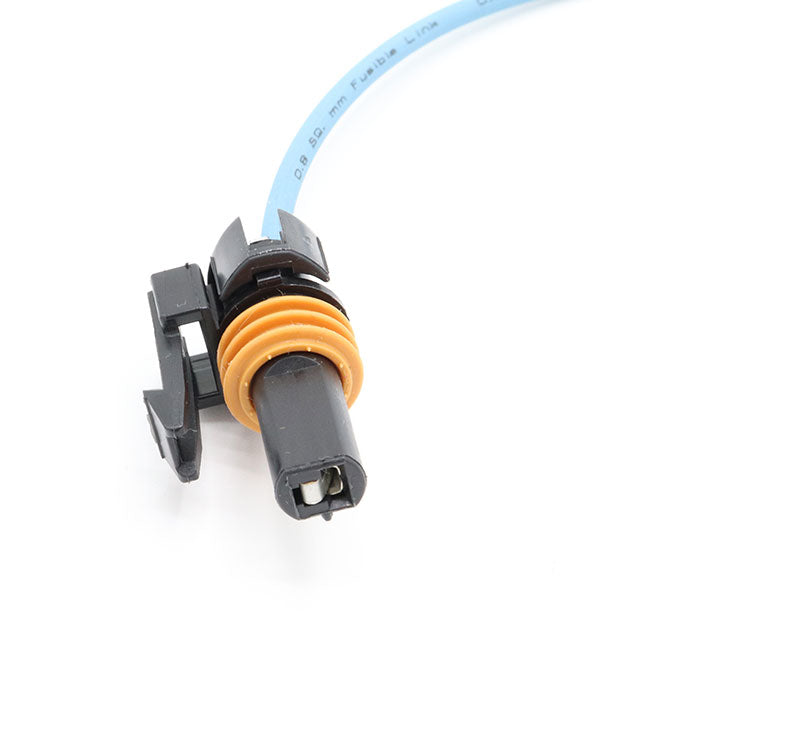

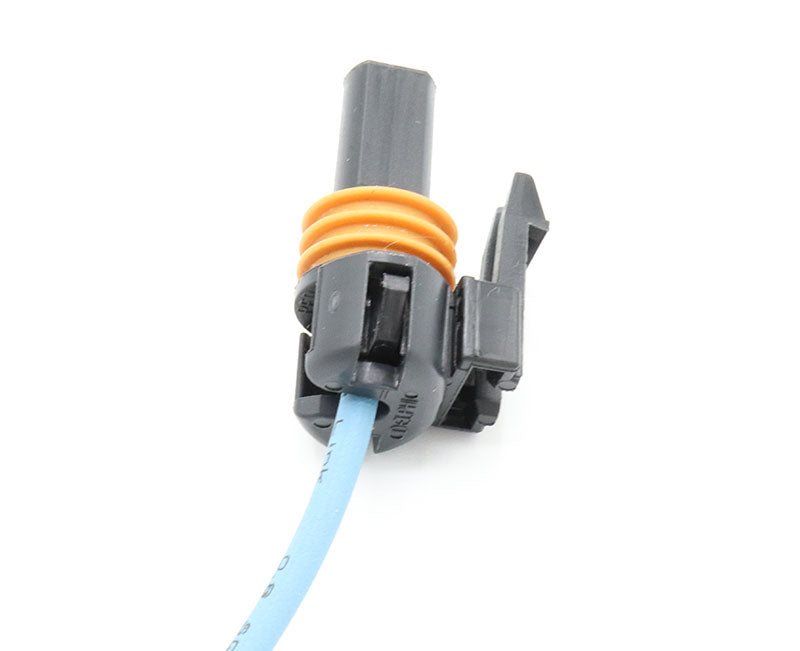

Harness side connector for the glow plug harness extensions found on 6.5L turbodiesels; mates with RT-250701. There are two (2) of these connectors located on the passenger side frame rail. They are accessible through the passenger side wheel well and supply power to the cylinder 4 and 6 harness extensions. These pigtails are assembled using OE fusible link wire (the majority of the glow plug harness on a 6.5L diesel is assembled from fusible link wire).

FEATURES

• Assembled using OEM connector and fusible link wire

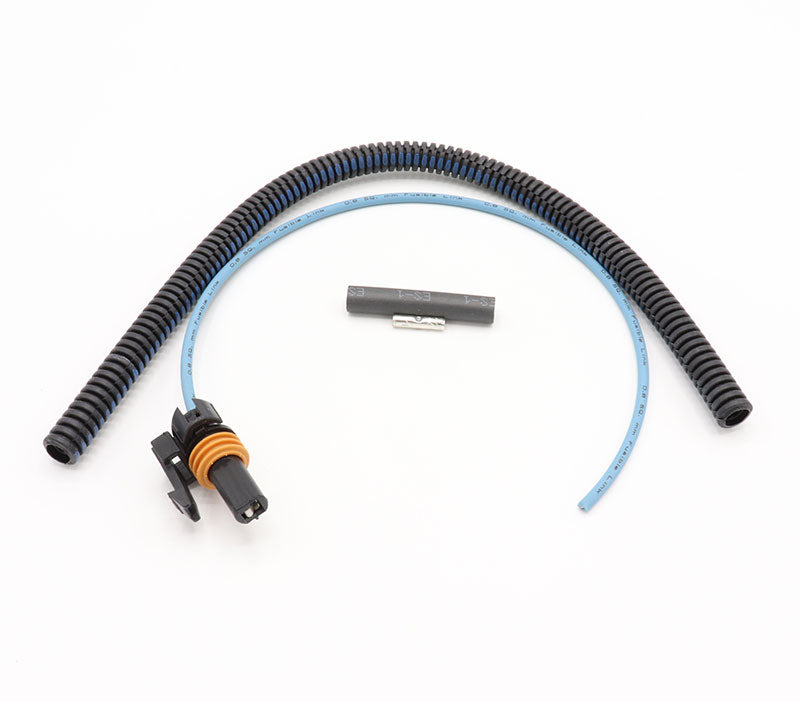

• Includes butt splice, heat shrink, and wire loom for a clean, factory installation
• 12 inch overall length
• Mates with cylinder 4 and 6 glow plug harness extensions, part number RT-250701
• Made in USA

APPLICATIONS

1992 - 1999 Chevrolet/GMC C2500/C3500 & K2500/K3500
1992 - 1998 Chevrolet/GMC C1500 & K1500
1992 - 2002 Chevrolet/GMC C3500HD
1994 - 1999 Chevrolet C2500 & K2500 Suburban
1995 - 1999 Chevrolet C1500 & K1500 Suburban
1995 - 1997 Chevrolet Tahoe
1995 - 1997 GMC Yukon
1996 - 1998 Chevrolet Express 2500/3500
1996 - 1998 GMC Savana 2500/3500

INSTALLATION NOTES

Remove old connector, trim replacement wire to length and splice in place. Butt splice, heat shrink tubing, and wire loom included.
