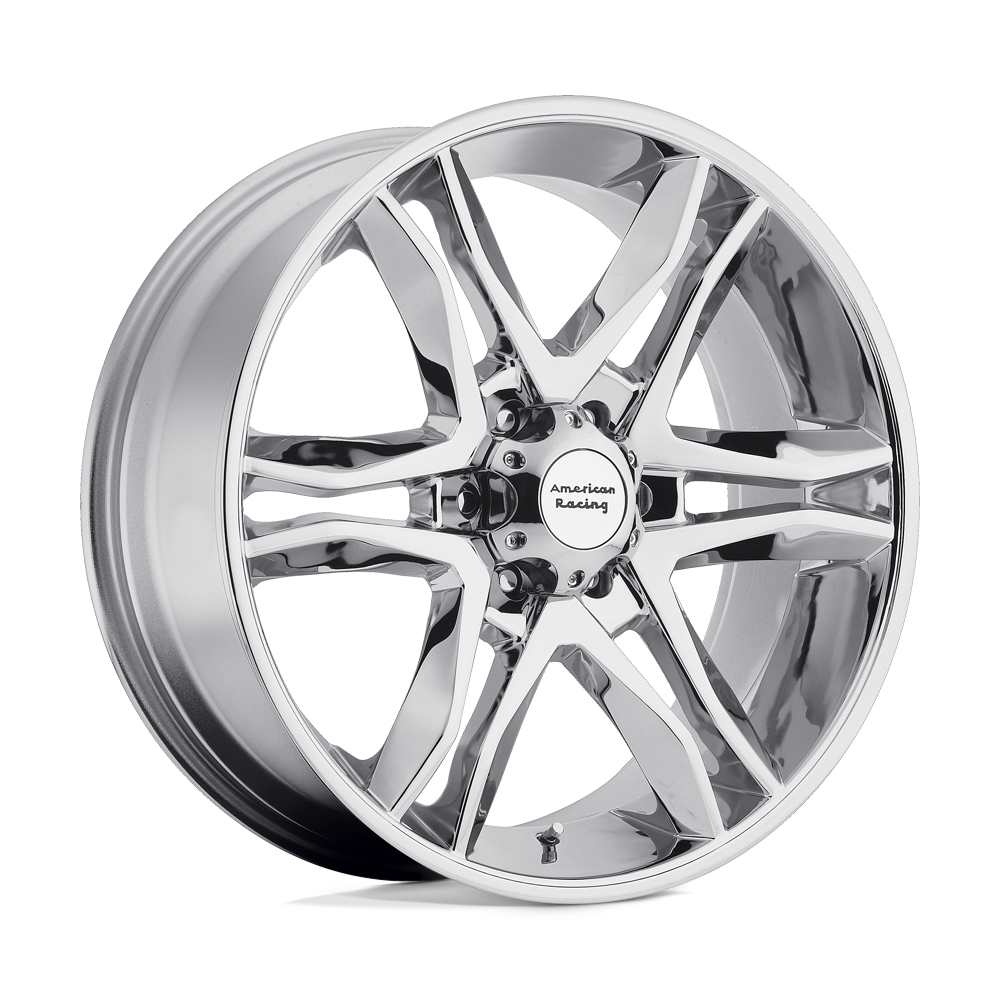

American Racing Ar893 Mainline Chrome
American Racing Ar893 Mainline Chrome
Regular price
$290.40 USD
Regular price
$363.00 USD
Sale price
$290.40 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications chart
| Size | Offset | Bolt Pattern (mm) | Bolt Pattern (in) | Centerbore (mm) | Backspacing | Load rating | Weight (lb) | Model | Color | Finish Warranty | Structural Warranty | Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16"x8" | 00mm | 6X139.7 | 6X5.5 | 106.10mm | 4.50mm | 2500 lbs (1133 kg) | 22.32 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 17"x8" | 25mm | 6X135 | 6X135 | 87.10mm | 5.48mm | 2500 lbs (1133 kg) | 23.50 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 17"x8" | 00mm | 6X139.7 | 6X5.5 | 106.10mm | 4.50mm | 2500 lbs (1133 kg) | 23.82 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 17"x8" | 25mm | 6X139.7 | 6X5.5 | 106.10mm | 5.48mm | 2500 lbs (1133 kg) | 22.87 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 18"x8.5" | 30mm | 6X135 | 6X135 | 87.10mm | 5.93mm | 2500 lbs (1133 kg) | 27.40 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 18"x8.5" | 12mm | 6X139.7 | 6X5.5 | 106.10mm | 5.22mm | 2500 lbs (1133 kg) | 27.37 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 18"x8.5" | 30mm | 6X139.7 | 6X5.5 | 106.10mm | 5.93mm | 2500 lbs (1133 kg) | 26.77 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 20"x8.5" | 35mm | 5X127 | 5X5.0 | 78.10mm | 6.13mm | 2500 lbs (1133 kg) | 34.34 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 20"x8.5" | 15mm | 5X139.7 | 5X5.5 | 108.00mm | 5.34mm | 2500 lbs (1133 kg) | 34.02 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 20"x8.5" | 35mm | 6X135 | 6X135 | 87.10mm | 6.13mm | 2500 lbs (1133 kg) | 34.34 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 20"x8.5" | 15mm | 6X139.7 | 6X5.5 | 106.10mm | 5.34mm | 2500 lbs (1133 kg) | 34.79 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
| 20"x8.5" | 35mm | 6X139.7 | 6X5.5 | 106.10mm | 6.13mm | 2500 lbs (1133 kg) | 33.68 lbs | AR893 MAINLINE | CHROME | One Year | Lifetime | Cast Aluminum |
