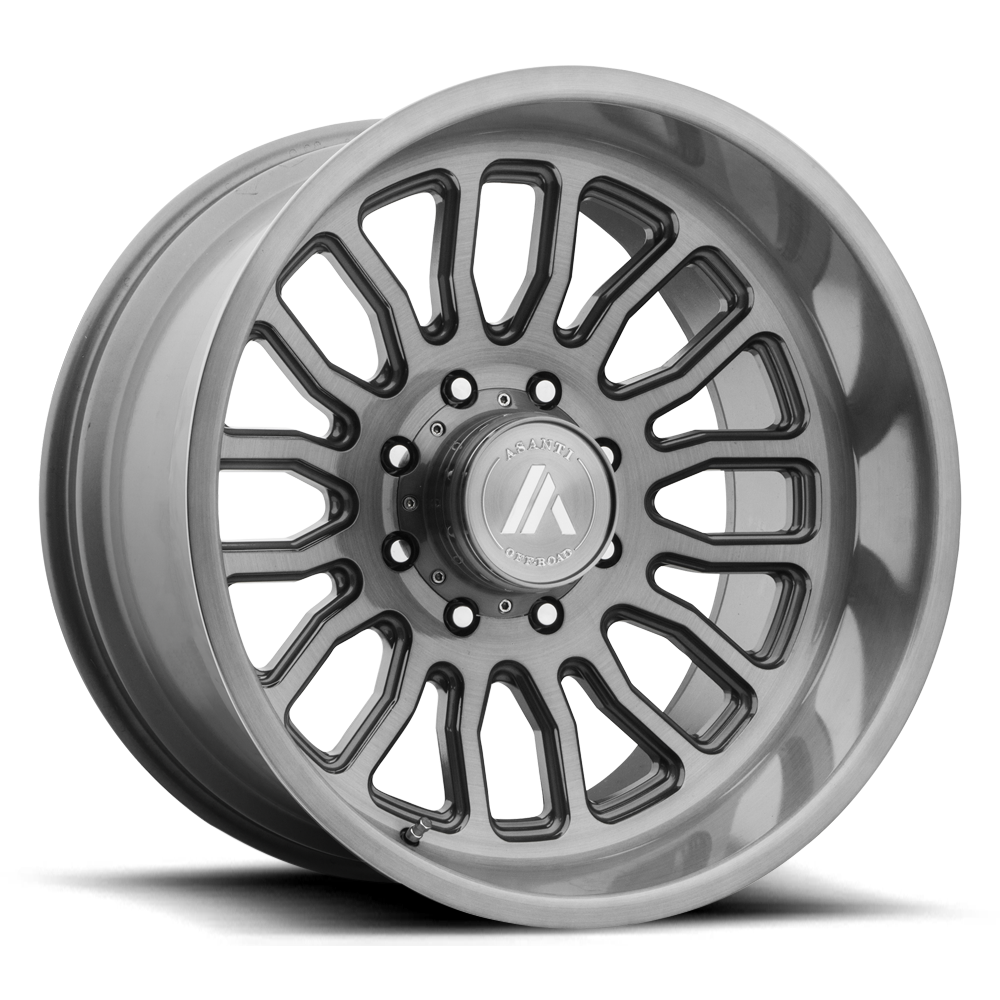

Asanti Off Road Ab815 Workhorse Titanium Brushed

$338.40 USD

~~$423.00 USD~~ $338.40 USD

Sale Sold out

Shipping calculated at checkout.

Wheel Size 20x10 / 5X127 / -12mm offset / 71.5mm centerbore 20x10 / 8X170 / -12mm offset / 125.1mm centerbore 20x10 / 8X180 / -12mm offset / 124.2mm centerbore 20x12 / 5X127 / -40mm offset / 71.5mm centerbore 20x12 / 8X180 / -40mm offset / 124.2mm centerbore 22x10 / 6X135 / -20mm offset / 87.1mm centerbore 22x12 / 5X127 / -40mm offset / 71.5mm centerbore 22x12 / 6X139.7 / -40mm offset / 78.1mm centerbore 22x12 / 8X180 / -40mm offset / 124.2mm centerbore

Quantity

Specifications chart

Size	Offset	Bolt Pattern (mm)	Bolt Pattern (in)	Centerbore (mm)	Backspacing	Load rating	Weight (lb)	Model	Color	Finish Warranty	Structural Warranty	Construction
20"x10"	-12mm	5X127	5X5.0	71.50mm	5.03mm	2600 lbs (1179 kg)	36.33 lbs	AB815 WORKHORSE	TITAN-BRUSH	One Year	Lifetime	Cast Aluminum
20"x10"	-12mm	8X170	8X170	125.10mm	5.03mm	3600 lbs (1632 kg)	36.91 lbs	AB815 WORKHORSE	TITAN-BRUSH	One Year	Lifetime	Cast Aluminum
20"x10"	-12mm	8X180	8X180	124.20mm	5.03mm	3600 lbs (1632 kg)	36.91 lbs	AB815 WORKHORSE	TITAN-BRUSH	One Year	Lifetime	Cast Aluminum
20"x12"	-40mm	5X127	5X5.0	71.50mm	4.93mm	2600 lbs (1179 kg)	38.47 lbs	AB815 WORKHORSE	TITAN-BRUSH	One Year	Lifetime	Cast Aluminum
20"x12"	-40mm	8X180	8X180	124.20mm	4.93mm	3600 lbs (1632 kg)	39.66 lbs	AB815 WORKHORSE	TITAN-BRUSH	One Year	Lifetime	Cast Aluminum
22"x10"	-20mm	6X135	6X135	87.10mm	4.71mm	2600 lbs (1179 kg)	41.98 lbs	AB815 WORKHORSE	TITAN-BRUSH	One Year	Lifetime	Cast Aluminum
22"x12"	-40mm	5X127	5X5.0	71.50mm	4.93mm	2600 lbs (1179 kg)	44.82 lbs	AB815 WORKHORSE	TITAN-BRUSH	One Year	Lifetime	Cast Aluminum
22"x12"	-40mm	6X139.7	6X5.5	78.10mm	4.93mm	2600 lbs (1179 kg)	43.21 lbs	AB815 WORKHORSE	TITAN-BRUSH	One Year	Lifetime	Cast Aluminum
22"x12"	-40mm	8X180	8X180	124.20mm	4.93mm	3600 lbs (1632 kg)	45.52 lbs	AB815 WORKHORSE	TITAN-BRUSH	One Year	Lifetime	Cast Aluminum
