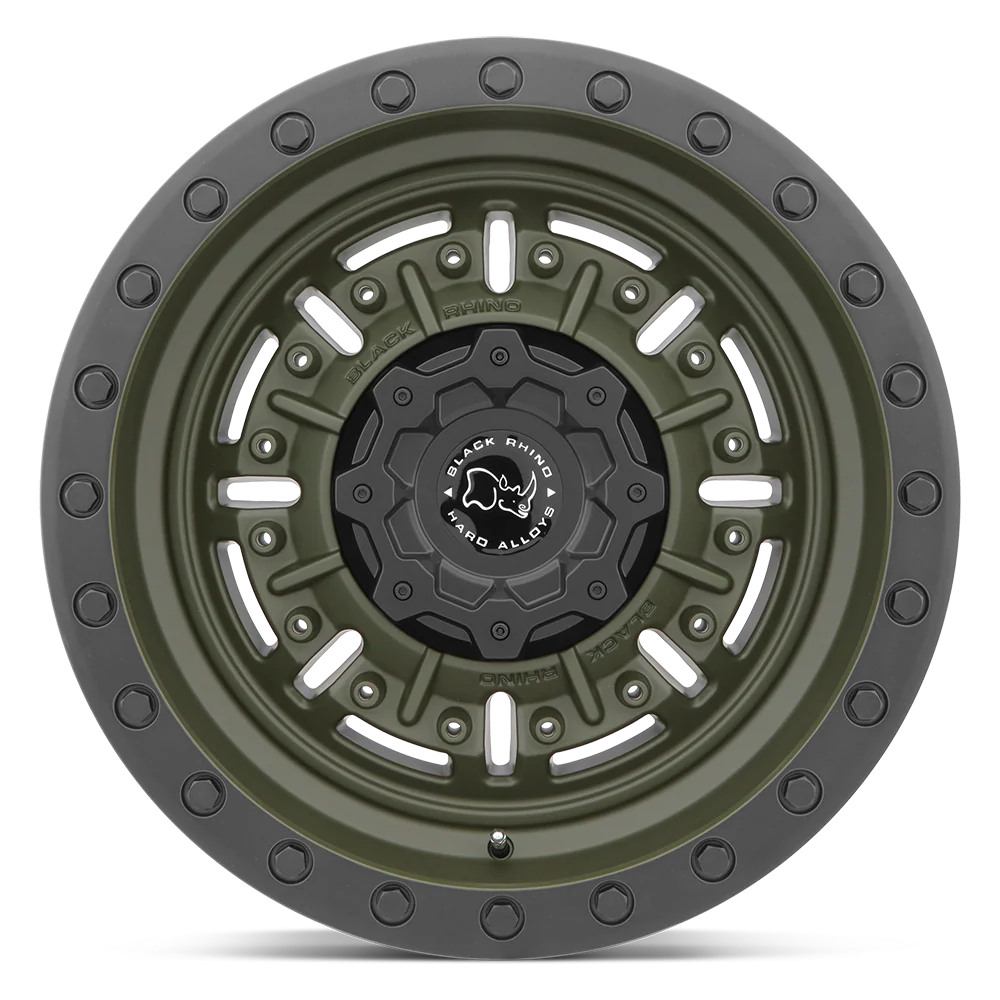

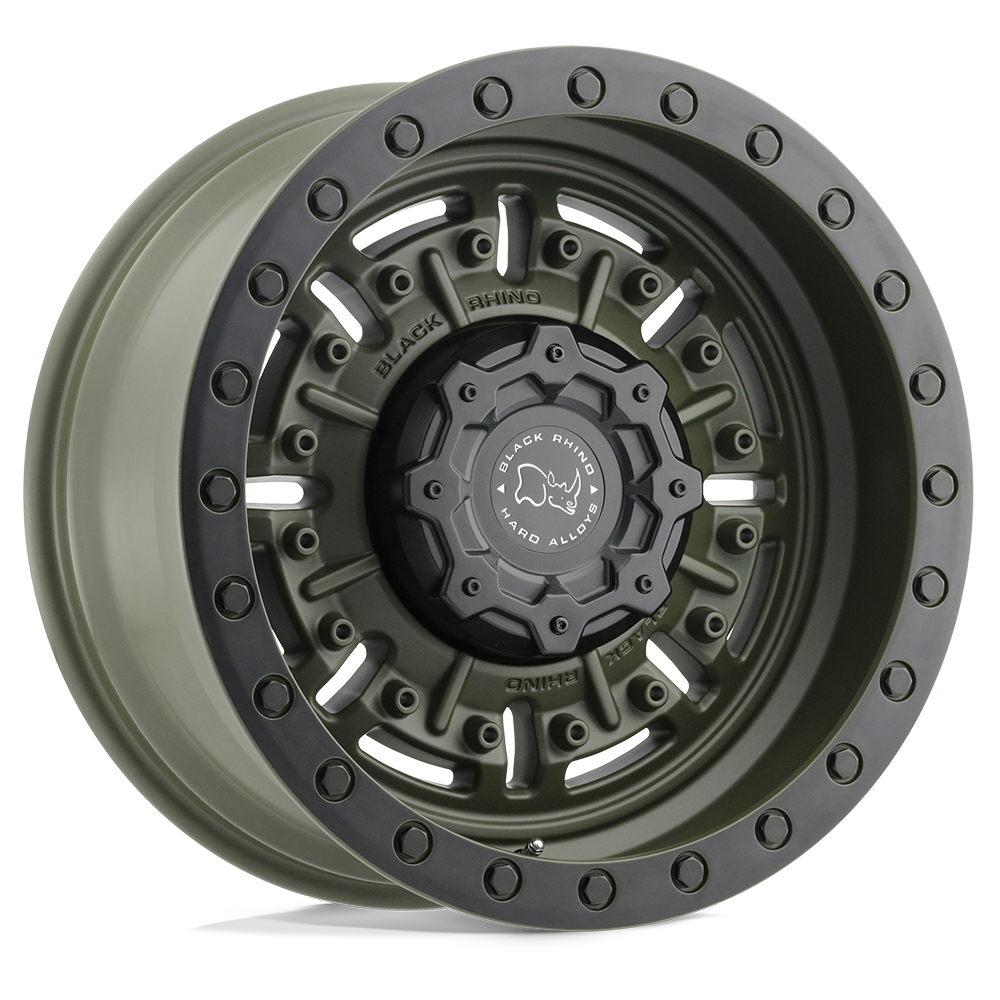

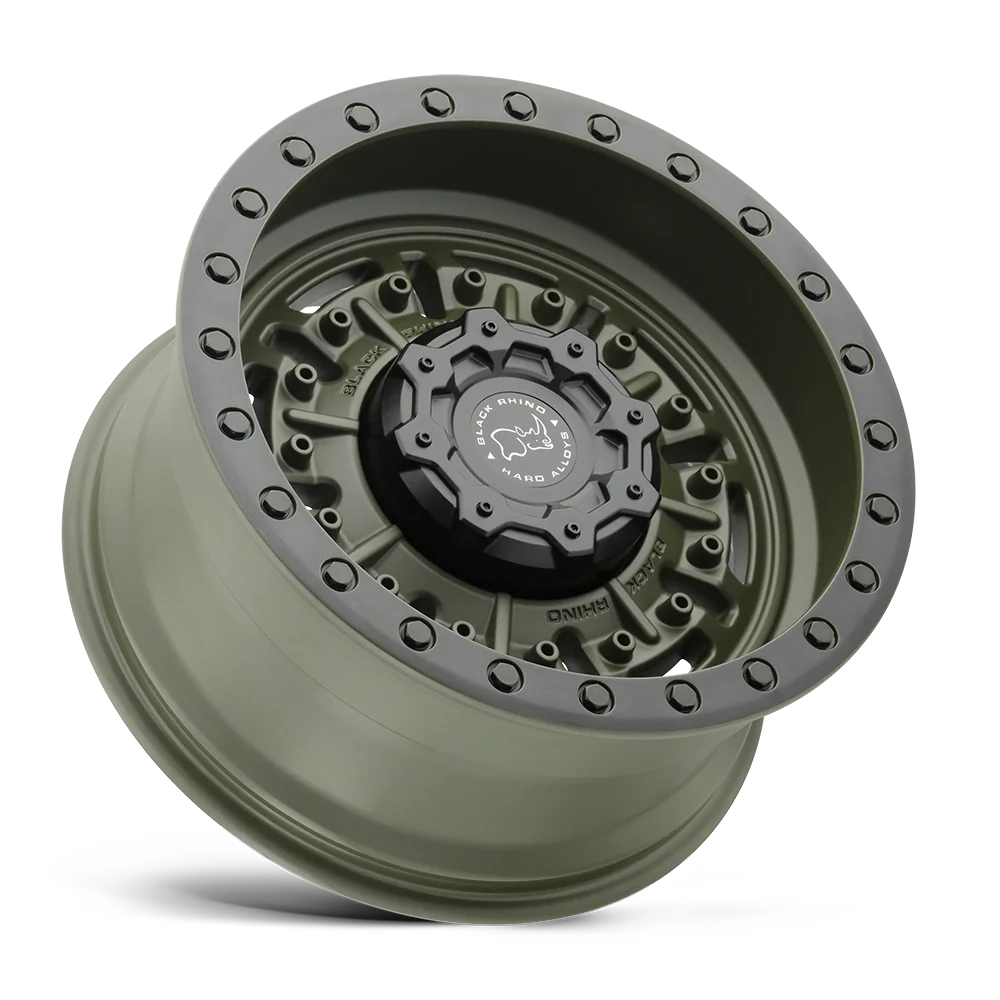

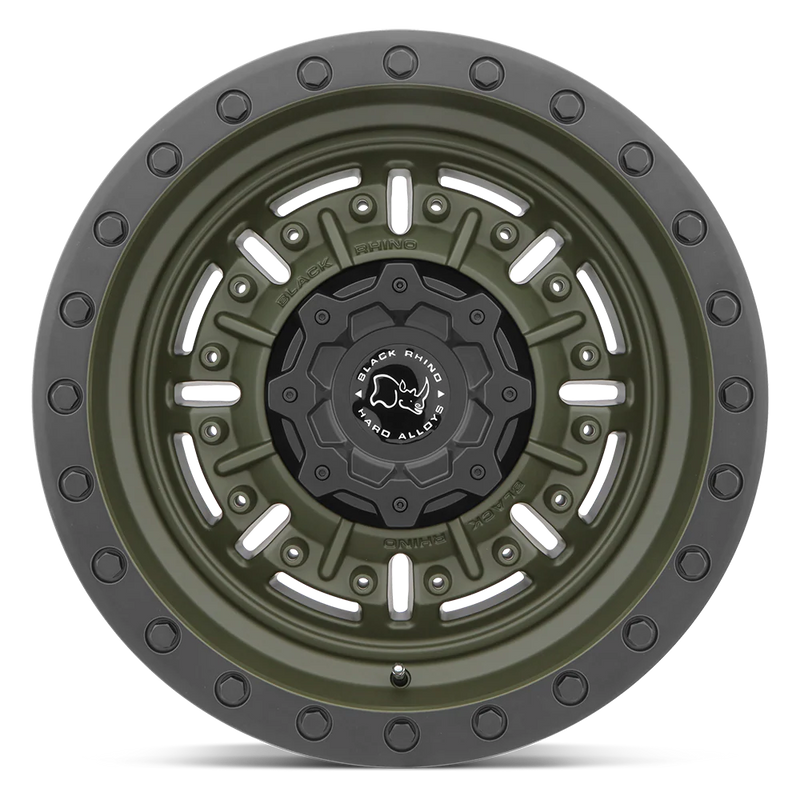

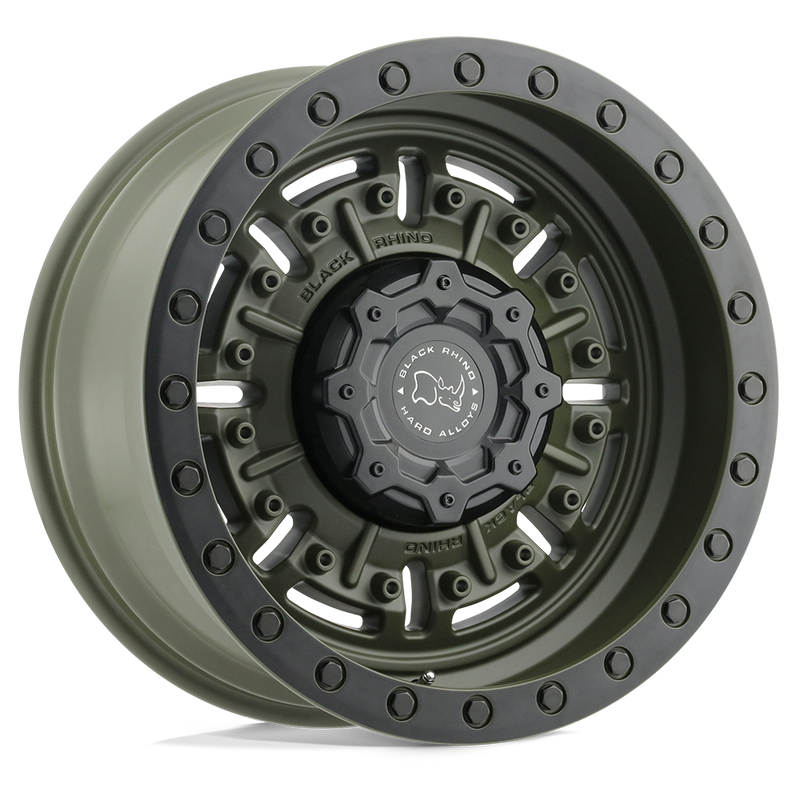

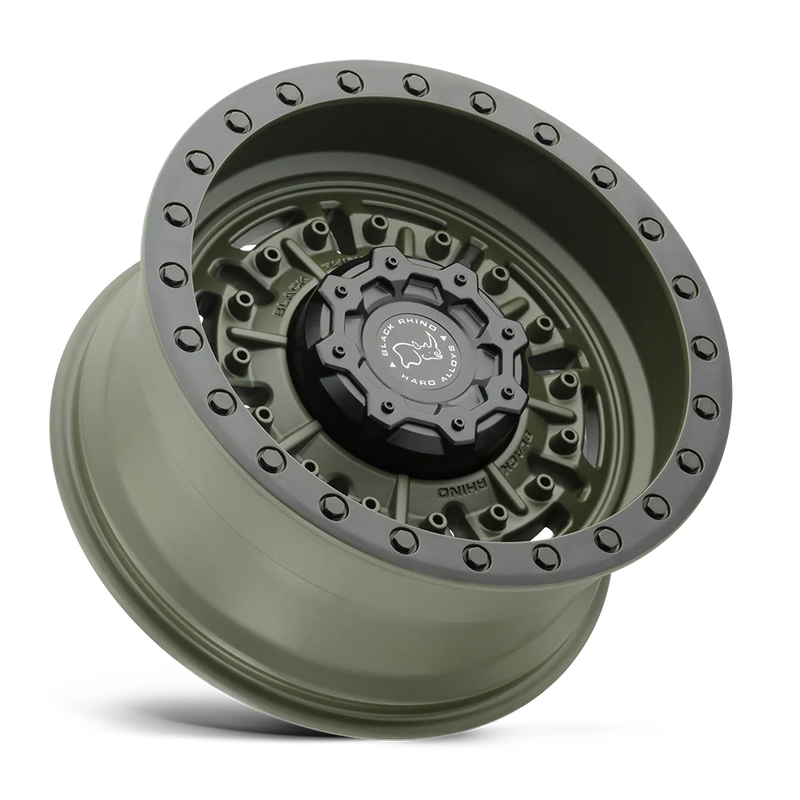

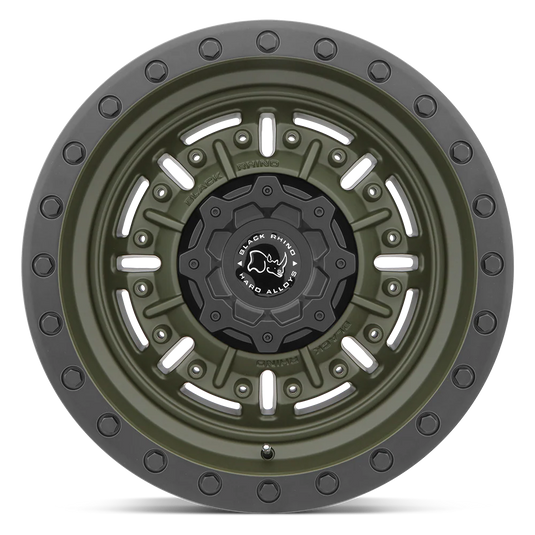

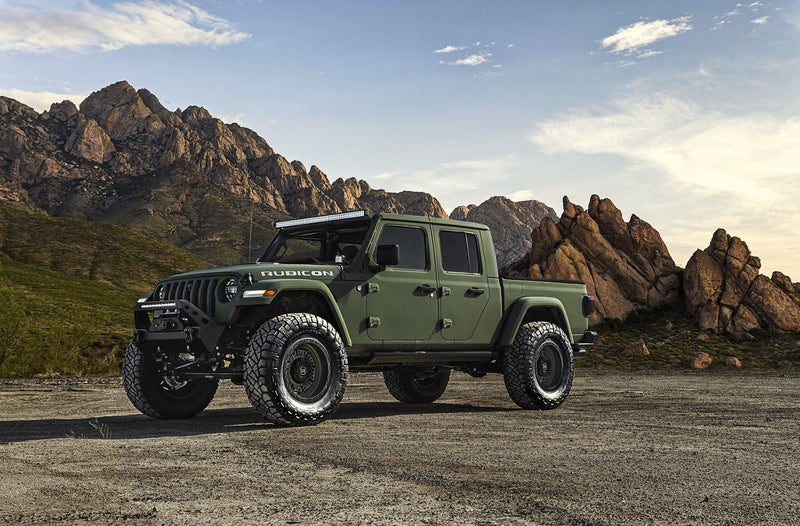

Black Rhino Hard Alloys Abrams Olive Drab Green
Black Rhino Hard Alloys Abrams Olive Drab Green
Couldn't load pickup availability

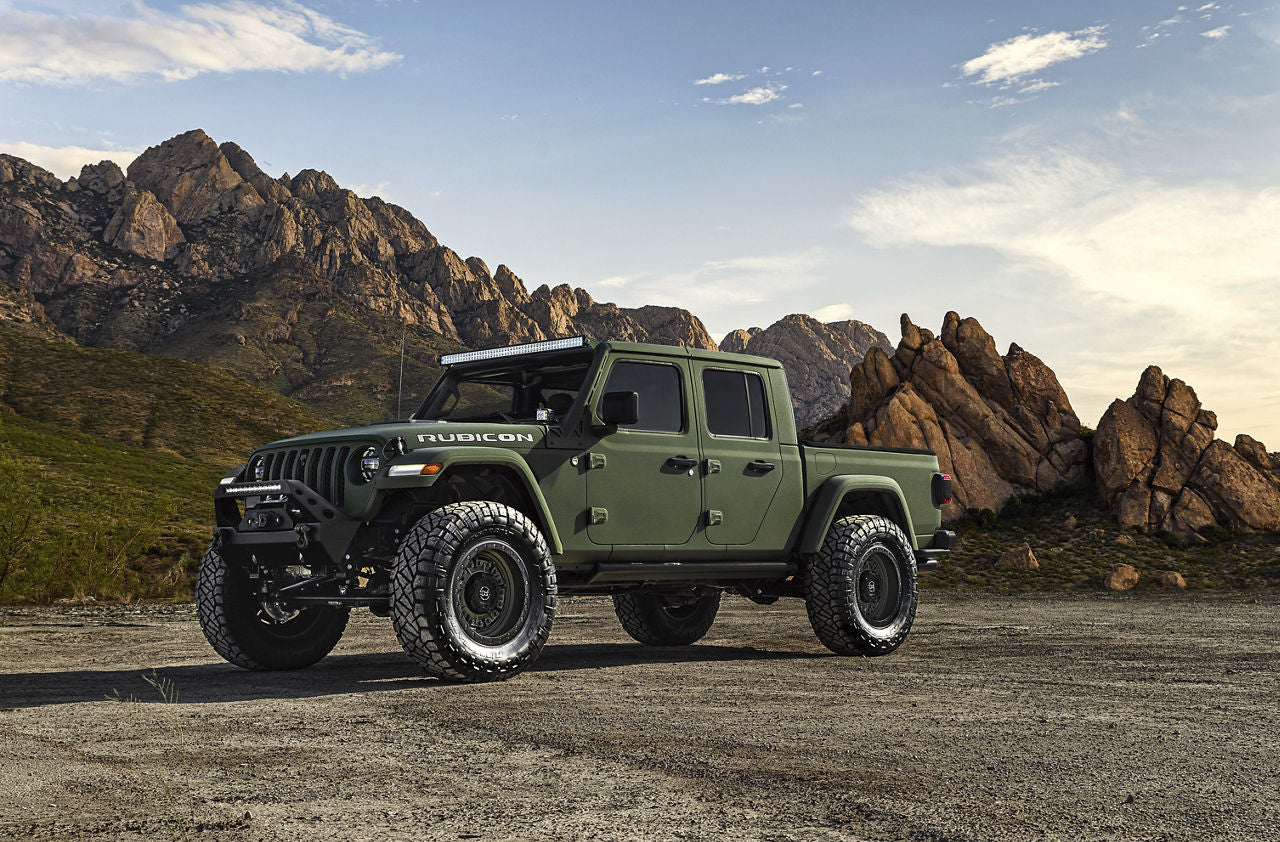

Evolving from our successful Armory and Arsenal mil-spec styles, the Abrams features the burliest and most rugged elements of all the Black Rhino truck wheels. With all this style firepower, it was only fitting that the Abrams wheel be named after the heavily armored M1 Abrams tank. An aggressive, deep lip is available on all 17”, 18”, and 20” Abrams wheel fitments to enhance the look of any heavy-duty off-road truck. The Abrams is a no-compromise wheel with tailored wheel fitments exclusively engineered for 5x127 Jeeps and 8-lug trucks in a -18mm offset. Additional 5-lug and 6-lug truck fitments are also available for more niche market trucks including 5x130, 5x150, 6x114.3, 6x120, 6x135, and 6x139.7 (6x5.5).
Specifications chart
| Size | Offset | Bolt Pattern (mm) | Bolt Pattern (in) | Centerbore (mm) | Backspacing | Load rating | Weight (lb) | Model | Color | Finish Warranty | Structural Warranty | Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17"x8.5" | -18mm | 6X139.7 | 6X5.5 | 112.10mm | 4.04mm | 2500 lbs (1133 kg) | 31.99 lbs | ABRAMS | OD-GRN | One Year | Lifetime | Cast Aluminum |
| 17"x8.5" | 0mm | 6X139.7 | 6X5.5 | 112.10mm | 4.75mm | 2500 lbs (1133 kg) | 30.67 lbs | ABRAMS | OD-GRN | One Year | Lifetime | Cast Aluminum |
| 17"x9.5" | -18mm | 5X127 | 5X5.0 | 71.50mm | 4.54mm | 2250 lbs (1020 kg) | 35.49 lbs | ABRAMS | OD-GRN | One Year | Lifetime | Cast Aluminum |
| 18"x9.5" | -18mm | 5X127 | 5X5.0 | 71.50mm | 4.54mm | 2250 lbs (1020 kg) | 35.71 lbs | ABRAMS | OD-GRN | One Year | Lifetime | Cast Aluminum |
| 18"x9.5" | -18mm | 6X139.7 | 6X5.5 | 112.10mm | 4.54mm | 2500 lbs (1133 kg) | 34.83 lbs | ABRAMS | OD-GRN | One Year | Lifetime | Cast Aluminum |
| 18"x9.5" | 12mm | 6X139.7 | 6X5.5 | 112.10mm | 5.72mm | 2500 lbs (1133 kg) | 32.63 lbs | ABRAMS | OD-GRN | One Year | Lifetime | Cast Aluminum |
| 20"x9.5" | -18mm | 5X127 | 5X5.0 | 71.50mm | 4.54mm | 2250 lbs (1020 kg) | 42.98 lbs | ABRAMS | OD-GRN | One Year | Lifetime | Cast Aluminum |
| 20"x9.5" | 12mm | 6X139.7 | 6X5.5 | 112.10mm | 5.72mm | 2500 lbs (1133 kg) | 39.15 lbs | ABRAMS | OD-GRN | One Year | Lifetime | Cast Aluminum |
