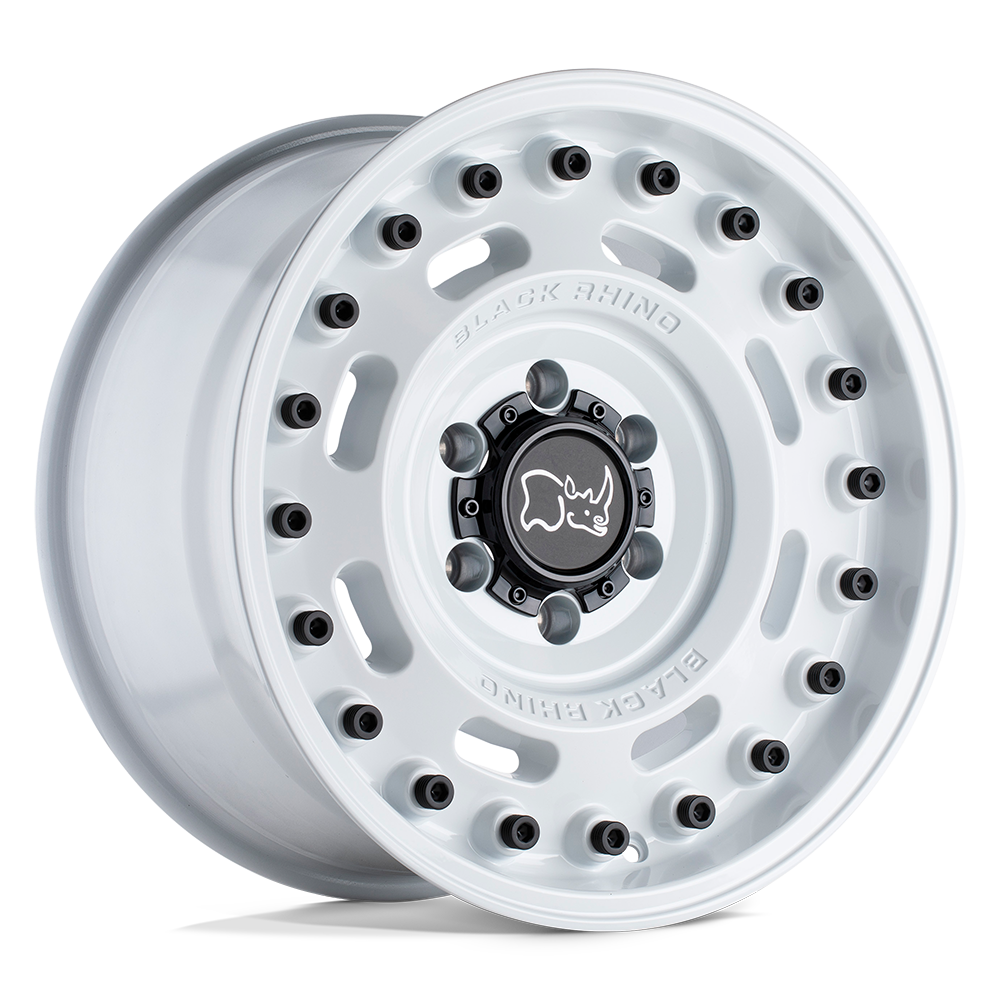

Black Rhino Hard Alloys Axle Gloss White
Black Rhino Hard Alloys Axle Gloss White
Regular price
$248.00 USD
Regular price
$310.00 USD
Sale price
$248.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications chart
| Size | Offset | Bolt Pattern (mm) | Bolt Pattern (in) | Centerbore (mm) | Backspacing | Load rating | Weight (lb) | Model | Color | Finish Warranty | Structural Warranty | Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17"x9.5" | -18mm | 5X127 | 5X5.0 | 71.50mm | 4.54mm | 2450 lbs (1111 kg) | 33.50 lbs | AXLE | G-WHT | One Year | Lifetime | Cast Aluminum |
| 17"x9.5" | -18mm | 6X139.7 | 6X5.5 | 112.10mm | 4.54mm | 2450 lbs (1111 kg) | 34.40 lbs | AXLE | G-WHT | One Year | Lifetime | Cast Aluminum |
| 17"x9.5" | 6mm | 6X139.7 | 6X5.5 | 112.10mm | 5.49mm | 2450 lbs (1111 kg) | 33.10 lbs | AXLE | G-WHT | One Year | Lifetime | Cast Aluminum |
| 18"x9.5" | -18mm | 5X127 | 5X5.0 | 71.50mm | 4.54mm | 2450 lbs (1111 kg) | 35.70 lbs | AXLE | G-WHT | One Year | Lifetime | Cast Aluminum |
| 18"x9.5" | -18mm | 6X139.7 | 6X5.5 | 112.10mm | 4.54mm | 2450 lbs (1111 kg) | 37.50 lbs | AXLE | G-WHT | One Year | Lifetime | Cast Aluminum |
| 20"x9.5" | 25mm | 5X120 | 5X120 | 72.56mm | 6.23mm | 2450 lbs (1111 kg) | 44.30 lbs | AXLE | G-WHT | One Year | Lifetime | Cast Aluminum |
| 20"x9.5" | -18mm | 5X127 | 5X5.0 | 71.50mm | 4.54mm | 2450 lbs (1111 kg) | 45.90 lbs | AXLE | G-WHT | One Year | Lifetime | Cast Aluminum |
| 20"x9.5" | 25mm | 5X130 | 5X130 | 84.10mm | 6.23mm | 2450 lbs (1111 kg) | 44.10 lbs | AXLE | G-WHT | One Year | Lifetime | Cast Aluminum |
| 20"x9.5" | -18mm | 6X139.7 | 6X5.5 | 112.10mm | 4.54mm | 2450 lbs (1111 kg) | 46.70 lbs | AXLE | G-WHT | One Year | Lifetime | Cast Aluminum |
| 20"x9.5" | 6mm | 6X139.7 | 6X5.5 | 112.10mm | 5.49mm | 2450 lbs (1111 kg) | 45.20 lbs | AXLE | G-WHT | One Year | Lifetime | Cast Aluminum |
