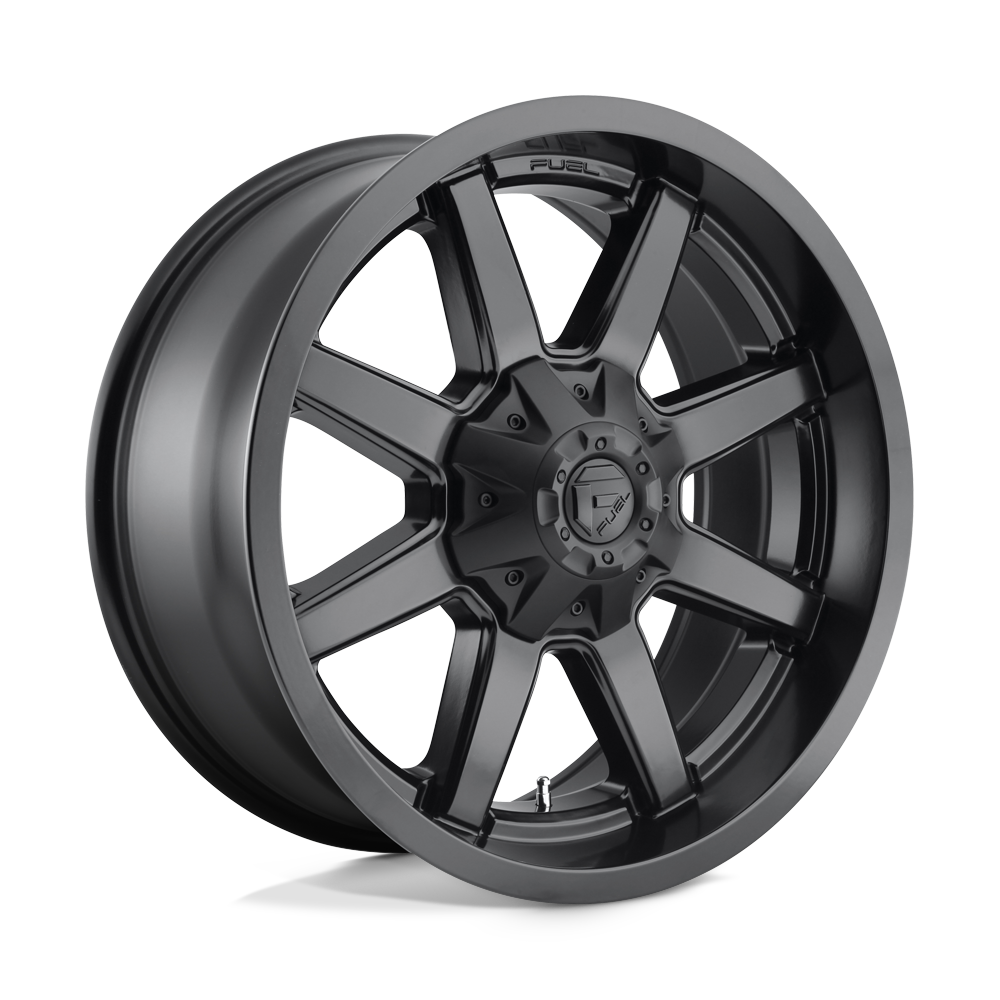

Fuel 1 Pc D436 Maverick Satin Black
Fuel 1 Pc D436 Maverick Satin Black
Regular price
$325.00 USD
Regular price
$325.00 USD
Sale price
$325.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications chart
| Size | Offset | Bolt Pattern (mm) | Bolt Pattern (in) | Centerbore (mm) | Backspacing | Load rating | Weight (lb) | Model | Color | Finish Warranty | Structural Warranty | Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17"x8.5" | 25mm | 5X110/5X127 | 5X110/5.0 | 72.56mm | 5.73mm | 1900 lbs (861 kg) | 27.10 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 17"x8.5" | 25mm | 6X120 | 6X120 | 67.06mm | 5.73mm | 1900 lbs (861 kg) | 27.10 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 17"x9" | -12mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.53mm | 2500 lbs (1133 kg) | 30.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 17"x9" | 1mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.04mm | 2500 lbs (1133 kg) | 30.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 17"x9" | 20mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.79mm | 2500 lbs (1133 kg) | 30.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 20mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.79mm | 2500 lbs (1133 kg) | 31.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 19mm | 6X120/6X139.7 | 6X120/5.5 | 78.10mm | 5.75mm | 2500 lbs (1133 kg) | 33.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | -12mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.53mm | 2500 lbs (1133 kg) | 31.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | -13mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.49mm | 2500 lbs (1133 kg) | 33.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 13mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.51mm | 2500 lbs (1133 kg) | 31.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 20mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.79mm | 2500 lbs (1133 kg) | 31.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | -12mm | 8X165.1 | 8X6.5 | 125.10mm | 4.53mm | 3700 lbs (1678 kg) | 31.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 20mm | 8X165.1 | 8X6.5 | 125.10mm | 5.79mm | 3700 lbs (1678 kg) | 31.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 1mm | 8X170 | 8X170 | 125.10mm | 5.04mm | 3700 lbs (1678 kg) | 31.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 1mm | 8X180 | 8X180 | 124.20mm | 5.04mm | 3700 lbs (1678 kg) | 31.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 20mm | 8X180 | 8X180 | 124.20mm | 5.79mm | 3700 lbs (1678 kg) | 31.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -12mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.03mm | 2500 lbs (1133 kg) | 41.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.79mm | 2500 lbs (1133 kg) | 41.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -24mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.56mm | 2500 lbs (1133 kg) | 41.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -12mm | 8X165.1 | 8X6.5 | 125.10mm | 5.03mm | 3700 lbs (1678 kg) | 41.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 8X165.1 | 8X6.5 | 125.10mm | 4.79mm | 3700 lbs (1678 kg) | 41.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -12mm | 8X170 | 8X170 | 125.10mm | 5.03mm | 3700 lbs (1678 kg) | 41.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 8X170 | 8X170 | 125.10mm | 4.79mm | 3700 lbs (1678 kg) | 41.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -12mm | 8X180 | 8X180 | 124.20mm | 5.03mm | 3700 lbs (1678 kg) | 41.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 8X180 | 8X180 | 124.20mm | 4.79mm | 3700 lbs (1678 kg) | 41.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x12" | -44mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.77mm | 2500 lbs (1133 kg) | 44.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x12" | -44mm | 8X165.1 | 8X6.5 | 125.10mm | 4.77mm | 3700 lbs (1678 kg) | 44.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x12" | -44mm | 8X170 | 8X170 | 125.10mm | 4.77mm | 3700 lbs (1678 kg) | 44.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x14" | -76mm | 8X165.1 | 8X6.5 | 125.10mm | 4.51mm | 3500 lbs (1587 kg) | 47.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x14" | -76mm | 8X170 | 8X170 | 125.10mm | 4.51mm | 3500 lbs (1587 kg) | 47.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x8.25" | -202mm | 10X225 | 10X225 | 170.10mm | -3.33mm | 3000 lbs (1360 kg) | 46.70 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x8.25" | 105mm | 10X225 | 10X225 | 170.10mm | 8.76mm | 3000 lbs (1360 kg) | 37.50 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x8.25" | -215mm | 8X165.1 | 8X6.5 | 121.50mm | -3.84mm | 2500 lbs (1133 kg) | 42.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x8.25" | -240mm | 8X165.1 | 8X6.5 | 121.50mm | -4.82mm | 2500 lbs (1133 kg) | 45.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x8.25" | 122mm | 8X165.1 | 8X6.5 | 121.50mm | 9.43mm | 3000 lbs (1360 kg) | 38.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x8.25" | -201mm | 8X200 | 8X200 | 142.00mm | -3.29mm | 3000 lbs (1360 kg) | 45.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x8.25" | 122mm | 8X200 | 8X200 | 142.00mm | 9.43mm | 3000 lbs (1360 kg) | 38.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x8.25" | -221mm | 8X210 | 8X210 | 154.30mm | -4.08mm | 3000 lbs (1360 kg) | 45.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x8.25" | 122mm | 8X210 | 8X210 | 154.30mm | 9.43mm | 3000 lbs (1360 kg) | 38.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.79mm | 2500 lbs (1133 kg) | 37.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.04mm | 2500 lbs (1133 kg) | 37.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 19mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.75mm | 2500 lbs (1133 kg) | 38.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.79mm | 2500 lbs (1133 kg) | 37.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 8X165.1 | 8X6.5 | 125.10mm | 5.79mm | 3700 lbs (1678 kg) | 37.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 8X170 | 8X170 | 125.10mm | 5.04mm | 3700 lbs (1678 kg) | 37.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 8X170 | 8X170 | 125.10mm | 5.79mm | 3700 lbs (1678 kg) | 37.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 8X180 | 8X180 | 124.20mm | 5.79mm | 3700 lbs (1678 kg) | 37.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 22"x12" | -44mm | 5X127/5X139.7 | 5X5.0/5.5 | 87.10mm | 4.77mm | 2500 lbs (1133 kg) | 49.80 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 22"x12" | -44mm | 8X165.1 | 8X6.5 | 125.10mm | 4.77mm | 3700 lbs (1678 kg) | 49.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 22"x12" | -44mm | 8X170 | 8X170 | 125.10mm | 4.77mm | 3700 lbs (1678 kg) | 49.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
| 22"x9.5" | 20mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 6.04mm | 2500 lbs (1133 kg) | 40.00 lbs | D436 MAVERICK | S-BLK | One Year | Lifetime | Cast Aluminum |
