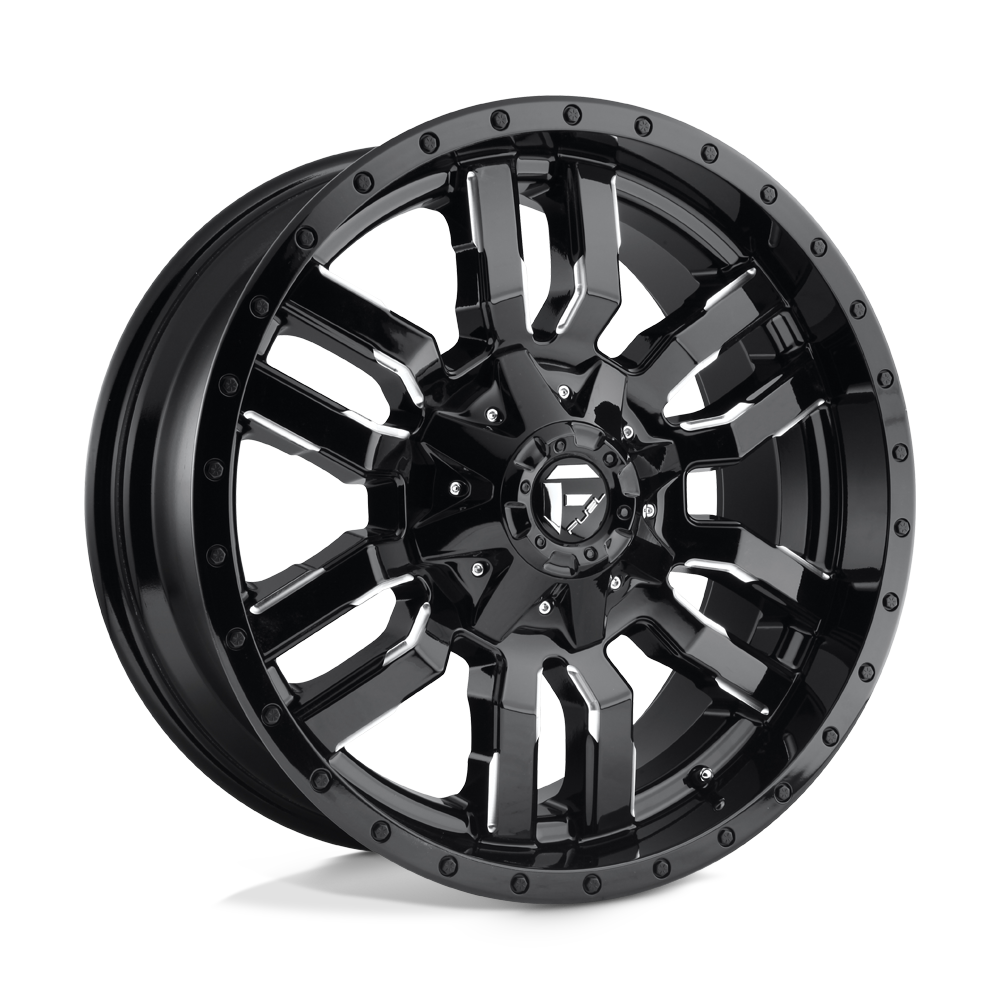

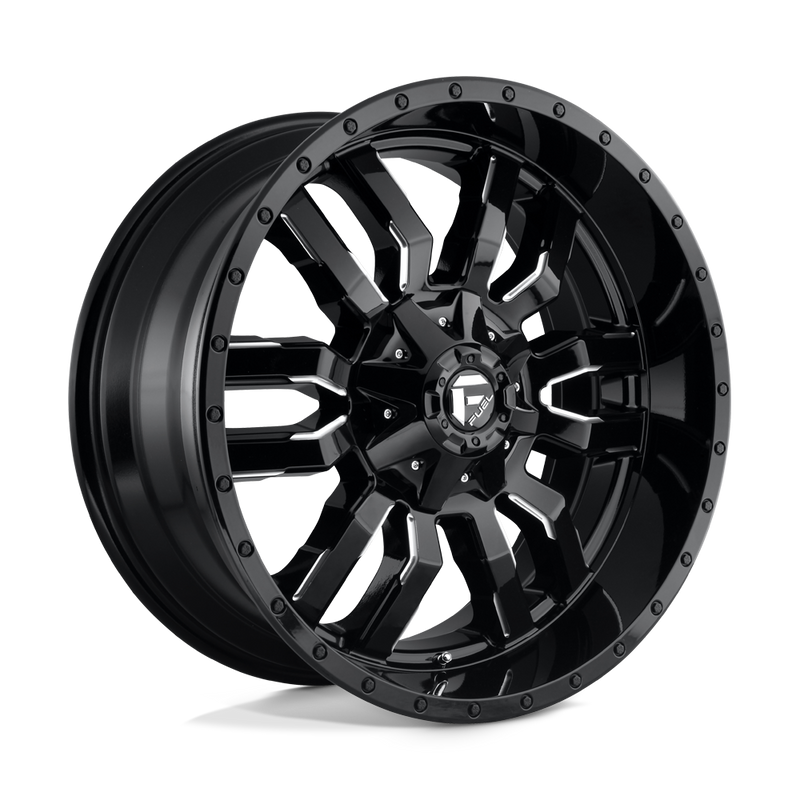

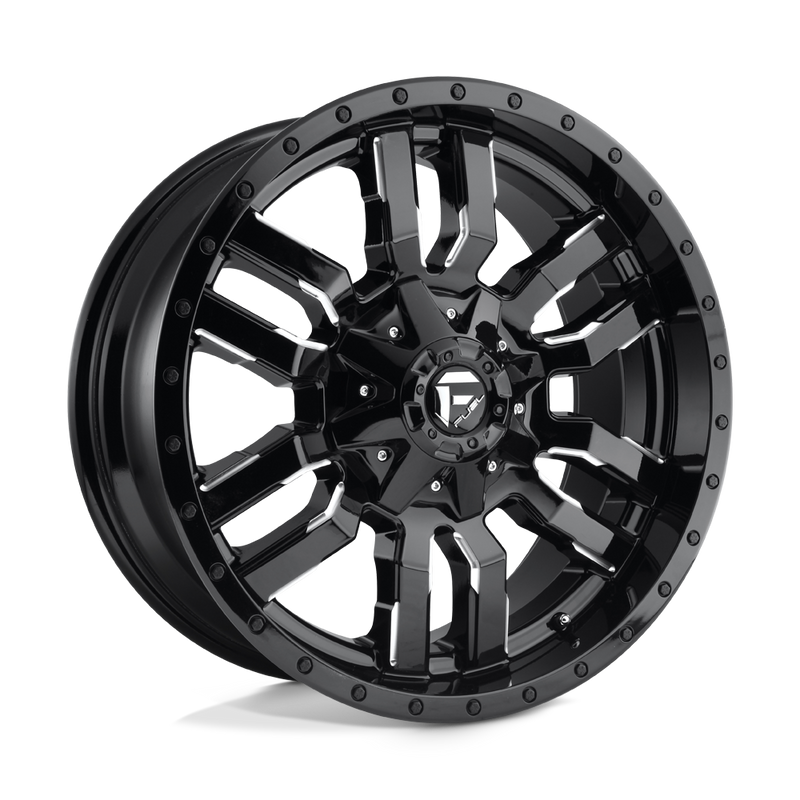

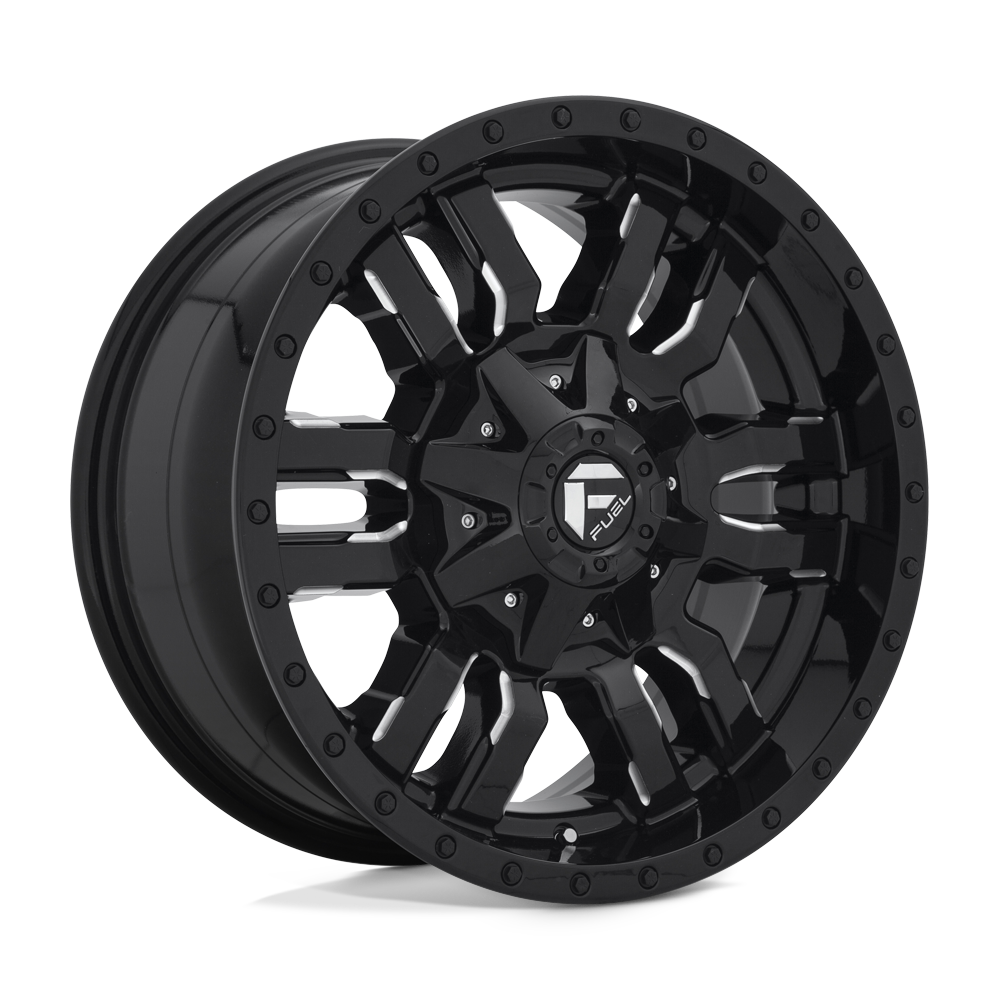

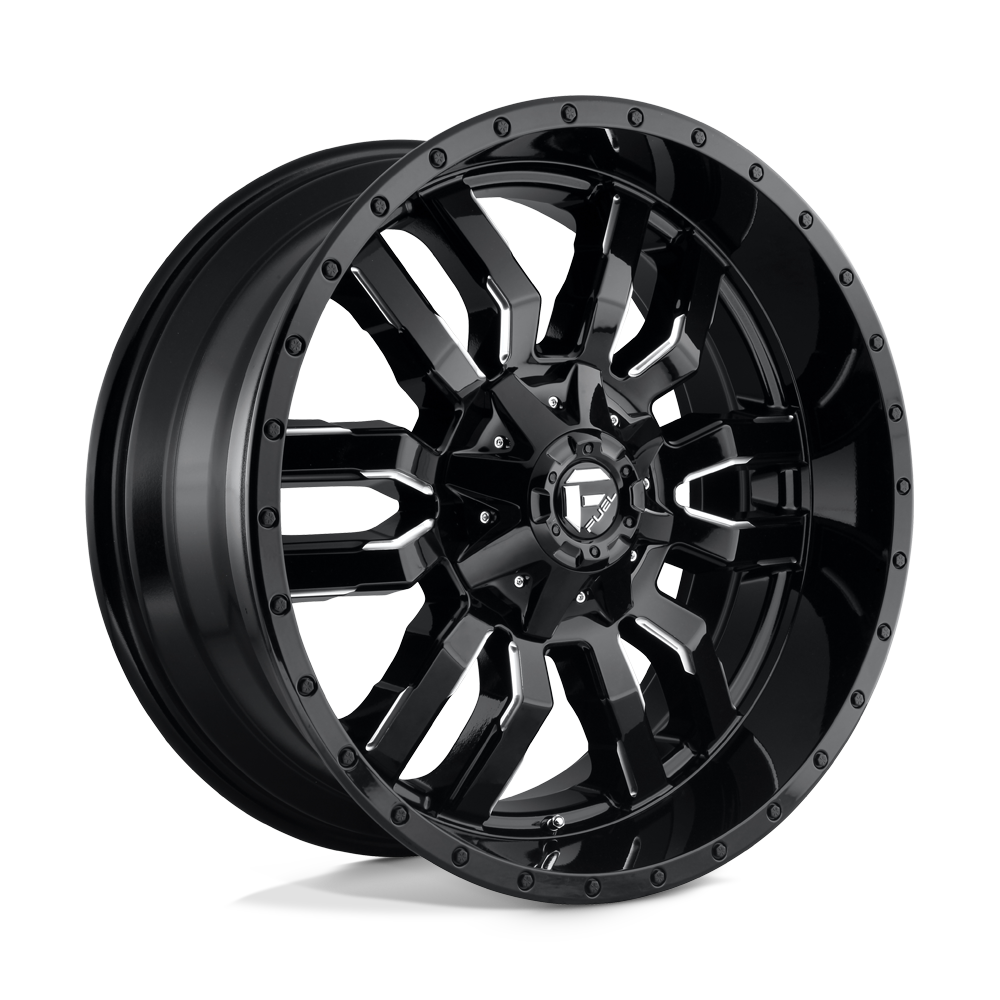

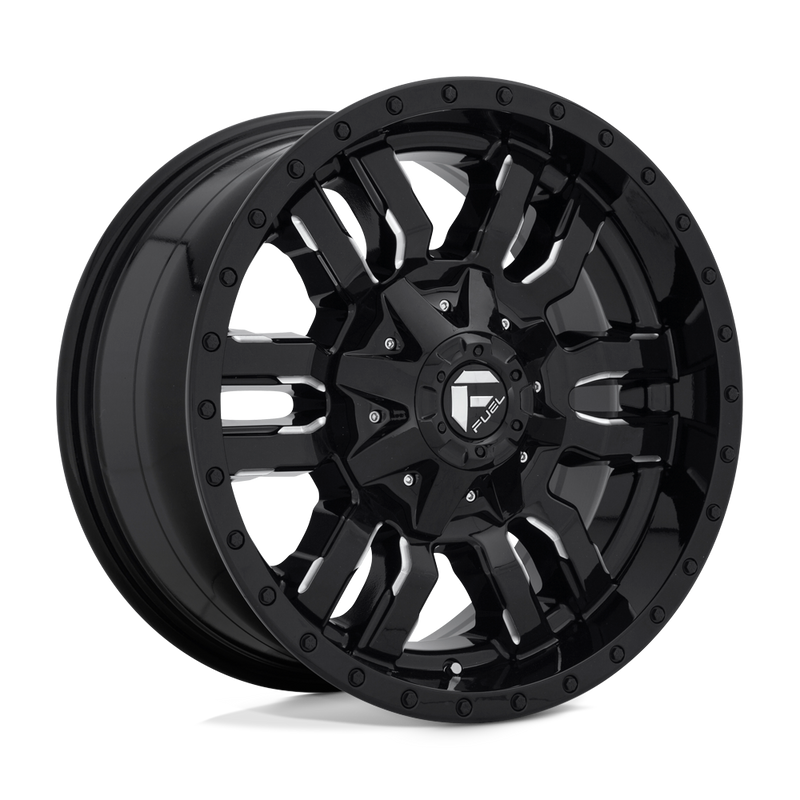

Fuel 1 Pc D595 Sledge Gloss Black Milled
Fuel 1 Pc D595 Sledge Gloss Black Milled
Regular price
$381.00 USD
Regular price
$381.00 USD
Sale price
$381.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications chart
| Size | Offset | Bolt Pattern (mm) | Bolt Pattern (in) | Centerbore (mm) | Backspacing | Load rating | Weight (lb) | Model | Color | Finish Warranty | Structural Warranty | Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17"x9" | -12mm | 5X114.3/5X127 | 5X4.5/5.0 | 78.10mm | 4.53mm | 2500 lbs (1133 kg) | 36.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 17"x9" | 01mm | 5X114.3/5X127 | 5X4.5/5.0 | 78.10mm | 5.04mm | 2500 lbs (1133 kg) | 36.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 17"x9" | 01mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.04mm | 2500 lbs (1133 kg) | 36.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 17"x9" | -12mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.53mm | 2500 lbs (1133 kg) | 36.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 17"x9" | 02mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.08mm | 2500 lbs (1133 kg) | 36.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | -12mm | 5X114.3/5X127 | 5X4.5/5.0 | 78.10mm | 4.53mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 01mm | 5X114.3/5X127 | 5X4.5/5.0 | 78.10mm | 5.04mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 01mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.04mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 20mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.79mm | 2500 lbs (1133 kg) | 39.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | -12mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.53mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 01mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.04mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 19mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.75mm | 2500 lbs (1133 kg) | 39.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 20mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.79mm | 2500 lbs (1133 kg) | 39.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 01mm | 8X165.1 | 8X6.5 | 125.10mm | 5.04mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 20mm | 8X165.1 | 8X6.5 | 125.10mm | 5.79mm | 3700 lbs (1678 kg) | 39.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 01mm | 8X170 | 8X170 | 125.10mm | 5.04mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | -12mm | 8X180 | 8X180 | 124.20mm | 4.53mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 01mm | 8X180 | 8X180 | 124.20mm | 5.04mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 18"x9" | 20mm | 8X180 | 8X180 | 124.20mm | 5.79mm | 3700 lbs (1678 kg) | 39.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 5X114.3/5X127 | 5X4.5/5.0 | 78.10mm | 4.79mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 4.79mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.79mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -19mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.75mm | 2500 lbs (1133 kg) | 36.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 8X165.1 | 8X6.5 | 125.10mm | 4.79mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 8X170 | 8X170 | 125.10mm | 4.79mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 8X180 | 8X180 | 124.20mm | 4.79mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x12" | -44mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 4.77mm | 2500 lbs (1133 kg) | 44.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x12" | -44mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.77mm | 2500 lbs (1133 kg) | 44.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x12" | -45mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.73mm | 2500 lbs (1133 kg) | 44.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x12" | -44mm | 8X180 | 8X180 | 124.20mm | 4.77mm | 3700 lbs (1678 kg) | 46.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 5X114.3/5X127 | 5X4.5/5.0 | 78.10mm | 5.04mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.04mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.79mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 19mm | 6X120/6X139.7 | 6X120/5.5 | 78.10mm | 5.75mm | 2500 lbs (1133 kg) | 37.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 6X120/6X139.7 | 6X120/5.5 | 78.10mm | 5.79mm | 2500 lbs (1133 kg) | 37.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.04mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 19mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.75mm | 2500 lbs (1133 kg) | 37.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.79mm | 2500 lbs (1133 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 8X165.1 | 8X6.5 | 125.10mm | 5.04mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 8X165.1 | 8X6.5 | 125.10mm | 5.79mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 8X170 | 8X170 | 125.10mm | 5.04mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 8X180 | 8X180 | 124.20mm | 5.79mm | 3700 lbs (1678 kg) | 40.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x10" | 10mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.89mm | 2500 lbs (1133 kg) | 50.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x10" | -18mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.79mm | 2500 lbs (1133 kg) | 49.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x10" | 10mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.89mm | 2500 lbs (1133 kg) | 45.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x10" | -18mm | 8X165.1 | 8X6.5 | 125.10mm | 4.79mm | 3700 lbs (1678 kg) | 49.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x10" | -18mm | 8X170 | 8X170 | 125.10mm | 4.79mm | 3700 lbs (1678 kg) | 49.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x10" | 10mm | 8X170 | 8X170 | 125.10mm | 5.89mm | 3700 lbs (1678 kg) | 50.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x10" | -18mm | 8X180 | 8X180 | 124.20mm | 4.79mm | 3700 lbs (1678 kg) | 49.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x10" | 10mm | 8X180 | 8X180 | 124.20mm | 5.89mm | 3700 lbs (1678 kg) | 50.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x12" | -44mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 4.77mm | 2500 lbs (1133 kg) | 52.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x12" | -45mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.73mm | 2500 lbs (1133 kg) | 52.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x12" | -44mm | 8X165.1 | 8X6.5 | 125.10mm | 4.77mm | 3700 lbs (1678 kg) | 52.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x12" | -44mm | 8X170 | 8X170 | 125.10mm | 4.77mm | 3700 lbs (1678 kg) | 52.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x12" | -44mm | 8X180 | 8X180 | 124.20mm | 4.77mm | 3700 lbs (1678 kg) | 52.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x9.5" | 19mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 6.00mm | 2500 lbs (1133 kg) | 50.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x9.5" | 20mm | 8X165.1 | 8X6.5 | 125.10mm | 6.04mm | 3700 lbs (1678 kg) | 50.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 22"x9.5" | 20mm | 8X180 | 8X180 | 124.20mm | 6.04mm | 3700 lbs (1678 kg) | 50.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 24"x14" | -75mm | 5X127/5X139.7 | 5X5.0/5.5 | 87.10mm | 4.55mm | 2500 lbs (1133 kg) | 56.20 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 26"x14" | -75mm | 5X127/5X139.7 | 5X5.0/5.5 | 87.10mm | 4.55mm | 2500 lbs (1133 kg) | 71.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 26"x14" | -75mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.55mm | 2500 lbs (1133 kg) | 71.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 26"x14" | -75mm | 8X165.1 | 8X6.5 | 125.10mm | 4.55mm | 3700 lbs (1678 kg) | 71.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
| 26"x14" | -75mm | 8X170 | 8X170 | 125.10mm | 4.55mm | 3700 lbs (1678 kg) | 71.00 lbs | D595 SLEDGE | GL-BLK-MIL | One Year | Lifetime | Cast Aluminum |
