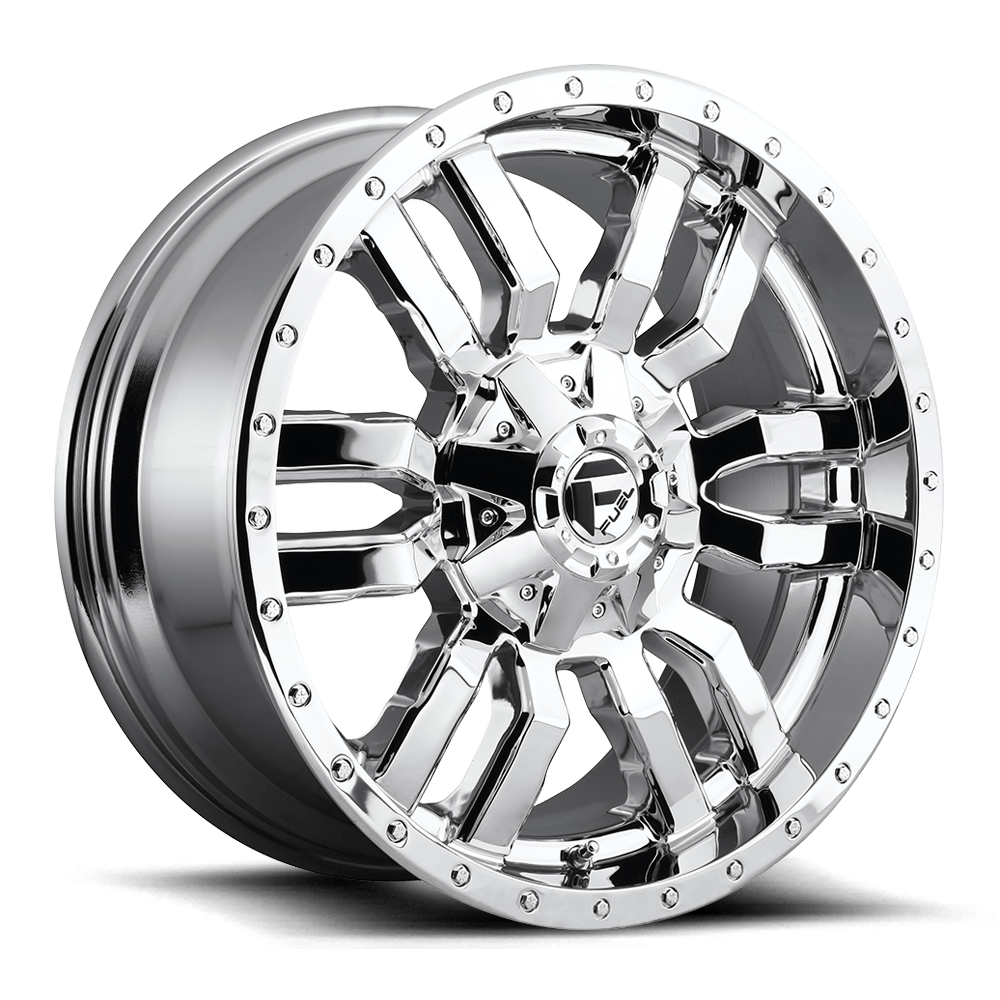

Fuel 1 Pc D631 Sledge Chrome Plated
Fuel 1 Pc D631 Sledge Chrome Plated
Regular price
$424.00 USD
Regular price
$530.00 USD
Sale price
$424.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications chart
| Size | Offset | Bolt Pattern (mm) | Bolt Pattern (in) | Centerbore (mm) | Backspacing | Load rating | Weight (lb) | Model | Color | Finish Warranty | Structural Warranty | Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20"x10" | -18mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 4.79mm | 2500 lbs (1133 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 4.79mm | 2500 lbs (1133 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 8X165.1 | 8X6.5 | 125.10mm | 4.79mm | 3700 lbs (1678 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 8X170 | 8X170 | 125.10mm | 4.79mm | 3700 lbs (1678 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x10" | -18mm | 8X180 | 8X180 | 124.20mm | 4.79mm | 3700 lbs (1678 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 01mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.04mm | 2500 lbs (1133 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 01mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.04mm | 2500 lbs (1133 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.79mm | 2500 lbs (1133 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 8X165.1 | 8X6.5 | 125.10mm | 5.04mm | 3700 lbs (1678 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 8X170 | 8X170 | 125.10mm | 5.04mm | 3700 lbs (1678 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 8X180 | 8X180 | 124.20mm | 5.04mm | 3700 lbs (1678 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 20mm | 8X180 | 8X180 | 124.20mm | 5.79mm | 3700 lbs (1678 kg) | 40.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 22"x10" | 10mm | 5X139.7/5X150 | 5X5.5/150 | 110.10mm | 5.89mm | 2500 lbs (1133 kg) | 50.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 22"x10" | 10mm | 6X135/6X139.7 | 6X135/5.5 | 106.10mm | 5.89mm | 2500 lbs (1133 kg) | 45.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
| 22"x10" | 10mm | 8X180 | 8X180 | 124.20mm | 5.89mm | 3700 lbs (1678 kg) | 50.00 lbs | D631 SLEDGE | CHR-PLATED | One Year | Lifetime | Cast Aluminum |
