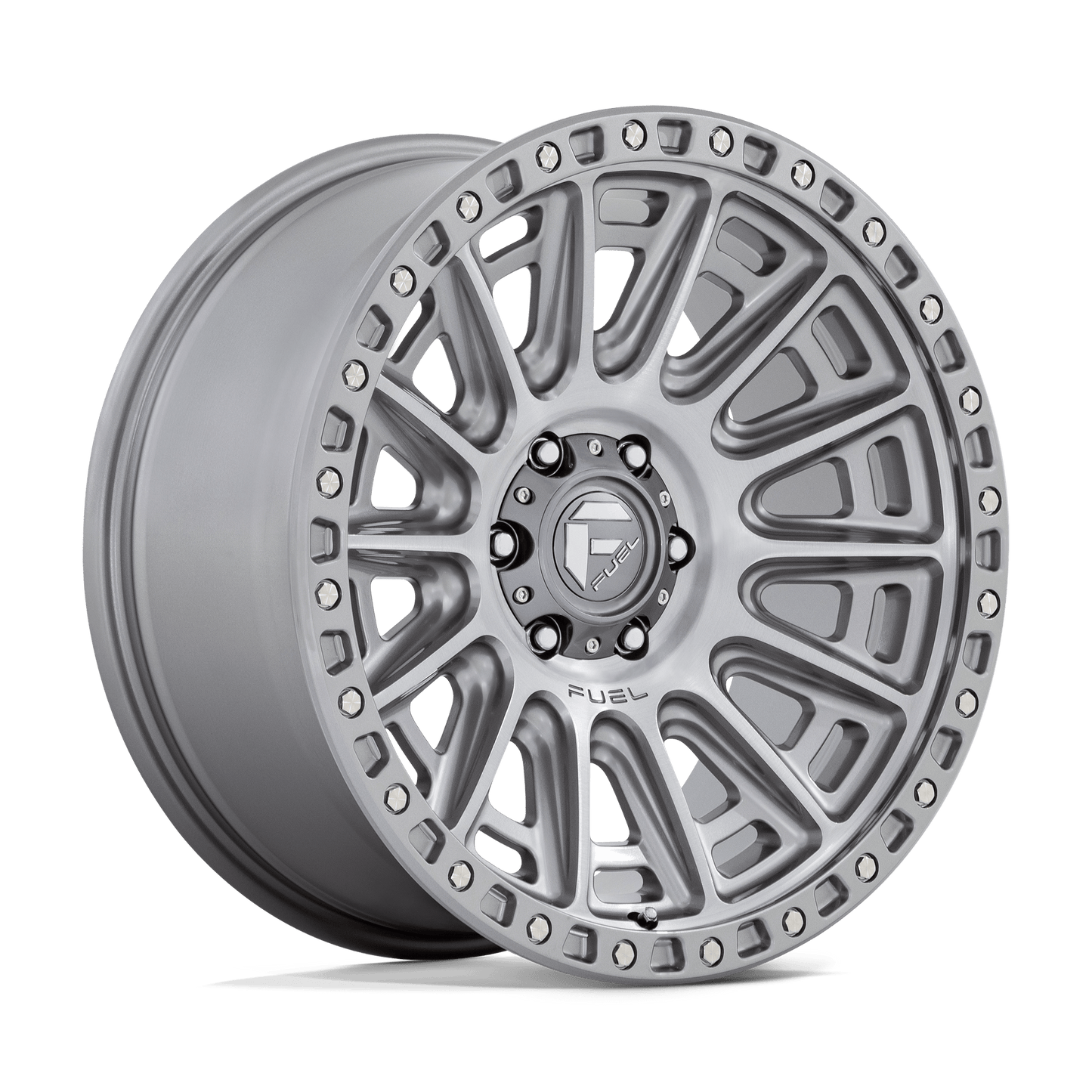

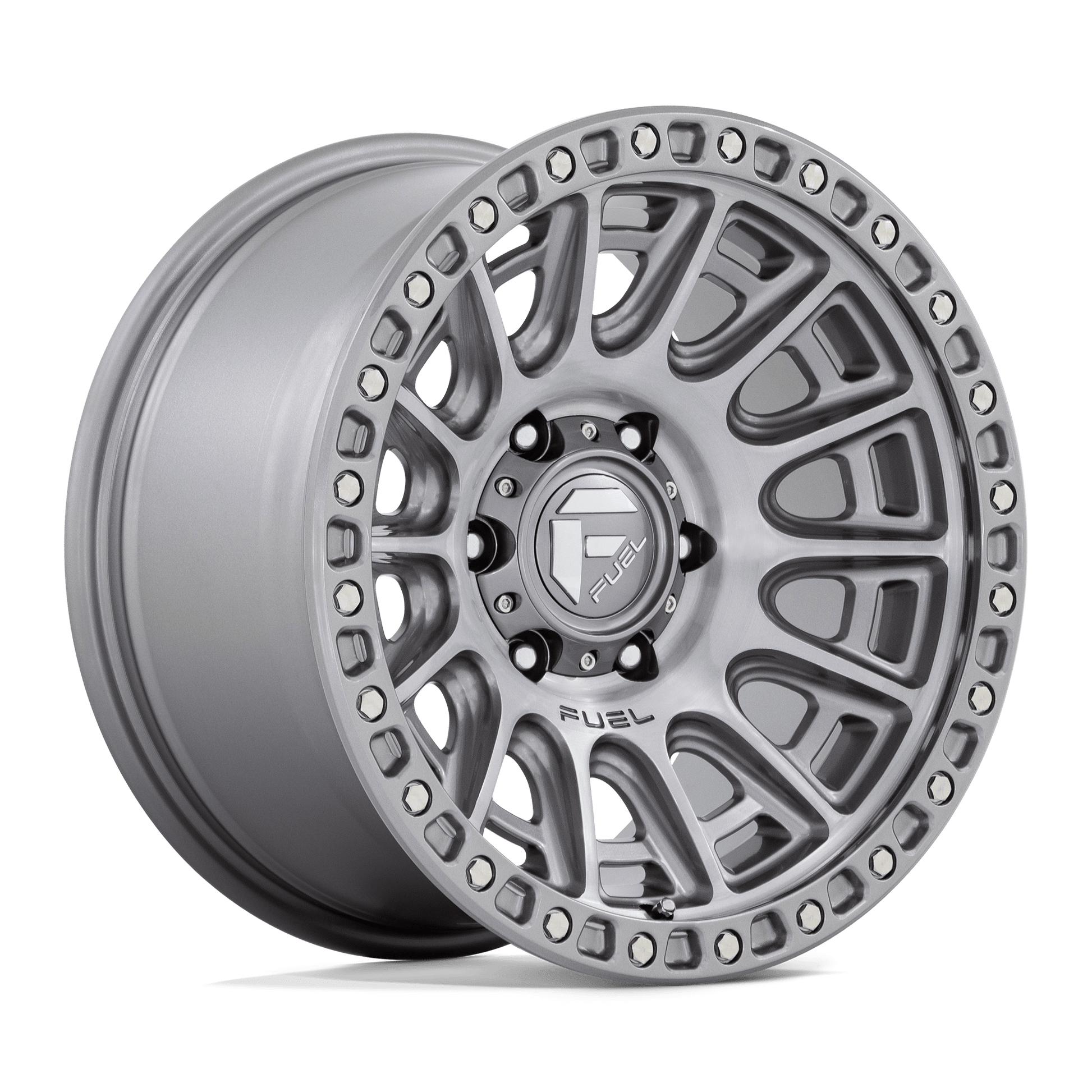

Fuel 1 Pc D833 Cycle Platinum
Fuel 1 Pc D833 Cycle Platinum
Regular price
$391.00 USD
Regular price
$391.00 USD
Sale price
$391.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications chart
| Size | Offset | Bolt Pattern (mm) | Bolt Pattern (in) | Centerbore (mm) | Backspacing | Load rating | Weight (lb) | Model | Color | Finish Warranty | Structural Warranty | Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17"x8.5" | 34mm | 5X120 | 5X120 | 65.07mm | 6.09mm | 2500 lbs (1133 kg) | 33.51 lbs | D833 CYCLE | PLTNM | Cast Aluminum | ||
| 17"x8.5" | 30mm | 5X127 | 5X5.0 | 71.60mm | 5.93mm | 2500 lbs (1133 kg) | 33.73 lbs | D833 CYCLE | PLTNM | Cast Aluminum | ||
| 17"x8.5" | 30mm | 5X130 | 5X130 | 71.50mm | 5.93mm | 2500 lbs (1133 kg) | 33.73 lbs | D833 CYCLE | PLTNM | Cast Aluminum | ||
| 17"x8.5" | 34mm | 6X114.3 | 6X4.5 | 66.06mm | 6.09mm | 2500 lbs (1133 kg) | 33.73 lbs | D833 CYCLE | PLTNM | Cast Aluminum | ||
| 17"x8.5" | 34mm | 6X120 | 6X120 | 66.90mm | 6.09mm | 2500 lbs (1133 kg) | 33.73 lbs | D833 CYCLE | PLTNM | Cast Aluminum | ||
| 17"x8.5" | 25mm | 6X135 | 6X135 | 87.10mm | 5.73mm | 2500 lbs (1133 kg) | 34.17 lbs | D833 CYCLE | PLTNM | Cast Aluminum | ||
| 17"x8.5" | 25mm | 6X139.7 | 6X5.5 | 106.10mm | 5.73mm | 2500 lbs (1133 kg) | 33.51 lbs | D833 CYCLE | PLTNM | Cast Aluminum | ||
| 17"x9" | -12mm | 5X127 | 5X5.0 | 71.50mm | 4.53mm | 2500 lbs (1133 kg) | 34.90 lbs | D833 CYCLE | PLTNM | One Year | Lifetime | Cast Aluminum |
| 17"x9" | 1mm | 5X127 | 5X5.0 | 71.50mm | 5.04mm | 2500 lbs (1133 kg) | 33.10 lbs | D833 CYCLE | PLTNM | One Year | Lifetime | Cast Aluminum |
| 17"x9" | -12mm | 6X139.7 | 6X5.5 | 106.10mm | 4.53mm | 2500 lbs (1133 kg) | 34.12 lbs | D833 CYCLE | PLTNM | One Year | Lifetime | Cast Aluminum |
| 17"x9" | 1mm | 6X139.7 | 6X5.5 | 106.10mm | 5.04mm | 2500 lbs (1133 kg) | 32.25 lbs | D833 CYCLE | PLTNM | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 5X127 | 5X5.0 | 71.50mm | 5.04mm | 2500 lbs (1133 kg) | 34.20 lbs | D833 CYCLE | PLTNM | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 6X135 | 6X135 | 87.10mm | 5.04mm | 2500 lbs (1133 kg) | 34.20 lbs | D833 CYCLE | PLTNM | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 1mm | 6X139.7 | 6X5.5 | 106.10mm | 5.04mm | 2500 lbs (1133 kg) | 34.20 lbs | D833 CYCLE | PLTNM | One Year | Lifetime | Cast Aluminum |
