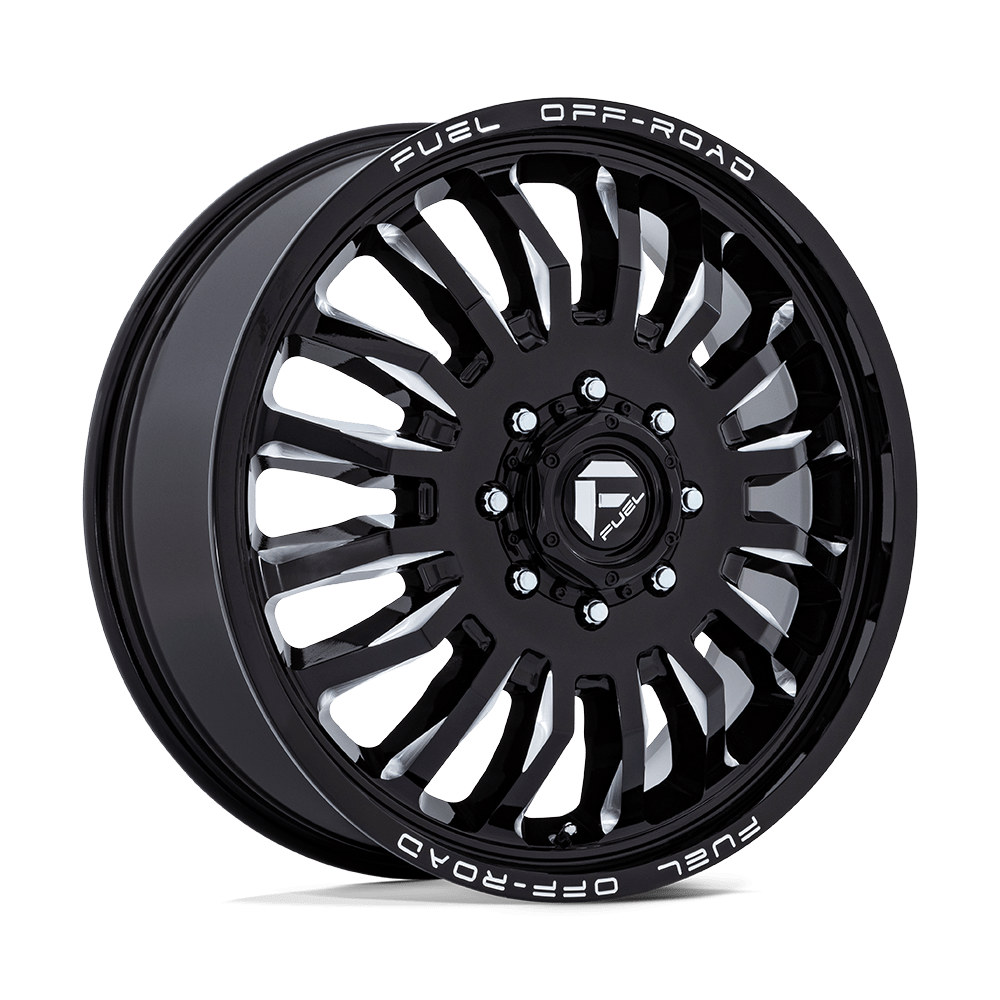

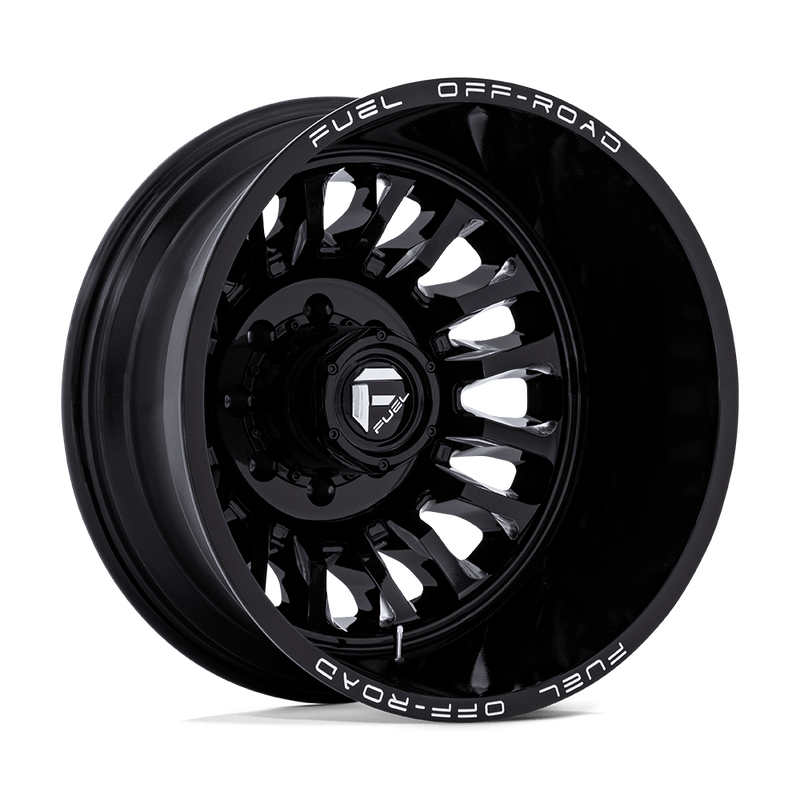

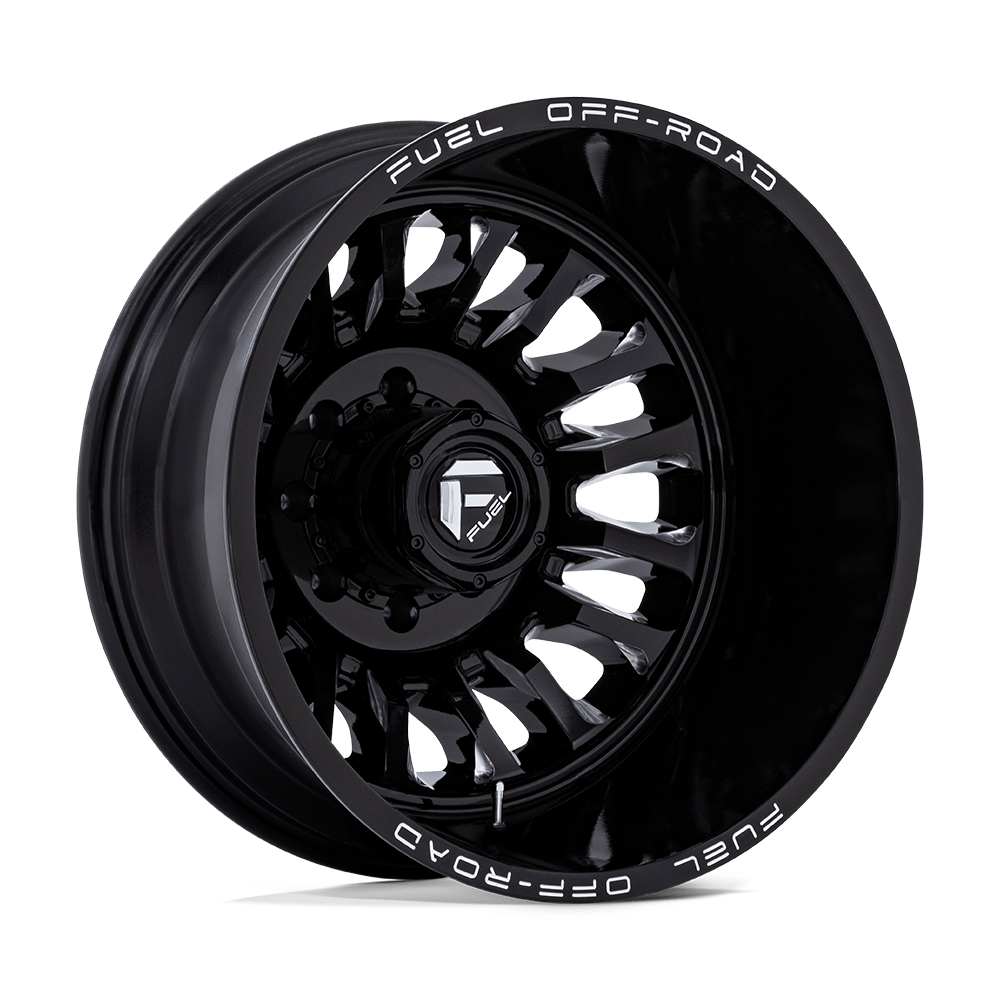

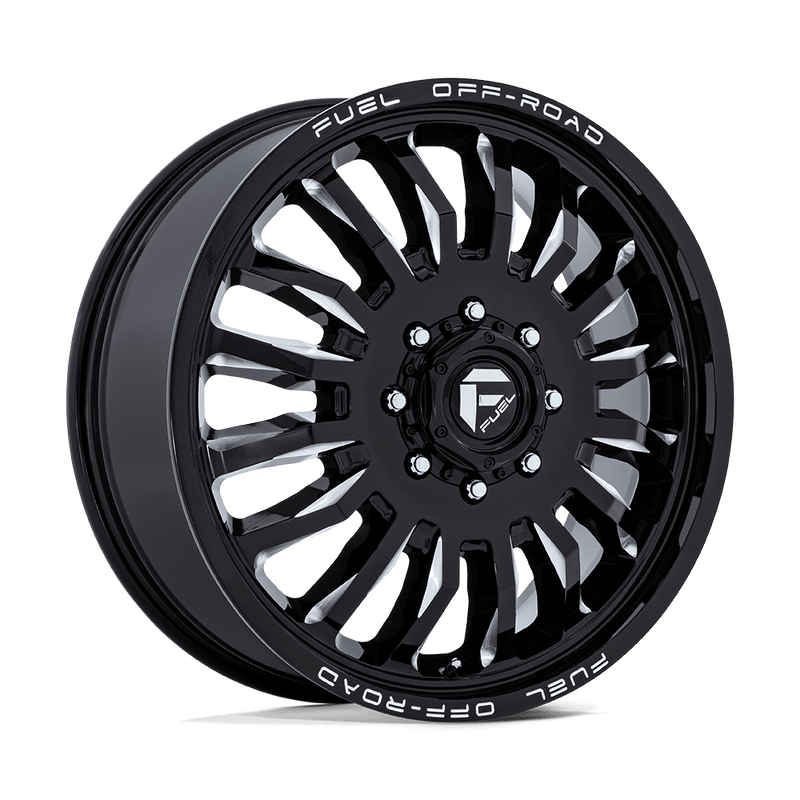

Fuel 1 Pc D868 Arc Dually Gloss Black Milled
Fuel 1 Pc D868 Arc Dually Gloss Black Milled
Regular price
$679.00 USD
Regular price
$679.00 USD
Sale price
$679.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications chart
| Size | Offset | Bolt Pattern (mm) | Bolt Pattern (in) | Centerbore (mm) | Backspacing | Load rating | Weight (lb) | Model | Color | Finish Warranty | Structural Warranty | Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20"x8.25" | -201mm | 8X165.1 | 8X6.5 | 117.00mm | -3.29mm | 3000 lbs (1360 kg) | 48.95 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 20"x8.25" | 104mm | 8X165.1 | 8X6.5 | 117.00mm | 8.72mm | 3000 lbs (1360 kg) | 44.30 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 20"x8.25" | 104mm | 8X165.1 | 8X6.5 | 121.50mm | 8.72mm | 3000 lbs (1360 kg) | 44.10 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 20"x8.25" | -201mm | 8X170 | 8X170 | 125.10mm | -3.29mm | 3000 lbs (1360 kg) | 48.51 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 20"x8.25" | -227mm | 8X170 | 8X170 | 125.10mm | -4.31mm | 3000 lbs (1360 kg) | 53.14 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 20"x8.25" | 104mm | 8X170 | 8X170 | 125.10mm | 8.72mm | 3000 lbs (1360 kg) | 43.90 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 20"x8.25" | -201mm | 8X200 | 8X200 | 142.00mm | -3.29mm | 3000 lbs (1360 kg) | 47.63 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 20"x8.25" | -227mm | 8X200 | 8X200 | 142.00mm | -4.31mm | 3000 lbs (1360 kg) | 51.82 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 20"x8.25" | 104mm | 8X200 | 8X200 | 142.00mm | 8.72mm | 3000 lbs (1360 kg) | 43.20 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 20"x8.25" | -201mm | 8X210 | 8X210 | 154.30mm | -3.29mm | 3000 lbs (1360 kg) | 46.97 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 20"x8.25" | 104mm | 8X210 | 8X210 | 154.30mm | 8.72mm | 3000 lbs (1360 kg) | 42.80 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | -201mm | 8X165.1 | 8X6.5 | 117.00mm | -3.29mm | 3000 lbs (1360 kg) | 54.23 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | 104mm | 8X165.1 | 8X6.5 | 117.00mm | 8.72mm | 3000 lbs (1360 kg) | 50.50 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | 104mm | 8X165.1 | 8X6.5 | 121.50mm | 8.72mm | 3000 lbs (1360 kg) | 50.30 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | -201mm | 8X170 | 8X170 | 125.10mm | -3.29mm | 3000 lbs (1360 kg) | 53.79 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | -227mm | 8X170 | 8X170 | 125.10mm | -4.31mm | 3000 lbs (1360 kg) | 58.64 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | 104mm | 8X170 | 8X170 | 125.10mm | 8.72mm | 3000 lbs (1360 kg) | 50.10 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | -201mm | 8X200 | 8X200 | 142.00mm | -3.29mm | 3000 lbs (1360 kg) | 52.91 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | -227mm | 8X200 | 8X200 | 142.00mm | -4.31mm | 3000 lbs (1360 kg) | 57.10 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | 104mm | 8X200 | 8X200 | 142.00mm | 8.72mm | 3000 lbs (1360 kg) | 49.40 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | -201mm | 8X210 | 8X210 | 154.30mm | -3.29mm | 3000 lbs (1360 kg) | 52.02 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum | ||
| 22"x8.25" | 104mm | 8X210 | 8X210 | 154.30mm | 8.72mm | 3000 lbs (1360 kg) | 49.00 lbs | D868 ARC DUALLY | G-BLK-MILL | Cast Aluminum |
