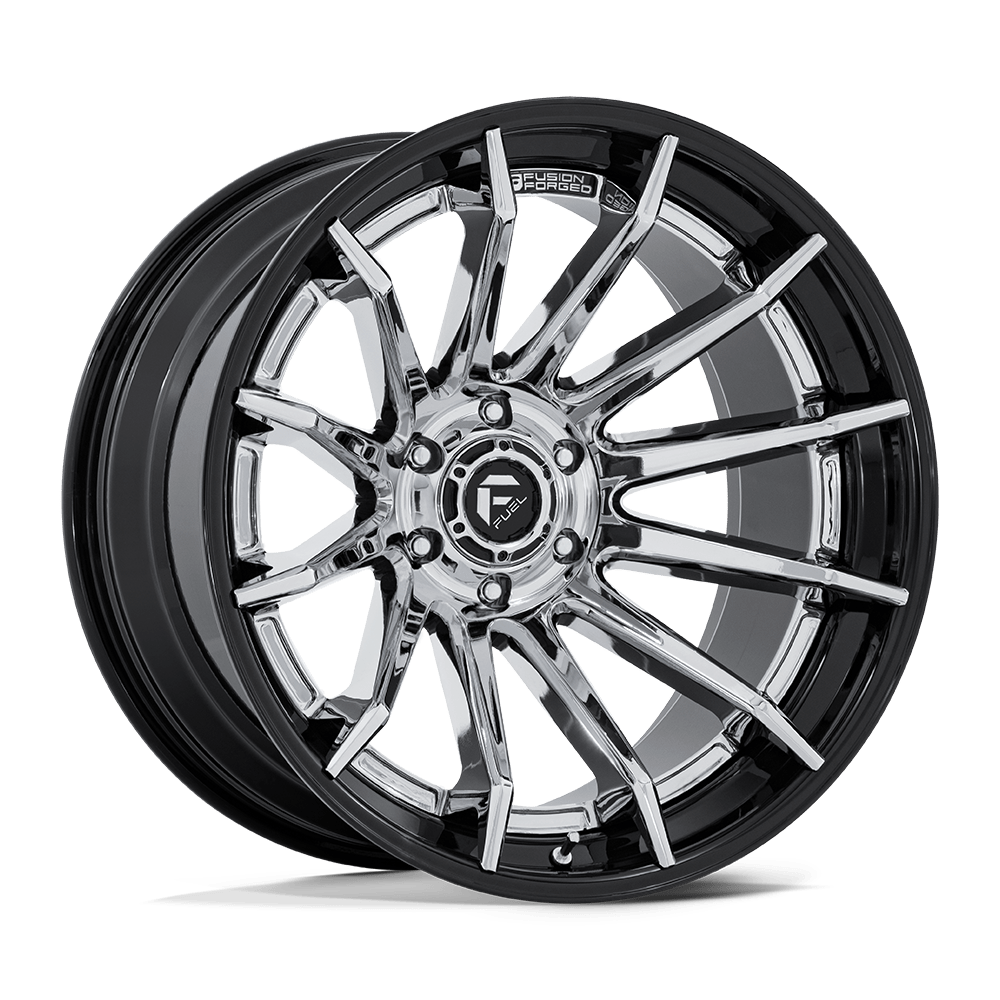

Fuel 1 Pc Fc403 Burn Chrome With Gloss Black Lip
Fuel 1 Pc Fc403 Burn Chrome With Gloss Black Lip
Regular price
$708.00 USD
Regular price
$708.00 USD
Sale price
$708.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications chart
| Size | Offset | Bolt Pattern (mm) | Bolt Pattern (in) | Centerbore (mm) | Backspacing | Load rating | Weight (lb) | Model | Color | Finish Warranty | Structural Warranty | Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20"x10" | -18mm | 5X127 | 5X5.0 | 71.50mm | 4.79mm | 2500 lbs (1133 kg) | 35.64 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 20"x10" | -18mm | 6X135 | 6X135 | 87.10mm | 4.79mm | 2500 lbs (1133 kg) | 35.20 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 20"x10" | -18mm | 6X139.7 | 6X5.5 | 106.10mm | 4.79mm | 2500 lbs (1133 kg) | 34.76 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 20"x9" | 1mm | 5X127 | 5X5.0 | 71.50mm | 5.04mm | 2500 lbs (1133 kg) | 36.10 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 20"x9" | 1mm | 6X135 | 6X135 | 87.10mm | 5.04mm | 2500 lbs (1133 kg) | 35.64 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 20"x9" | 1mm | 6X139.7 | 6X5.5 | 106.10mm | 5.04mm | 2500 lbs (1133 kg) | 35.20 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 22"x10" | -18mm | 5X127 | 5X5.0 | 71.50mm | 4.79mm | 2500 lbs (1133 kg) | 41.80 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 22"x10" | -18mm | 6X135 | 6X135 | 87.10mm | 4.79mm | 2500 lbs (1133 kg) | 41.36 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 22"x10" | -18mm | 6X139.7 | 6X5.5 | 106.10mm | 4.79mm | 2500 lbs (1133 kg) | 40.92 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 22"x12" | -44mm | 5X127 | 5X5.0 | 71.50mm | 4.77mm | 2500 lbs (1133 kg) | 45.32 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 22"x12" | -44mm | 6X135 | 6X135 | 87.10mm | 4.77mm | 2500 lbs (1133 kg) | 44.88 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 22"x12" | -44mm | 6X139.7 | 6X5.5 | 106.10mm | 4.77mm | 2500 lbs (1133 kg) | 44.44 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 24"x12" | -44mm | 5X127 | 5X5.0 | 71.50mm | 4.77mm | 2500 lbs (1133 kg) | 50.16 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 24"x12" | -44mm | 6X135 | 6X135 | 87.10mm | 4.77mm | 2500 lbs (1133 kg) | 49.72 lbs | FC403 BURN | CHR G-BLK | Fusion Forged | ||
| 24"x12" | -44mm | 6X139.7 | 6X5.5 | 106.10mm | 4.77mm | 2500 lbs (1133 kg) | 49.28 lbs | FC403 BURN | CHR G-BLK | Fusion Forged |
