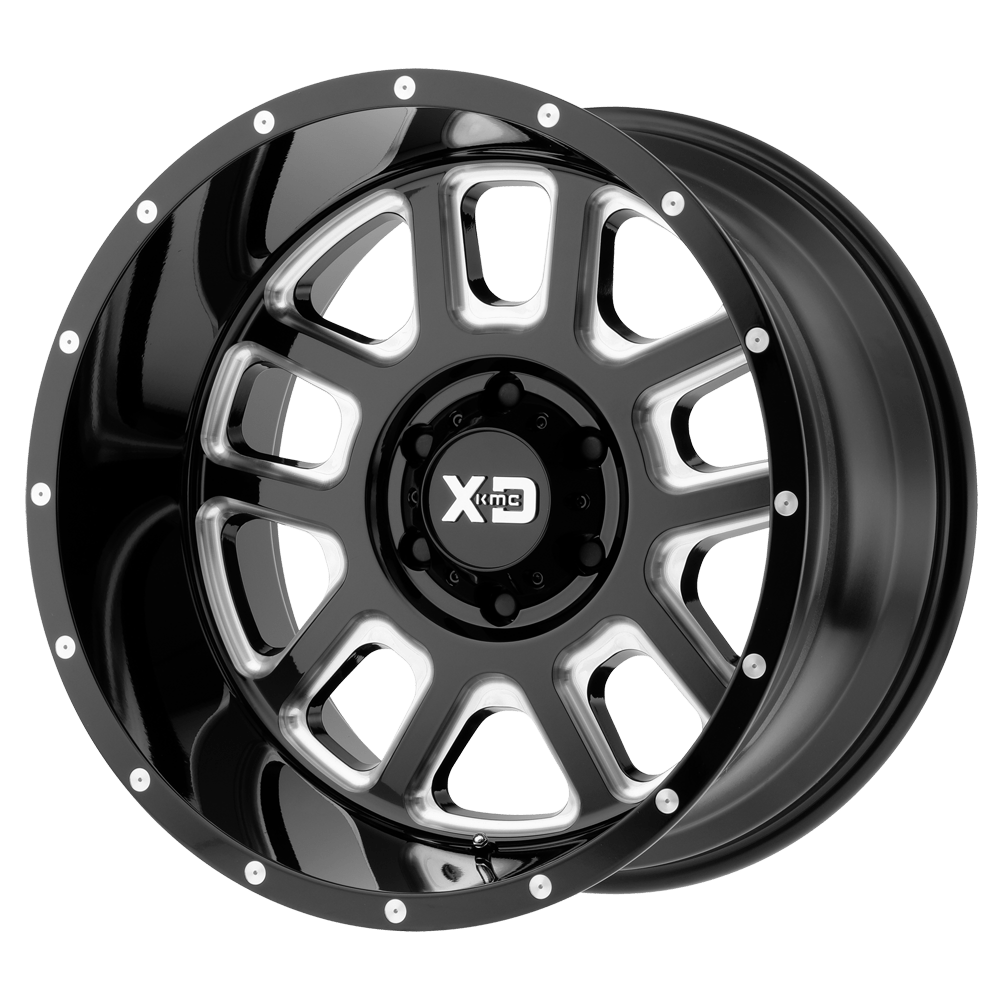

Xd Xd828 Delta Gloss Black Milled
Xd Xd828 Delta Gloss Black Milled
Regular price
$186.40 USD
Regular price
$233.00 USD
Sale price
$186.40 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications chart
| Size | Offset | Bolt Pattern (mm) | Bolt Pattern (in) | Centerbore (mm) | Backspacing | Load rating | Weight (lb) | Model | Color | Finish Warranty | Structural Warranty | Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20"x12" | -44mm | 5X127 | 5X5.0 | 72.56mm | 4.77mm | 2500 lbs (1133 kg) | 44.00 lbs | XD828 DELTA | G-BLK MILL | One Year | Lifetime | Cast Aluminum |
| 20"x12" | -44mm | 6X139.7 | 6X5.5 | 106.10mm | 4.77mm | 2500 lbs (1133 kg) | 43.12 lbs | XD828 DELTA | G-BLK MILL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | -12mm | 5X127 | 5X5.0 | 72.56mm | 4.53mm | 2500 lbs (1133 kg) | 38.50 lbs | XD828 DELTA | G-BLK MILL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 00mm | 5X127 | 5X5.0 | 72.56mm | 5.00mm | 2500 lbs (1133 kg) | 38.82 lbs | XD828 DELTA | G-BLK MILL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | -12mm | 6X139.7 | 6X5.5 | 106.10mm | 4.53mm | 2500 lbs (1133 kg) | 37.40 lbs | XD828 DELTA | G-BLK MILL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 18mm | 6X139.7 | 6X5.5 | 106.10mm | 5.71mm | 2500 lbs (1133 kg) | 33.66 lbs | XD828 DELTA | G-BLK MILL | One Year | Lifetime | Cast Aluminum |
| 20"x9" | 00mm | 8X170 | 8X170 | 125.10mm | 5.00mm | 3640 lbs (1651 kg) | 37.54 lbs | XD828 DELTA | G-BLK MILL | One Year | Lifetime | Cast Aluminum |
| 22"x10" | -18mm | 8X170 | 8X170 | 125.10mm | 4.79mm | 3640 lbs (1651 kg) | 44.66 lbs | XD828 DELTA | G-BLK MILL | One Year | Lifetime | Cast Aluminum |
| 22"x14" | -76mm | 6X139.7 | 6X5.5 | 106.10mm | 4.51mm | 2500 lbs (1133 kg) | 49.28 lbs | XD828 DELTA | G-BLK MILL | One Year | Lifetime | Cast Aluminum |
| 22"x14" | -76mm | 8X170 | 8X170 | 125.10mm | 4.51mm | 3640 lbs (1651 kg) | 49.28 lbs | XD828 DELTA | G-BLK MILL | One Year | Lifetime | Cast Aluminum |
